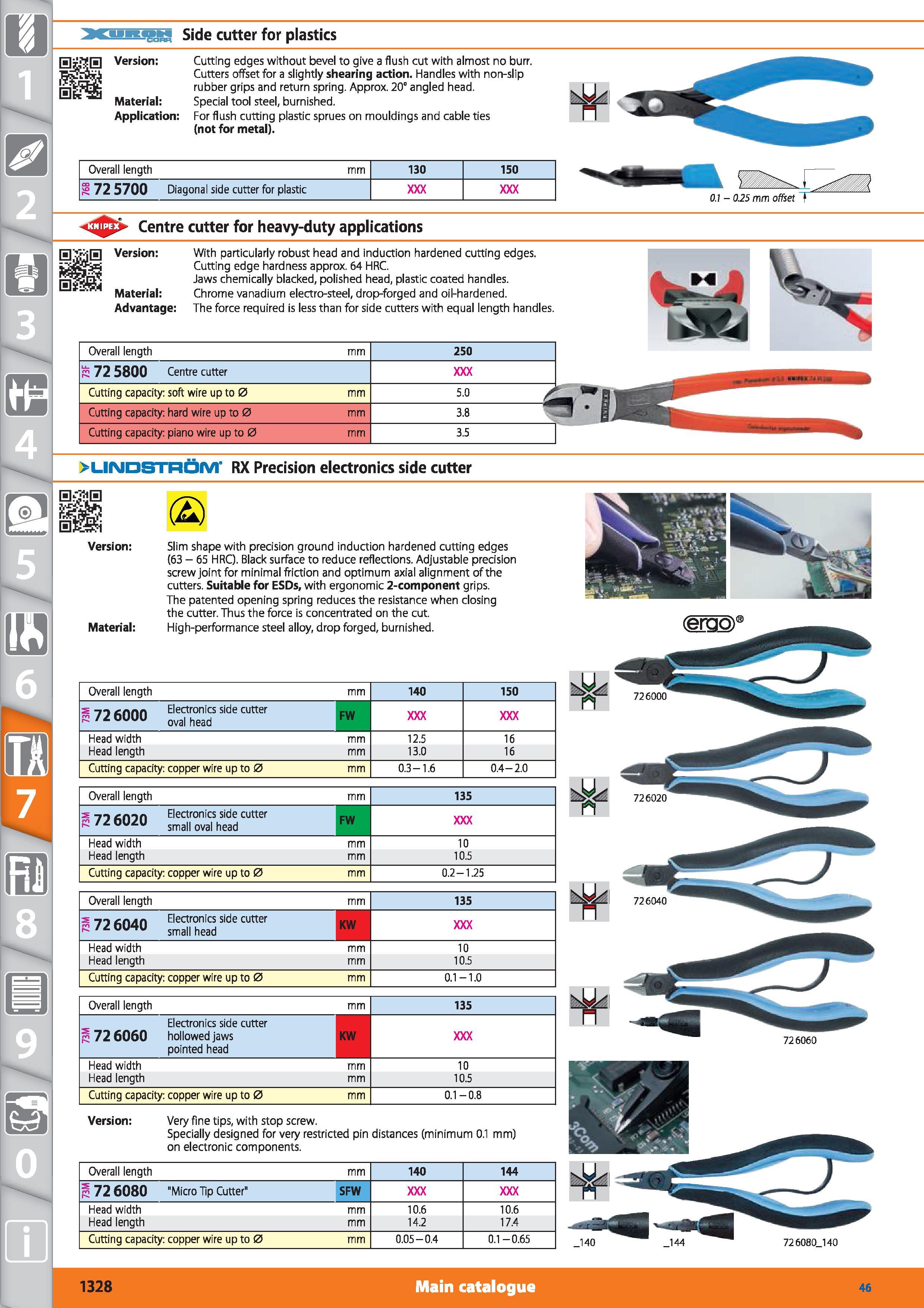

1 MBS Side cutter for plastics Version Cutting edges without bevel to give a flush cut with almost no burr. Cutters offset for a slightly shearing action. Handles with non-slip rubber grips and return spring. Approx. 20° angled head. Material Special tool steel, burnished. Application For flush cutting plastic sprues on mouldings and cable ties (not for metal). Overall length mm 130 150 72 5700 Diagonal side cutter for plastic 0.1 - 0.25 mm offset T Centre cutter for heavy-duty applications Material Advantage With particularly robust head and induction hardened cutting edges. Cutting edge hardness approx. 64 HRC. Jaws chemically blacked, polished head, plastic coated handles. Chrome vanadium electro-steel, drop-forged and oil-hardened. The force required is less than for side cutters with equal length handles. Overall length mm 250 H 72 5800 Centre cutter Cutting capacity soft wire up to 0 mm 5.0 Cutting capacity hard wire up to 0 mm 3.8 Cutting capacity piano wire up to 0 mm 3.5 'LINDSTROM' RX Precision electronics side cutter (2) Version Material Slim shape with precision ground induction hardened cutting edges (63 - 65 HRC). Black surface to reduce reflections. Adjustable precision screw joint for minimal friction and optimum axial alignment of the cutters. Suitable for ESDs, with ergonomic 2-component grips. The patented opening spring reduces the resistance when closing the cutter. Thus the force is concentrated on the cut. High-performance steel alloy, drop forged, burnished. Overall length mm 140 150 s - nnn Electronics side cutter K 72 6000 Qva head FW Head width mm 12.5 16 Head length mm 13.0 16 Cutting capacity copper wire up to 0 mm 0.3-1.6 0.4-2.0 Overall length mm 135 s -7i /nn Electronics side cutter R 72 6020 snnaN ova head FW Head width mm 10 Head length mm 10.5 Cutting capacity copper wire up to 0 mm 0.2-1.25 Overall length mm 135 72 6040 “cs side cutter small head KW Head width mm 10 Head length mm 10.5 Cutting capacity copper wire up to 0 mm O 1 O Overall length mm 135 j 72 6060 Electronics side cutter hollowed jaws pointed head KW Head width mm 10 Head length mm 10.5 Cutting capacity copper wire up to 0 mm 0.1- -0.8 Version Very fine tips, with stop screw. Specially designed for very restricted pin distances (minimum 0.1 mm) on electronic components. Overall length mm 140 144 j 72 6080 "Micro Tip Cutter" SFW Head width mm 10.6 10.6 Head length mm 14.2 17.4 Cutting capacity copper wire up to 0 mm 0.05-0.4 0.1 -0.65 1328 Main catalogue 726060 46 726000
