1325 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1325

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1325 1325 ENG Lab2u

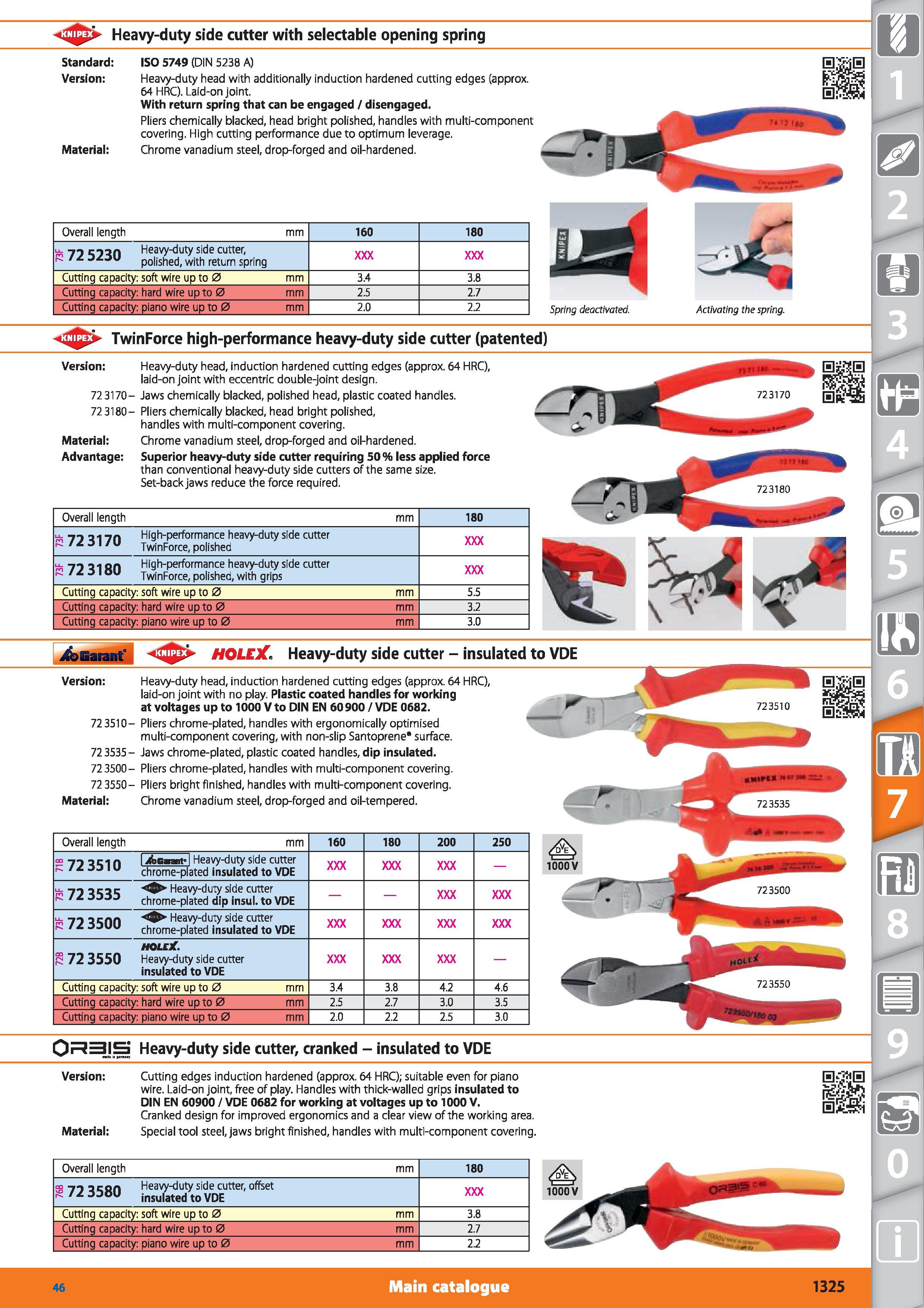

<3 > Heavy-duty side cutter with selectable opening spring Standard Version Material ISO 5749 (DIN 5238 A) Heavy-duty head with additionally induction hardened cutting edges (approx. 64 HRC). Laid-on joint. With return spring that can be engaged / disengaged. Pliers chemically blacked, head bright polished, handles with multi-component covering. High cutting performance due to optimum leverage. Chrome vanadium steel, drop-forged and oil-hardened. Overall length mm 160 180 ll rnnft Heavy-duty side cutter, 3 3U polished, with return spring Cutting capacity soft wire up to 0 mm 3.4 3.8 Cutting capacity hard wire up to 0 mm 2.5 2.7 Cutting capacity piano wire up to 0 mm 2.0 2.2 TwinForce high-performance heavy-duty side cutter (patented) Version Heavy-duty head, induction hardened cutting edges (approx. 64 HRC), laid-on joint with eccentric double-joint design. 72 3170- Jaws chemically blacked, polished head, plastic coated handles. 72 3180- Pliers chemically blacked, head bright polished, handles with multi-component covering. Material Chrome vanadium steel, drop-forged and oil-hardened. Advantage Superior heavy-duty side cutter requiring 50% less applied force than conventional heavy-duty side cutters of the same size. Set-back jaws reduce the force required. Overall length mm 180 S; 77 si 7n High-performance heavy-duty side cutter r' TwinForce, polished S 77 31RO High-performance heavy-duty side cutter TwinForce, polished, with grips Cutting capacity soft wire up to 0 mm 5.5 Cutting capacity hard wire up to 0 mm 3.2 Cutting capacity piano wire up to 0 mm 3.0 m 1 Or 3IS Heavy-duty side cutter, cranked - insulated to VDE Version Material Cutting edges induction hardened (approx. 64 HRC); suitable even for piano wire. Laid-on joint, free of play. Handles with thick-walled grips insulated to DIN EN 60900 / VDE 0682 for working at voltages up to 1000 V. Cranked design for improved ergonomics and a clear view of the working area. Special tool steel, jaws bright finished, handles with multi-component covering. Overall length mm 180 co 71 a con Heavy-duty side cutter, offset 33QU insulated to VDE Cutting capacity soft wire up to 0 mm 3.8 Cutting capacity hard wire up to 0 mm 2.7 Cutting capacity piano wire up to 0 mm 2.2 /bGaranf Overall length 723510 I ifccraf Heavy-duty side cutter chrome-plated insulated to VDE ft 72 3535 Heavy-duty side cutter chrome-plated dip insul. to VDE ft 72 3500 Heavy-duty side cutter chrome-plated insulated to VDE HOLEX \ 72 3550 Heavy-duty side cutter insulated to VDE Cutting capacity soft wire up to 0 Cutting capacity hard wire up to 0 Cutting capacity piano wire up to 0 723500 723550 1 HOLEX Heavy-duty side cutter - insulated Version Heavy-duty head, induction hardened cutting edges (approx. 64 HRC), laid-on joint with no play. Plastic coated handles for working at voltages up to 1000 V to DIN EN 60900 / VDE 0682. 72 3510- Pliers chrome-plated, handles with ergonomically optimised multi-component covering, with non-slip Santoprene surface. 72 3535 - Jaws chrome-plated, plastic coated handles, dip insulated. 72 3500- Pliers chrome-plated, handles with multi-component covering. 72 3550- Pliers bright finished, handles with multi-component covering. Material Chrome vanadium steel, drop-forged and oil-tempered. to VDE 723535 Main catalogue Hoffmann Group 46 1325
