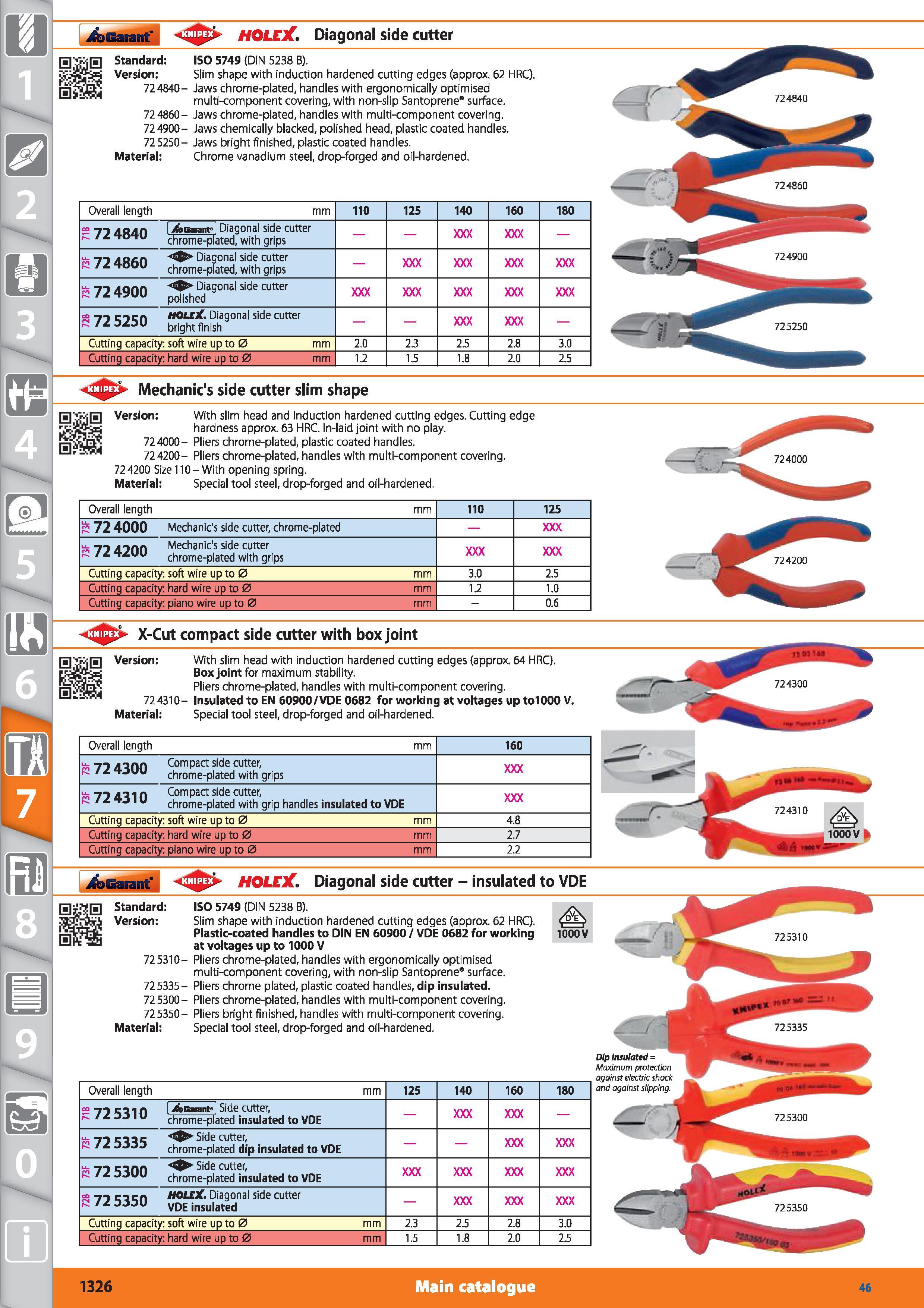

Garant HOLEX Diagonal side cutter Standard ISO 5749 (DIN 5238 B). Version Slim shape with induction hardened cutting edges (approx. 62 HRC). 724840- Jaws chrome-plated, handles with ergonomically optimised multi-component covering, with non-slip Santoprene surface. 724860- Jaws chrome-plated, handles with multi-component covering. 724900- Jaws chemically blacked, polished head, plastic coated handles. 725250- Jaws bright finished, plastic coated handles. Material Chrome vanadium steel, drop-forged and oil-hardened. Overall length mm 110 125 140 160 180 “724840 j&Gnnt-l Diagonal side cutter chrome-plated, with grips ft 72 4860 Diagonal side cutter chrome-plated, with grips ft 72 4900 Diagonal side cutter polished a 725250 HOLBC. Diagonal side cutter bright finish Cutting capacity soft wire up to 0 mm 2.0 2.3 2.5 2.8 3.0 Cutting capacity hard wire up to 0 mm 1.2 1.5 1.8 2.0 2.5 Mechanic's side cutter slim shape g Version With slim head and induction hardened cutting edges. Cutting edge hardness approx. 63 HRC. In-laid joint with no play. 724000- Pliers chrome-plated, plastic coated handles. 724200- Pliers chrome-plated, handles with multi-component covering. 724200 Size 110 With opening spring. Material Special tool steel, drop-forged and oil-hardened. Overall length mm 110 125 ft 72 4000 Mechanic's side cutter, chrome-plated S 77 Ajnn Mechanic's side cutter chrome-plated with grips Cutting capacity soft wire up to 0 mm 3.0 2.5 Cutting capacity hard wire up to 0 mm 1.2 1.0 Cutting capacity piano wire up to 0 mm - 0.6 X-Cut compact side cutter with box joint g Version With slim head with induction hardened cutting edges (approx. 64 HRC). Box joint for maximum stability. Pliers chrome-plated, handles with multi-component covering. 724310- Insulated to EN 60900/VDE 0682 for working at voltages up tolOOO V. Material Special tool steel, drop-forged and oil-hardened. Overall length mm 160 72 430Q Compact side cutter, chrome-plated with grips jj mo I q Compact side cutter, chrome-plated with grip handles insulated to VDE Cutting capacity soft wire up to 0 mm 4.8 Cutting capacity hard wire up to 0 mm 2.7 Cutting capacity piano wire up to 0 mm 2.2 blaaitfbrt HOLEX Diagonal side cutter - insulated to VDE Standard ISO 5749 (DIN 5238 B). Version Slim shape with induction hardened cutting edges (approx. 62 HRC). Plastic-coated handles to DIN EN 60900 / VDE 0682 for working at voltages up to 1000 V 725310- Pliers chrome-plated, handles with ergonomically optimised multi-component covering, with non-slip Santoprene surface. 725335- Pliers chrome plated, plastic coated handles, dip insulated. 725300- Pliers chrome-plated, handles with multi-component covering. 725350- Pliers bright finished, handles with multi-component covering. Material Special tool steel, drop-forged and oil-hardened. 1000V Overall length mm 125 140 160 180 725310 j&Gnnf Side cutter, chrome-plated insulated to VDE ft 725335 Side cutter, chrome-plated dip insulated to VDE ft 725300 Side cutter, chrome-plated insulated to VDE a 725350 HOLEX Diagonal side cutter VDE insulated Cutting capacity soft wire up to 0 mm 2.3 2.5 2.8 3.0 Cutting capacity hard wire up to 0 mm 1.5 1.8 2.0 2.5 725335 Dip insulated Maximum protection against electric shock and against slipping. 725300 725350 1326 Main catalogue Hoffmann Group 46
