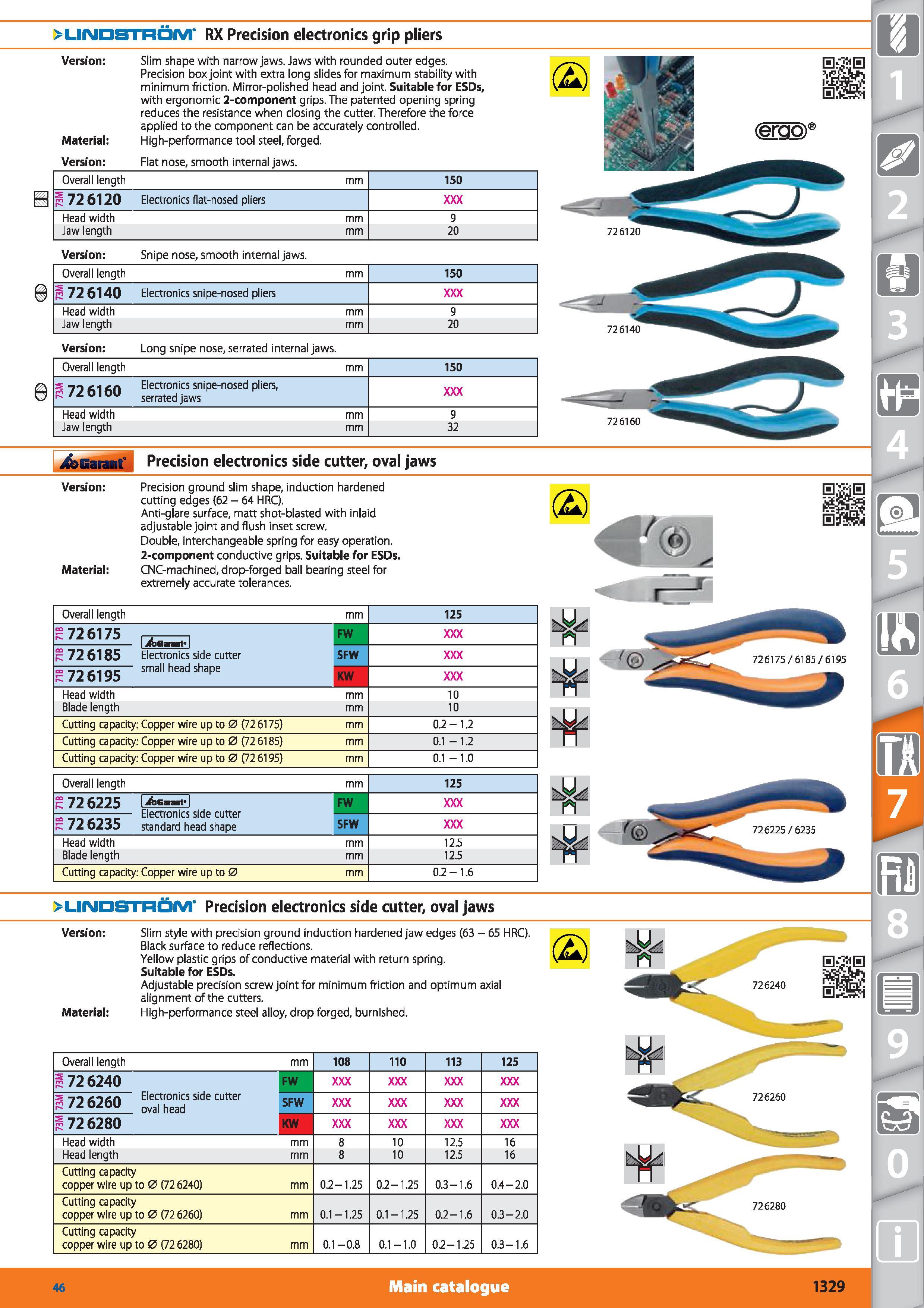

>LIIMDSTRC3M' RX Precision electronics grip pliers Version Slim shape with narrow jaws. Jaws with rounded outer edges. Precision box joint with extra long slides for maximum stability with minimum friction. Mirror-polished head and joint. Suitable for ESDs, with ergonomic 2-component grips. The patented opening spring reduces the resistance when closing the cutter. Therefore the force applied to the component can be accurately controlled. Material High-performance tool steel, forged. Version Flat nose, smooth internal jaws. frmgl Precision electronics side cutter, oval jaws Version Material Precision ground slim shape, induction hardened cutting edges (62 - 64 HRC). Anti-glare surface, matt shot-blasted with inlaid adjustable joint and flush inset screw. Double, interchangeable spring for easy operation. 2-component conductive grips. Suitable for ESDs. CNC-machined, drop-forged ball bearing steel for extremely accurate tolerances. Overall length mm 150 1 1 r i r 726120 Electronics flat-nosed pliers Head width mm 9 Jaw length mm 20 Version Snipe nose, smooth internal jaws. Overall length mm 150 r 726140 Electronics snipe-nosed pliers Head width mm 9 Jaw length mm 20 Version Long snipe nose, serrated internal jaws. Overall length mm 150 e r 72 6160 Electronics snipe-nosed pliers, serrated jaws Head width mm 9 Jaw length mm 32 Overall length mm 125 S 72 6175 lifeGrait'l Electronics side cutter small head shape FW “726185 SFW E 72 6195 KW Head width mm 10 Blade length mm 10 Cutting capacity Copper wire up to 0 (72 6175) mm 0 Kj 1 Kj Cutting capacity Copper wire up to 0 (726185) mm 0.1 -1.2 Cutting capacity Copper wire up to 0 (726195) mm 0.1 -1.0 Overall length mm 125 S 72 6225 lifeGmnt” Electronics side cutter standard head shape FW “726235 SFW Head width mm 12.5 Blade length mm 12.5 Cutting capacity Copper wire up to 0 mm 0.2-1.6 LL >l_IIMDSTROM' Precision electronics side cutter, oval jaws Version Slim style with precision ground induction hardened jaw edges (63 - 65 HRC). Black surface to reduce reflections. Yellow plastic grips of conductive material with return spring. Suitable for ESDs. Adjustable precision screw joint for minimum friction and optimum axial alignment of the cutters. Material High-performance steel alloy, drop forged, burnished. (2) Overall length mm 108 110 113 125 g 72 6240 FW s AjAn tlectromcs side cutter r O U oval head SFW r 72 6280 KW Head width mm 8 10 12.5 16 Head length mm 8 10 12.5 16 Cutting capacity copper wire up to 0 (72 6240) mm 0.2-1.25 0.2-1.25 0.3-1.6 0.4-2.0 Cutting capacity copper wire up to 0 (72 6260) mm 0.1-1.25 0.1-1.25 0.2-1.6 0.3-2.0 Cutting capacity copper wire up to 0 (72 6280) mm 0.1 -0.8 0.1-1.0 0.2-1.25 0.3-1.6 Main catalogue Hoffmann Group 46 1329 726120 05 0 (eraor
