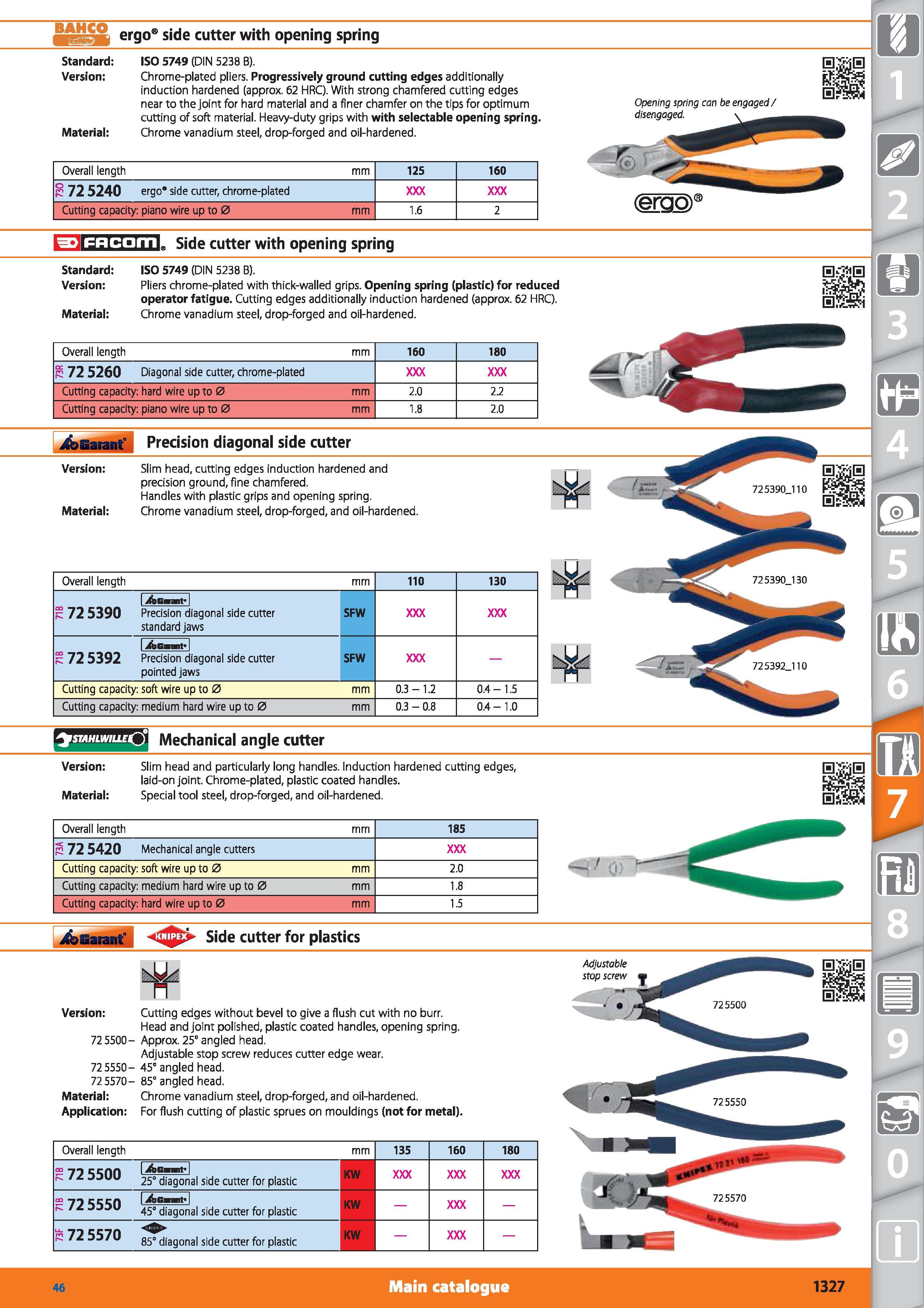

BAHCO ergo8 side cutter with opening spring m Standard Version Material ISO 5749 (DIN 5238 B). Chrome-plated pliers. Progressively ground cutting edges additionally induction hardened (approx. 62 HRC). With strong chamfered cutting edges near to the joint for hard material and a finer chamfer on the tips for optimum cutting of soft material. Heavy-duty grips with with selectable opening spring. Chrome vanadium steel, drop-forged and oil-hardened. Overall length mm 125 160 R 72 5240 ergo" side cutter, chrome-plated Cutting capacity piano wire up to 0 mm 1.6 2 pncom Side cutter with opening spring Standard ISO 5749 (DIN 5238 B). Version Pliers chrome-plated with thick-walled grips. Opening spring (plastic) for reduced operator fatigue. Cutting edges additionally induction hardened (approx. 62 HRC). Material Chrome vanadium steel, drop-forged and oil-hardened. Overall length mm 160 180 ft 72 5260 Diagonal side cutter, chrome-plated Cutting capacity hard wire up to 0 mm 2.0 2.2 Cutting capacity piano wire up to 0 mm 1.8 2.0 Precision diagonal side cutter Version Slim head, cutting edges induction hardened and precision ground, fine chamfered. Handles with plastic grips and opening spring. Material Chrome vanadium steel, drop-forged, and oil-hardened. Overall length mm 110 130 S 72 5390 1 jfecnnt 1 Precision diagonal side cutter standard jaws SFW S 72 5392 1 jfecmnt 1 Precision diagonal side cutter pointed jaws SFW Cutting capacity soft wire up to 0 mm 0.3-1.2 0.4- 1.5 Cutting capacity medium hard wire up to 0 mm 0.3 - 0.8 Q I sl- O a STAHLWILLEt ) Mechanical angle cutter Version Slim head and particularly long handles. Induction hardened cutting edges, laid-on joint. Chrome-plated, plastic coated handles. Material Special tool steel, drop-forged, and oil-hardened. Overall length mm 185 pj 72 5420 Mechanical angle cutters Cutting capacity soft wire up to 0 mm 2.0 Cutting capacity medium hard wire up to 0 mm 1.8 Cutting capacity hard wire up to 0 mm 1.5 Side cutter for plastics n Version Cutting edges without bevel to give a flush cut with no burr. Head and joint polished, plastic coated handles, opening spring. 72 5500- Approx. 25° angled head. Adjustable stop screw reduces cutter edge wear. 72 5550 - 45° angled head. 72 5570 - 85° angled head. Chrome vanadium steel, drop-forged, and oil-hardened. For flush cutting of plastic sprues on mouldings (not for metal). Material Application Overall length mm 135 160 180 “72 5500 I jfacmnt I 25° diagonal side cutter for plastic KW S 72 5550 I i&Gnnt I 45° diagonal side cutter for plastic KW ft 72 5570 85° diagonal side cutter for plastic KW 46 Opening spring can be engaged/ disengaged. Main catalogue
