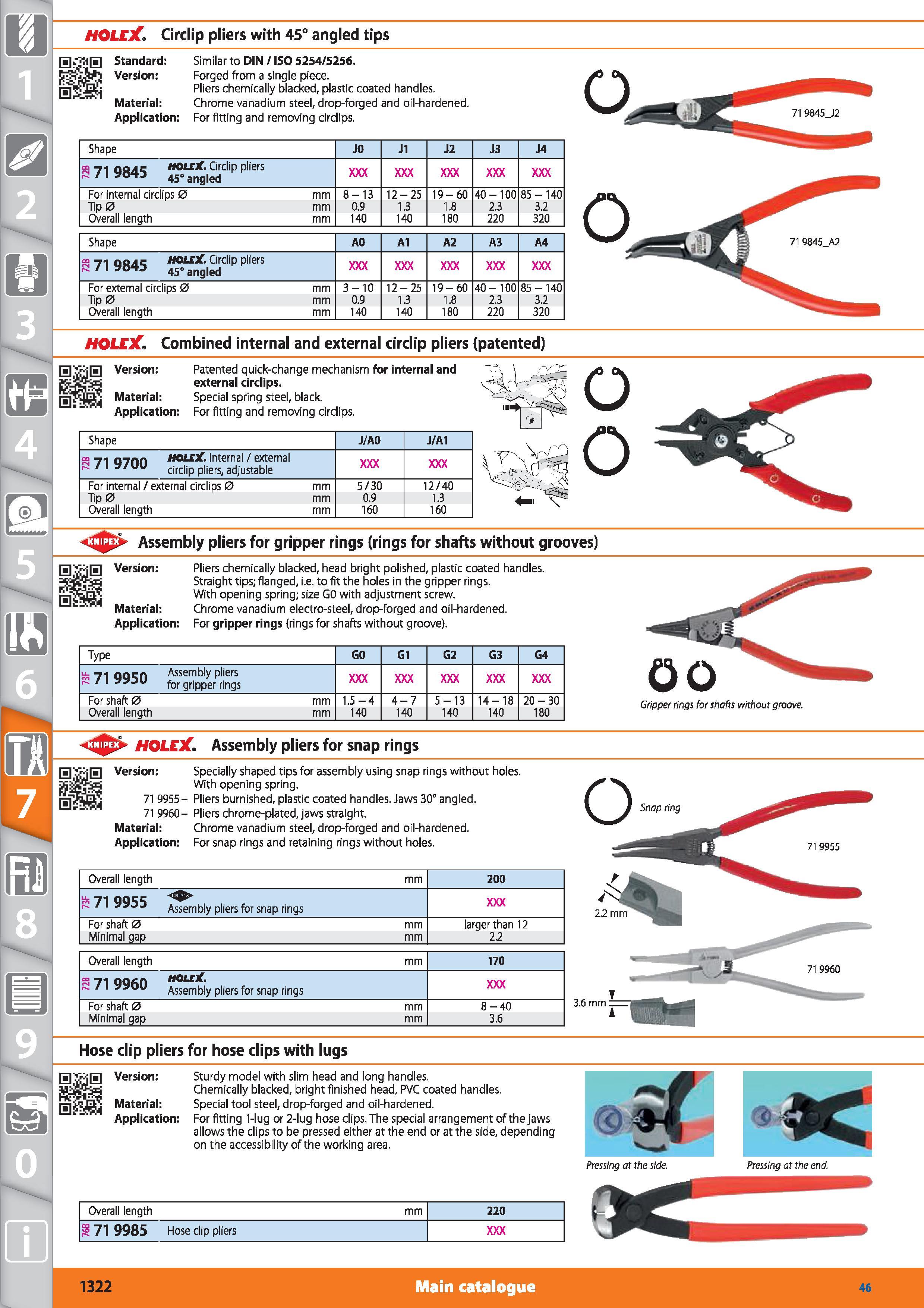

HOLEX Circlip pliers with 45° angled tips Standard Similar to DIN / ISO 5254/5256. Version Forged from a single piece. Pliers chemically blacked, plastic coated handles. Material Chrome vanadium steel, drop-forged and oil-hardened. Application For fitting and removing cirdips. Shape JO J1 J2 J3 J4 K 71 QJUi; holeX. Circlip pliers - 1 V84:> 45° angled For internal cirdips 0 mm 8-13 12-25 19-60 40-100 85 - 140 Tip 0 mm 0.9 1.3 1.8 2.3 3.2 Overall length mm 140 140 180 220 320 Shape AO Al A2 A3 A4 K 71 QB4q HOLEX Circlip pliers 1 45° angled For external cirdips 0 mm 3-10 12-25 19-60 40-100 85 - 140 Tip 0 mm 0.9 1.3 1.8 2.3 3.2 Overall length mm 140 140 180 220 320 HOLEX Combined internal and external circlip pliers (patented) g Version Material Application Patented quick-change mechanism for internal and external cirdips. Special spring steel, black For fitting and removing cirdips. Shape J/AO J/A1 71 Q7nn holeX. Internal / external / I V/UU drdip p iers_ adjustab e For internal / external cirdips 0 mm 5/30 12/40 Tip 0 mm 0.9 1.3 Overall length mm 160 160 Assembly pliers for gripper rings (rings for shafts without grooves) 0 Version Pliers chemically blacked, head bright polished, plastic coated handles. Straight tips; flanged, i.e. to fit the holes in the gripper rings. With opening spring; size GO with adjustment screw. Material Chrome vanadium electro-steel, drop-forged and oil-hardened. Application For gripper rings (rings for shafts without groove). Type GO G1 G2 G3 G4 h 71 9950 Assembly pliers for gripper rings For shaft 0 mm Ln 1 -1 4-7 5-13 14-18 20-30 Overall length mm 140 140 140 140 180 Gripper rings for shafts without groove. HOLEX Assembly pliers for snap rings g Version Specially shaped tips for assembly using snap rings without holes. With opening spring. 71 9955- Pliers burnished, plastic coated handles. Jaws 30° angled. 71 9960- Pliers chrome-plated, jaws straight. Material Chrome vanadium steel, drop-forged and oil-hardened. Application For snap rings and retaining rings without holes. Overall length mm 200 R 71 9955 Assembly pliers for snap rings For shaft 0 mm larger than 12 Minimal gap mm 2.2 Overall length mm 170 S 71 9960 HOLCX. Assembly pliers for snap rings For shaft 0 mm 8-40 Minimal gap mm 3.6 Hose clip pliers for hose clips with lugs Version Sturdy model with slim head and long handles. Chemically blacked, bright finished head, PVC coated handles. Material Special tool steel, drop-forged and oil-hardened. Application For fitting 1-lug or 2-lug hose clips. The special arrangement of the jaws allows the clips to be pressed either at the end or at the side, depending on the accessibility of the working area. Pressing at the side. Pressing at the end. Overall length mm 220 It 71 9985 Hose clip pliers 1322 Main catalogue Hoffmann Group 46
