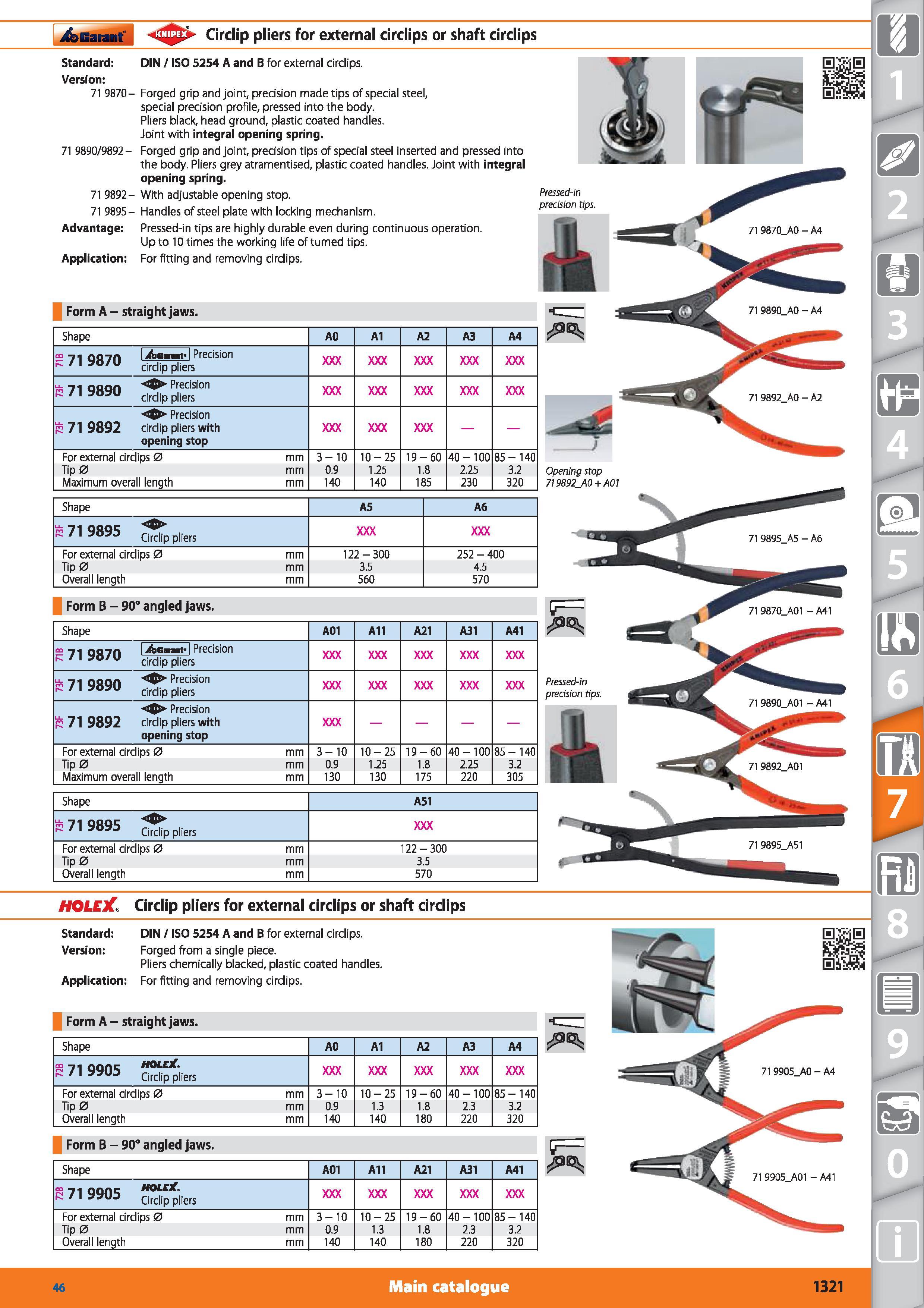

Garant Circlip pliers for external cirdips or shaft cirdips Standard DIN / ISO 5254 A and B for external cirdips. Version 71 9870- Forged grip and joint, precision made tips of special steel, special precision profile, pressed into the body. Pliers black, head ground, plastic coated handles. Joint with integral opening spring. 71 9890/9892 - Forged grip and joint, precision tips of special steel inserted and pressed into the body. Pliers grey atramentised, plastic coated handles. Joint with integral opening spring. 71 9892- With adjustable opening stop. Pressed-in 71 9895- Handles of steel plate with locking mechanism. Advantage Pressed-in tips are highly durable even during continuous operation. Up to 10 times the working life of turned tips. Application For fitting and removing cirdips. Form A - straight jaws. Shape A0 A1 A2 A3 A4 S 71 9870 1 Amt' I Precision circlip pliers ft 71 9890 Precision circlip pliers ft 71 9892 Precision circlip pliers with opening stop For external cirdips 0 mm 3-10 10-25 19-60 40-100 85-140 Tip 0 mm 0.9 1.25 1.8 2.25 3.2 Maximum overall length mm 140 140 185 230 320 Shape AS A6 5 719895 For external cirdips 0 mm 122-300 252 - 400 Tip 0 mm 3.5 4.5 Overall length mm 560 570 Form B - 90° angled jaws. Shape A01 A11 A21 A31 A41 71 9870 1 Am 1 Precision circlip pliers ft 71 9890 Precision circlip pliers ft 71 9892 Precision cirdip pliers with opening stop For external cirdips 0 mm 3-10 10-25 19-60 40-100 85-140 Tip 0 mm 0.9 1.25 1.8 2.25 3.2 Maximum overall length mm 130 130 175 220 305 Shape A51 719895 For external cirdips 0 mm 122-300 Tip 0 mm 3.5 Overall length mm 570 HOLEiC. Circlip pliers for external cirdips or shaft cirdips Standard DIN / ISO 5254 A and B for external cirdips. Version Forged from a single piece. Pliers chemically blacked, plastic coated handles. For fitting and removing cirdips. Application Form A - straight jaws. Shape AO A1 A2 A3 A4 8719905 For external cirdips 0 mm 3-10 10-25 19-60 40-100 85-140 Tip 0 mm 0.9 1.3 1.8 2.3 3.2 Overall length mm 140 140 180 220 320 Form B - 90° angled jaws. Shape A01 All A21 A31 A41 E 71 9905 For external cirdips 0 mm 3-10 10-25 19-60 40-100 85-140 Tip 0 mm 0.9 1.3 1.8 2.3 3.2 Overall length mm 140 140 180 220 320 71 9905_A0 - A4 71 9905_A01 - A41 Main catalogue Hoffmann Group 46 1321
