1318 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1318

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1318 1318 ENG Lab2u

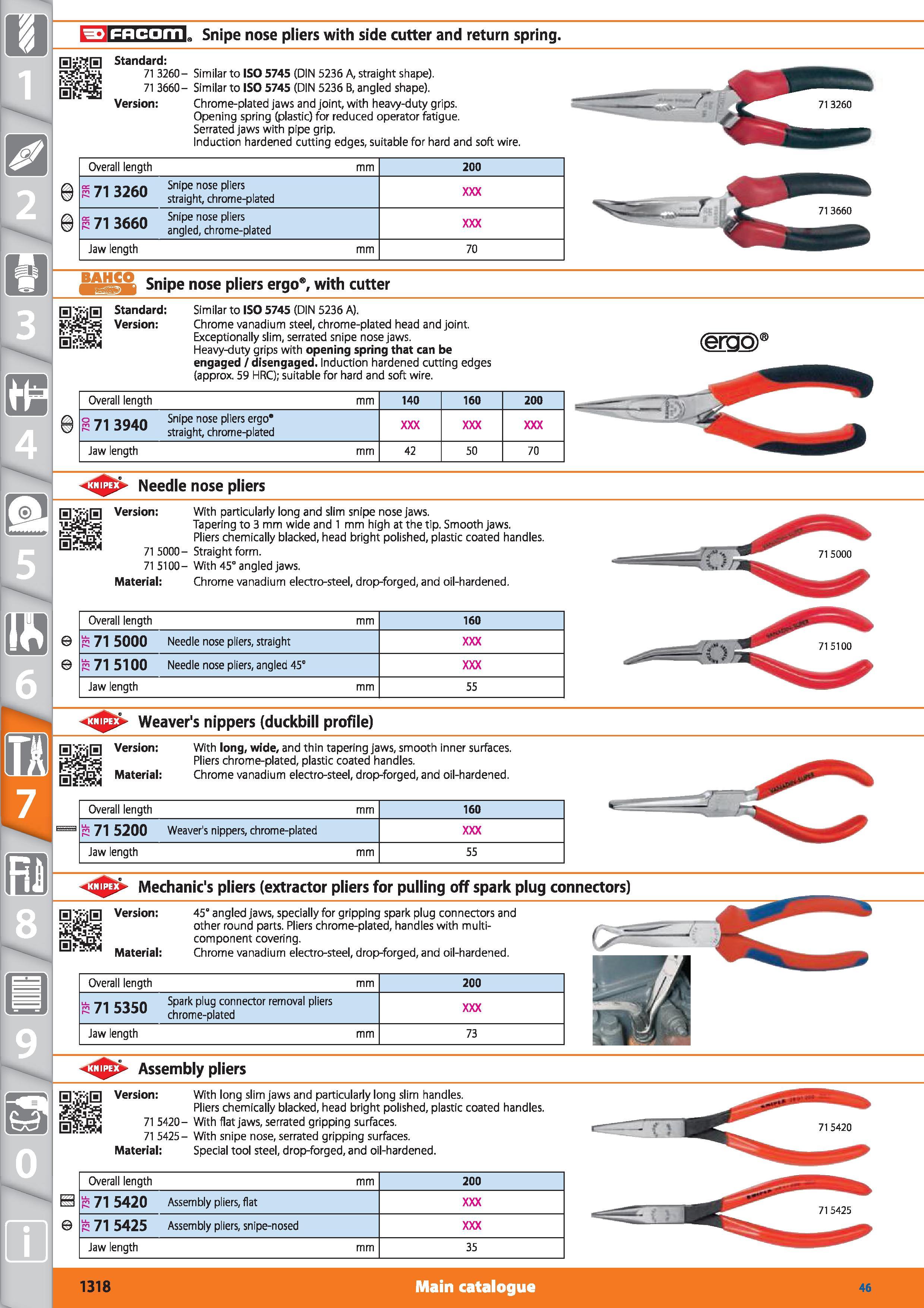

1 Snipe nose pliers with side cutter and return spring. Standard 71 3260- Similar to ISO 5745 (DIN 5236 A, straight shape). 71 3660- Similar to ISO 5745 (DIN 5236 B, angled shape). Version Chrome-plated jaws and joint, with heavy-duty grips. Opening spring (plastic) for reduced operator fatigue. Serrated jaws with pipe grip. Induction hardened cutting edges, suitable for hard and soft wire. Overall length mm 200 b 71 3260 Snipe nose pliers straight, chrome-plated b 71 3660 Snipe nose pliers angled, chrome-plated Jaw length mm 70 BAHCO Snipe nose pliers ergo8, with cutter Standard Similar to ISO 5745 (DIN 5236 A). Version Chrome vanadium steel, chrome-plated head and joint. Exceptionally slim, serrated snipe nose jaws. Heavy-duty grips with opening spring that can be engaged / disengaged. Induction hardened cutting edges (approx. 59 HRC); suitable for hard and soft wire. (erao) Overall length mm 140 160 200 71 3940 Snipe nose pliers ergo straight, chrome-plated Jaw length mm 42 50 70 Needle nose pliers Version With particularly long and slim snipe nose jaws. Tapering to 3 mm wide and 1 mm high at the tip. Smooth jaws. Pliers chemically blacked, head bright polished, plastic coated handles. 71 5000- Straight form. 71 5100- With 45° angled jaws. Material Chrome vanadium electro-steel, drop-forged, and oil-hardened. Overall length mm 160 e 71 5000 Needle nose pliers, straight b 71 5100 Needle nose pliers, angled 45° Jaw length mm 55 Weaver's nippers (duckbill profile) 0 Version Material With long, wide, and thin tapering jaws, smooth inner surfaces. Pliers chrome-plated, plastic coated handles. Chrome vanadium electro-steel, drop-forged, and oil-hardened. Assembly pliers Version With long slim jaws and particularly long slim handles. Pliers chemically blacked, head bright polished, plastic coated handles. 71 5420- With flat jaws, serrated gripping surfaces. 71 5425- With snipe nose, serrated gripping surfaces. Material Special tool steel, drop-forged, and oil-hardened. Overall length mm 200 b 71 5420 Assembly pliers, flat b 71 5425 Assembly pliers, snipe-nosed Jaw length mm 35 i 71 5200 Weaver's nippers, chrome-plated Jaw length Mechanic's pliers (extractor pliers for pulling off spark plug 0 7i j0 Version 45“ angled jaws, specially for gripping spark plug connectors and other round parts. Pliers chrome-plated, handles with multi-SfcSs component covering. Material Chrome vanadium electro-steel, drop-forged, and oil-hardened. Overall length corn Spark plug connector removal pliers / I DJ3U chrome-plated Jaw length Overall length 1318 Main catalogue Hoffmann Group 46
