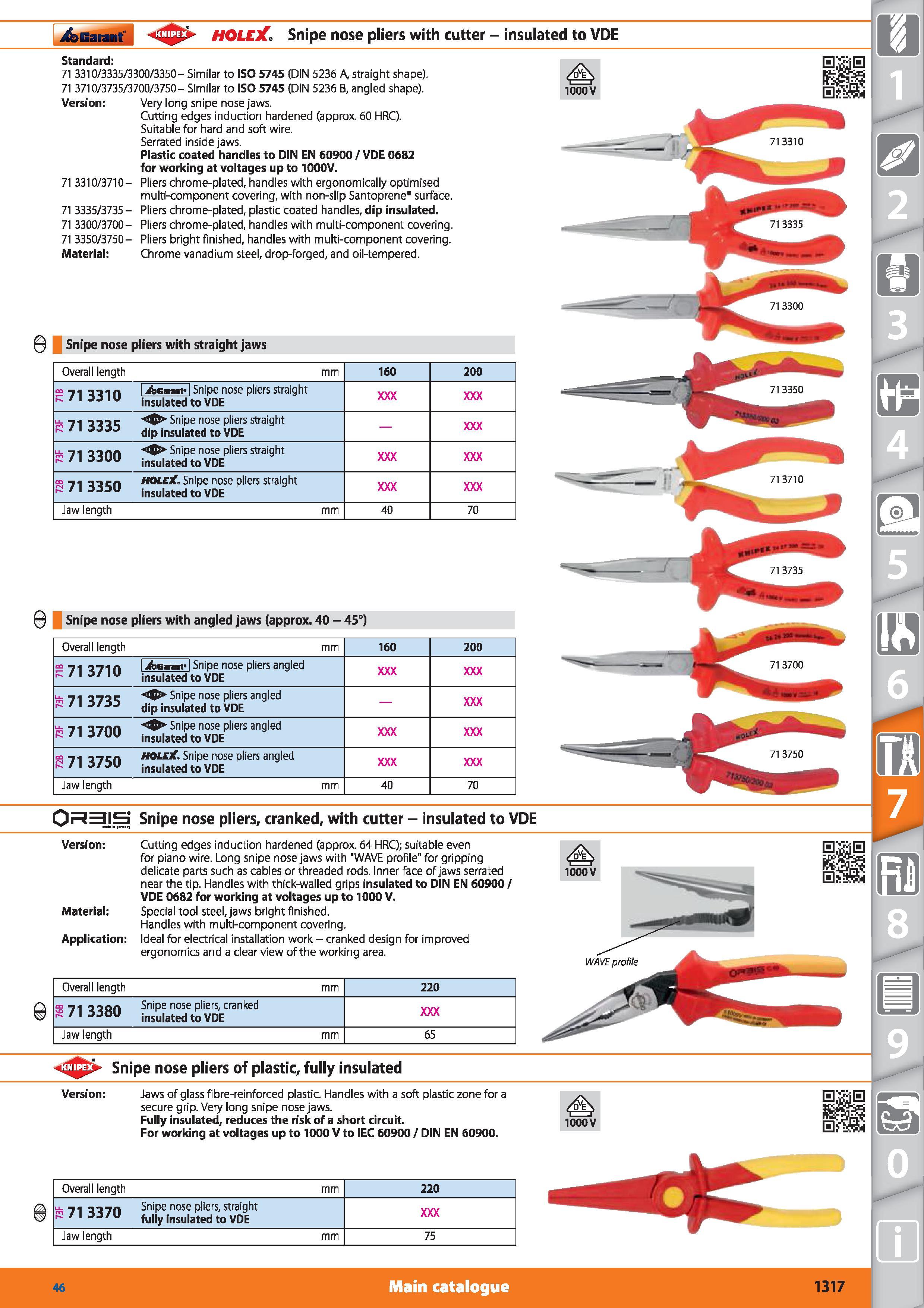

Garant HOLEX Snipe nose pliers with cutter - insulated to VDE Standard 71 3310/3335/3300/3350- Similar to ISO 5745 (DIN 5236 A, straight shape). 71 3710/3735/3700/3750- Similar to ISO 5745 (DIN 5236 B, angled shape). Version Very long snipe nose jaws. Cutting edges induction hardened (approx. 60 HRC). Suitable for hard and soft wire. Serrated inside jaws. Plastic coated handles to DIN EN 60900 / VDE 0682 for working at voltages up to 1000V. 71 3310/3710- Pliers chrome-plated, handles with ergonomically optimised multi-component covering, with non-slip Santoprene surface. 71 3335/3735 - Pliers chrome-plated, plastic coated handles, dip insulated. 71 3300/3700- Pliers chrome-plated, handles with multi-component covering. 71 3350/3750- Pliers bright finished, handles with multi-component covering. Material Chrome vanadium steel, drop-forged, and oil-tempered. Snipe nose pliers with straight jaws Overall length mm 160 200 71 3310 I itbomf I Snipe nose pliers straight insulated to VDE ft 71 3335 Snipe nose pliers straight dip insulated to VDE ft 71 3300 Snipe nose pliers straight insulated to VDE S 71 3350 HOLEX Snipe nose pliers straight insulated to VDE Jaw length mm 40 70 Snipe nose pliers with angled jaws (approx. 40 - 45° Overall length mm 160 200 71 3710 1 Amr 1 Snipe nose pliers anqled insulated to VDE ft 71 3735 Snipe nose pliers angled dip insulated to VDE ft 71 3700 Snipe nose pliers angled insulated to VDE S 71 3750 HOLEX Snipe nose pliers angled insulated to VDE Jaw length mm 40 70 Snipe nose pliers, cranked, with cutter - insulated to VDE Version Cutting edges induction hardened (approx. 64 HRC); suitable even for piano wire. Long snipe nose jaws with "WAVE profile" for gripping delicate parts such as cables or threaded rods. Inner face of jaws serrated near the tip. Handles with thick-walled grips insulated to DIN EN 60900 / VDE 0682 for working at voltages up to 1000 V. Material Special tool steel, jaws bright finished. Handles with multi-component covering. Application Ideal for electrical installation work - cranked design for improved ergonomics and a clear view of the working area. Overall length mm 220 S 71 3380 Snipe nose pliers, cranked insulated to VDE Jaw length mm 65 Snipe nose pliers of plastic, fully insulated Version Jaws of glass fibre-reinforced plastic. Handles with a soft plastic zone for a secure grip. Very long snipe nose jaws. Fully insulated, reduces the risk of a short circuit. For working at voltages up to 1000 V to IEC 60900 / DIN EN 60900. a Overall length mm 220 ft 71 3370 Snipe nose pliers, straight fully insulated to VDE Jaw length mm 75 Main catalogue Hoffmann Group 46 1317
