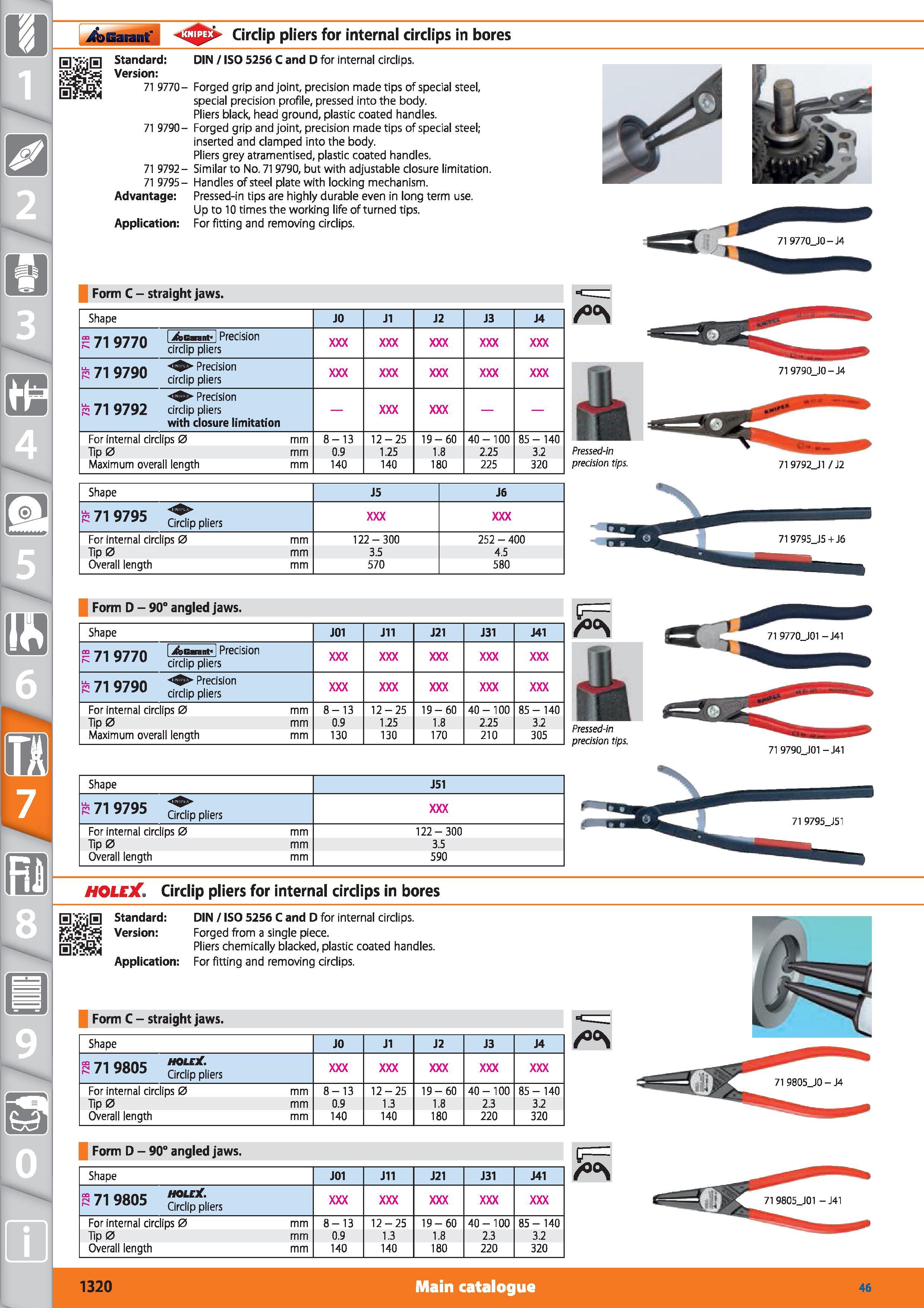

Garant Circlip pliers for internal circlips in bores Qi Standard DIN / ISO 5256 C and D for internal circlips. Version 71 9770- Forged grip and joint, precision made tips of special steel, special precision profile, pressed into the body. Pliers black, head ground, plastic coated handles. 71 9790- Forged grip and joint, precision made tips of special steel; inserted and clamped into the body. Pliers grey atramentised, plastic coated handles. 71 9792 - Similar to No. 719790, but with adjustable closure limitation. 71 9795- Handles of steel plate with locking mechanism. Advantage Pressed-in tips are highly durable even in long term use. Up to 10 times the working life of turned tips. Application For fitting and removing circlips. Form C - straight jaws. Shape JO J1 J2 J3 J4 71 9770 1 j&Gnnt> 1 Precision circlip pliers ft 71 9790 < Precision circlip pliers h 71 9792 Precision circlip pliers with closure limitation For internal circlips 0 mm 8-13 12-25 19-60 40-100 85 - 140 Tip 0 mm 0.9 1.25 1.8 2.25 3.2 Maximum overall length mm 140 140 180 225 320 Shape J5 16 719795 For internal circlips 0 mm 122-300 252 - 400 Tip 0 mm 3.5 4.5 Overall length mm 570 580 Form D - 90° angled jaws. Shape J01 J11 J21 J31 J41 m -y-i ifecnnt 1 Precision K/IS//U circlip pliers 71 9790 Pl;ecision r- / 1 circlip pliers For internal circlips 0 mm 8-13 12-25 19-60 40-100 85 - 140 Tip 0 mm 0.9 1.25 1.8 2.25 3.2 Maximum overall length mm 130 130 170 210 305 Shape J51 719795 For internal circlips 0 mm 122-300 1ip0 mm 3.5 Overall length mm 590 HOLEX Circlip pliers for internal circlips in bores 0 Standard Version DIN / ISO 5256 C and D for internal circlips. Forged from a single piece. Pliers chemically blacked, plastic coated handles. Application For fitting and removing circlips. Form C - straight jaws. Shape JO J1 J2 J3 J4 S 719805 For internal circlips 0 mm 8-13 12-25 19-60 40-100 85 - 140 Tip 0 mm 0.9 1.3 1.8 2.3 3.2 Overall length mm 140 140 180 220 320 Form D - 90° angled jaws. /°°s Shape J01 J11 J21 J31 J41 S 719805 For internal circlips 0 mm 8-13 12-25 19-60 40-100 85 - 140 Tip 0 mm 0.9 1.3 1.8 2.3 3.2 Overall length mm 140 140 180 220 320 1320 Main catalogue Hoffmann Group 46
