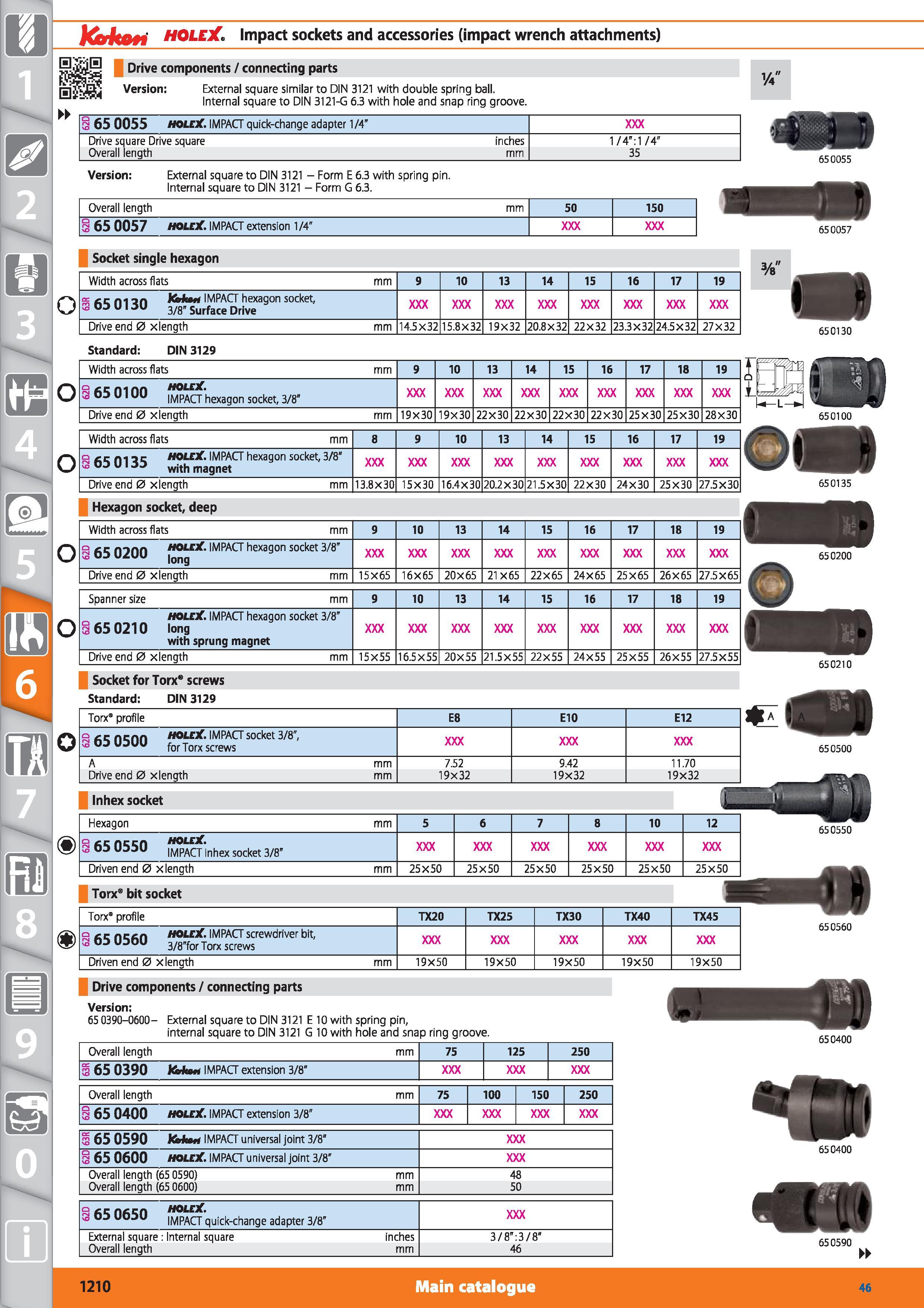

KorkOH HOLEX Impact sockets and accessories (impact wrench attachments) Drive components / connecting parts Version External square similar to DIN 3121 with double spring ball. Internal square to DIN 3121-G 6.3 with hole and snap ring groove. 65 0055 HOLEX IMPACT quick-change adapter 1/4” Drive square Drive square inches 1/4" 1/4" Overall length mm 35 65 0055 Version External square to DIN 3121 - Form E 6.3 with spring pin. Internal square to DIN 3121 - Form G 6.3. Overall length mm 50 150 65 0057 HOLEX IMPACT extension 1/4" 65 0057 Socket single hexagon o Width across flats mm 9 10 13 14 15 16 17 19 ss cc m an KUm IMPACT hexagon socket, 3 65 0130 3/8" surface Drive Drive end 0 xlength mm 14.5X32 15.8X32 19X32 20.8X32 22X32 23.3X32 24.5X32 27X32 650130 Standard DIN 3129 Width across flats mm 9 10 13 14 15 16 17 18 19 3 650100 IMPACT hexagon socket, 3/8" Drive end 0 xlength mm 19X30 19X30 22X30 22X30 22X30 22X30 25X30 25X30 28X30 650100 Width across flats mm 8 9 10 13 14 15 16 17 19 0 cc nnc HOLEX IMPACT hexagon socket, 3/8" 3 65 0135 with magnet Drive end 0 xlength mm 13.8X30 15X30 16.4x30 20.2x30 21.5X30 22X30 24X30 25X30 27.5X30 Hexagon socket, deep Width across flats mm 9 10 13 14 15 16 17 18 19 q 65 0200 N01E1 IMPACT hexagon socket 3/8” Drive end 0 xlength mm 15X65 16x65 20x65 21X65 22X65 24X65 25X65 26x65 27.5X65 Spanner size mm 9 10 13 14 15 16 17 18 19 holeX. IMPACT hexagon socket 3/8” 650210 long with sprung magnet Drive end 0 xlength mm 15X55 16.5X55 20X55 21.5X55 22x55 24x55 25X55 26X55 27.5X55 Standard DIN 3129 o Torx” profile E8 E10 E12 q / r ncnn HOLEX 1MPA(_ 1 socket 3/8”, 65 0500 for Torx screws A mm 7.52 9.42 11.70 Drive end 0 xlength mm 19x32 19x32 19x32 650500 Inhex socket Flexagon mm 5 6 7 8 10 12 650550 HOLEX IMPACT inhex socket 3/8” Driven end 0 xlength mm 25X50 25X50 25X50 25X50 25X50 25X50 650550 Torx bit socket Torx” profile TX20 TX25 TX30 TX40 TX45 650560 HOLEX IMPACT screwdriver bit, 3/8”for Torx screws Driven end 0 xlength mm 19X50 19X50 19X50 19X50 19X50 650560 Drive components / connecting parts Version 65 0390-0600- External square to DIN 3121 E 10 with spring pin, internal square to DIN 3121 G 10 with hole and snap ring groove. Overall length mm 75 125 250 3 65 0390 IUm IMPACT extension 3/8” Overall length mm 75 100 150 250 65 0400 HOLEX IMPACT extension 3/8" 3 65 0590 fcfaii IMPACT universal joint 3/8" 65 0600 HOLEX IMPACT universal joint 3/8" Overall length (65 0590) mm 48 Overall length (65 0600) mm 50 o CC n rn HOLEX 3 03 U03U impact quick-change adapter 3/8” External square Internal square inches 3/8”:3/8" Overall length mm 46 650400 Ot 650400 650590 1210 Main catalogue
