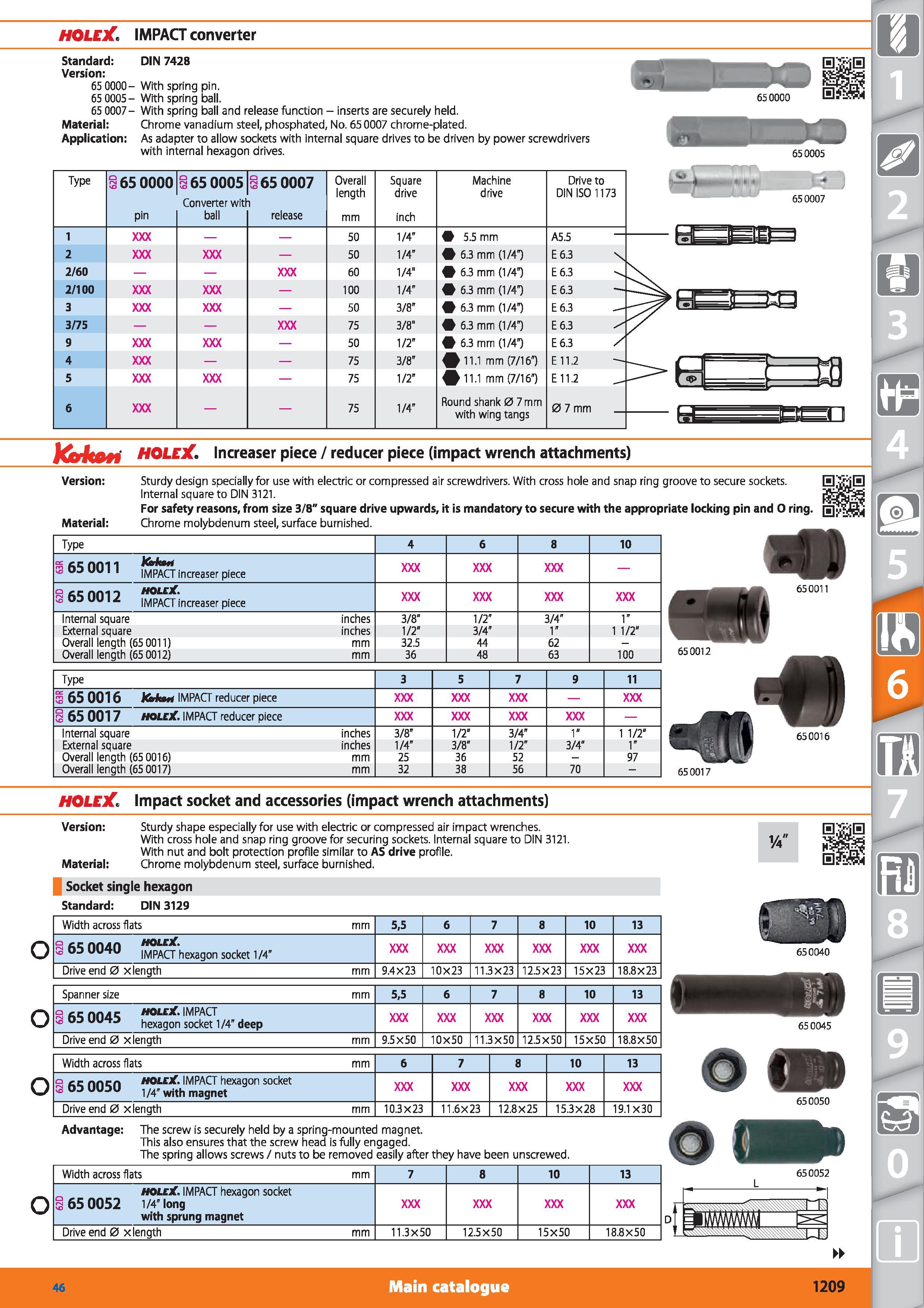

HOLEX IMPACT converter Standard DIN 7428 Version 65 0000- With spring pin. 65 0005- With spring ball. 65 0007- With spring ball and release function - inserts are securely held. Material Chrome vanadium steel, phosphated. No. 65 0007 chrome-plated. Application As adapter to allow sockets with internal square drives to be driven by power screwdrivers with internal hexagon drives. Type 650000 pin 65 0005 Converter witl ball 650007 release Overall length mm Square drive inch Machine drive Drive to DIN ISO 1173 1 50 1/4" 5.5 mm A5.5 2 50 1/4" 6.3 mm (1/4") E 6.3 \ 2/60 60 1/4” ft 6.3 mm (1/4”) E 6.3 \ 2/100 100 1/4" ft 6.3 mm (1/4”) E 6.3 - 3 50 3/8" ft 6.3 mm (1/4”) E 6.3 3/75 75 3/8” ft 6.3 mm (1/4”) E 6.3 / 9 50 1/2" ft 6.3 mm (1/4”) E 6.3 / 4 5 6 75 3/8" 11.1 mm (7/16") 11.1 mm (7/16") Round shank 0 7 mm with wing tangs E 11.2 75 75 1/2 1/4" E 11.2 0 7 mm JdtrfcOll HOLEX Increaser piece / reducer piece (impact wrench attachments) Version Sturdy design specially for use with electric or compressed air screwdrivers. With cross hole and snap ring groove to secure sockets. 0 Internal square to DIN 3121. For safety reasons, from size 3/8" square drive upwards, it is mandatory to secure with the appropriate locking pin and O ring. jijjjK Material Chrome molybdenum steel, surface burnished. Type 4 6 8 10 3 65 0011 increaser piece q tc nm o holejC' o 03 uu z impact increaser piece Internal square inches 3/8" 1/2" 3/4" 1" External square inches 1/2" 3/4" 1" 1 1/2" Overall length (65 0011) mm 32.5 44 62 - Overall length (65 0012) mm 36 48 63 100 Type 3 5 7 9 11 3 65 0016 fefaii IMPACT reducer piece 65 0017 HOLEX IMPACT reducer piece Internal square inches 3/8” 1/2" 3/4” 1" 1 1/2" External square inches 1/4” 3/8" 1/2" 3/4” 1" Overall length (65 0016) mm 25 36 52 97 Overall length (65 0017) mm 32 38 56 70 - 650017 HOLEX Impact socket and accessories (impact wrench attachments) Version Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. With nut and bolt protection profile similar to AS drive profile. Material Chrome molybdenum steel, surface burnished. Socket single hexagon Standard DIN 3129 Width across flats mm 5,5 6 7 8 10 13 3 65 0040 hexagon socket 1 /4" Drive end 0 x length mm 9.4X23 10X23 11.3x23 12.5X23 15X23 18.8X23 Spanner size mm 5,5 6 7 8 10 13 q nn c HOLEX IMPACT >o oa uu'kj hexagon socket 1/4” deep Drive end 0 x length mm 9.5X50 10X50 11.3X50 12.5X50 15X50 18.8X50 Width across flats mm 6 7 8 10 13 1=1 c.c nncn HOLEX IMPACT hexagon socket 3 650050 Wwithmagnet Drive end 0 x length mm 10.3X23 11.6X23 12.8X25 15.3X28 19.1X30 Advantage The screw is securely held by a spring-mounted magnet. This also ensures that the screw head is fully engaged. The spring allows screws / nuts to be removed easily after they have been unscrewed. Width across flats mm 7 8 10 13 holejC, IMPACT hexagon socket 3 65 0052 1/4" long with sprung magnet Drive end 0 x length mm 11.3X50 12.5X50 15X50 18.8X50 Main catalogue Hoffmann Group 46 1209
