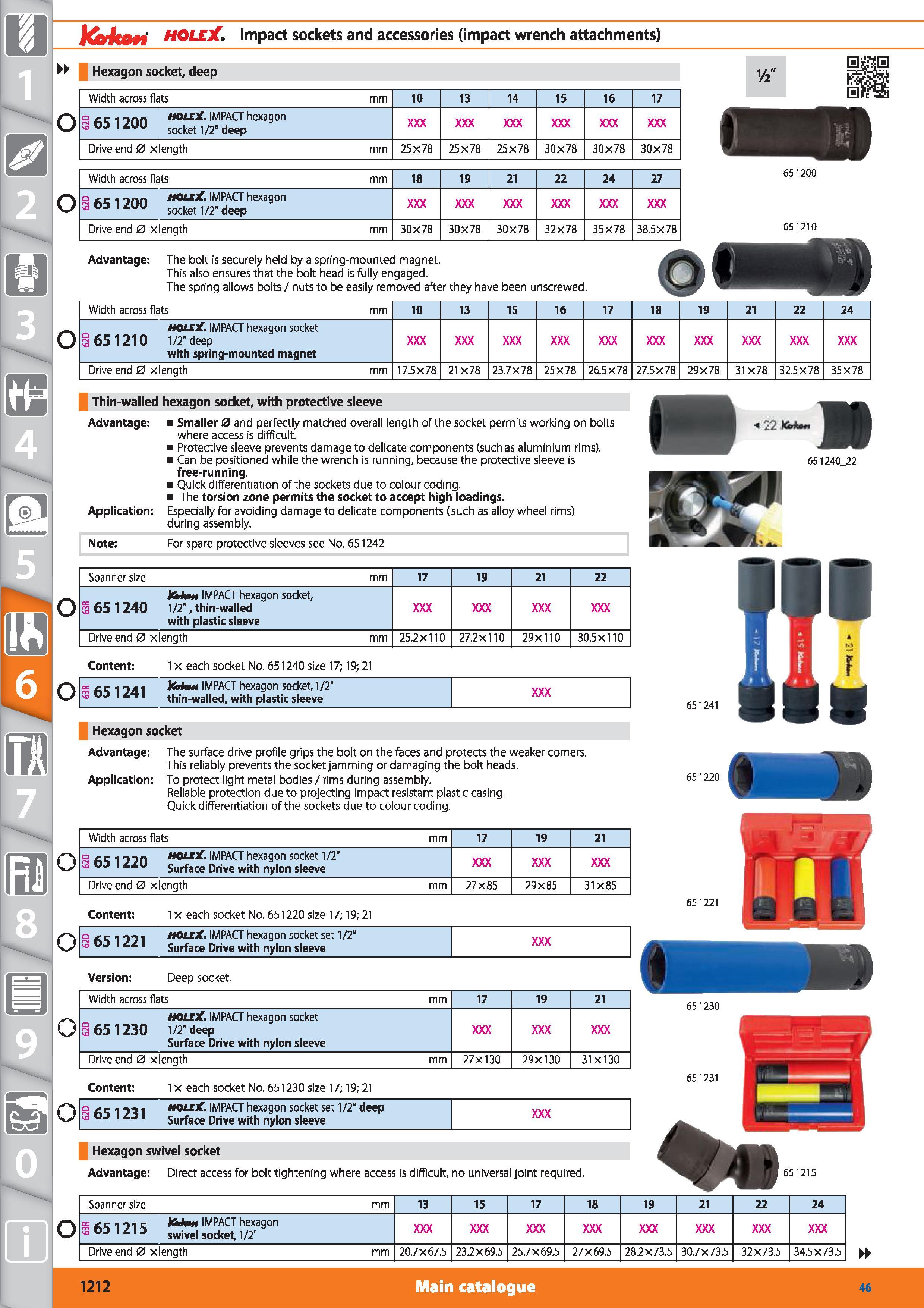

1 Kukart HOLEX Impact sockets and accessories (impact wrench attachments) Hexagon socket, deep Width across flats mm 10 13 14 15 16 17 , r 1 -n- holcjC, IMPACT hexagon 3651200 socket 1/2" deep Drive end 0 x length mm 25X78 25X78 25X78 30X78 30X78 30X78 Width across flats mm 18 19 21 22 24 27 o , r 1 -n- HOLEX IMPACT hexagon 3651200 socket 1/2" deep Drive end 0 x length mm 30X78 30X78 30X78 32X78 35X78 38.5X78 651200 651210 Advantage The bolt is securely held by a spring-mounted magnet. This also ensures that the bolt head is fully engaged. The spring allows bolts / nuts to be easily removed after they have been unscrewed. Width across flats mm 10 13 15 16 17 18 19 21 22 24 HOLEX IMPACT hexagon socket 651210 1/2” deep with spring-mounted magnet Drive end 0 x length mm 17.5X78 21X78 23.7X78 25X78 26.5X78 27.5X78 29X78 31X78 32.5X78 35X78 Thin-walled hexagon socket, with protective sleeve Advantage Smaller 0 and perfectly matched overall length of the socket permits working on bolts where access is difficult. Protective sleeve prevents damage to delicate components (such as aluminium rims). Can be positioned while the wrench is running, because the protective sleeve is free-running. Quick differentiation of the sockets due to colour coding. The torsion zone permits the socket to accept high loadings. Application Especially for avoiding damage to delicate components (such as alloy wheel rims) during assembly. Note For spare protective sleeves see No. 651242 rcil Spanner size mm 17 19 21 22 1651240 KMnM IMPACT hexagon socket, 1/2”, thin-walled with plastic sleeve Drive end 0 x length mm 25.2X110 27.2X110 29X110 30.5X110 Content 1 x each socket No. 651240 size 17; 19; 21 1651241 Kthm IMPACT hexagon socket, 1/2" thin-walled, with plastic sleeve Hexagon socket Advantage The surface drive profile grips the bolt on the faces and protects the weaker corners. This reliably prevents the socket jamming or damaging the bolt heads. Application To protect light metal bodies / rims during assembly. Reliable protection due to projecting impact resistant plastic casing. Quick differentiation of the sockets due to colour coding. Width across flats mm 17 19 21 651220 HOLEX IMPACT hexagon socket 1/2” Surface Drive with nylon sleeve Drive end 0 x length mm 27x85 29x85 31x85 Content 1 X each socket No. 651220 size 17; 19; 21 651221 HOLEX IMPACT hexagon socket set 1/2" Surface Drive with nylon sleeve Version Deep socket. Width across flats mm 17 19 21 651230 HOLEX IMPACT hexagon socket 1/2” deep Surface Drive with nylon sleeve Drive end 0 x length mm 27X130 29x130 31x130 Content 1 X each socket No. 651230 size 17; 19; 21 o j rr 231 HOLEX IMPACT hexagon socket set 1/2” deep 1 Surface Drive with nylon sleeve Hexagon swivel socket Advantage Direct access for bolt tightening where access is difficult, no universal joint required. Spanner size mm 13 15 17 18 19 21 22 24 1651215 KUmm IMPACT hexagon swivel socket, 1/2" Drive end 0 x length mm 20.7X67.5 23.2X69.5 25.7X69.5 27X69.5 28.2X73.5 30.7X73.5 32X73.5 34.5X73.5 1212 Main catalogue Hoffmann Group 46
