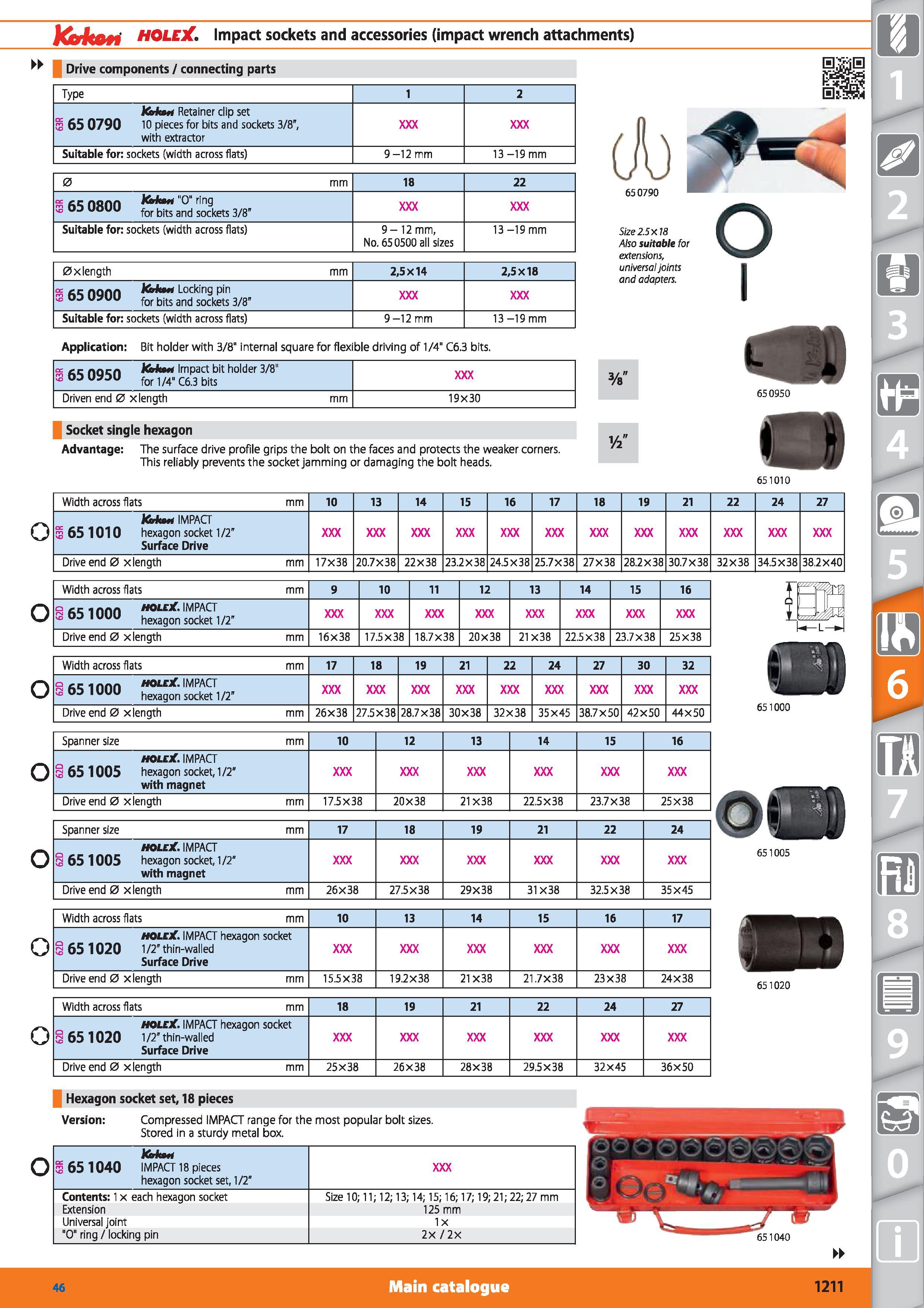

jdoiton HOLEX Impact sockets and accessories (impact wrench attachments) Drive components / connecting parts Type 1 2 IUm Retainer clip set S 65 0790 10 pieces for bits and sockets 3/8”, with extractor Suitable for sockets (width across flats) 9-12 mm 13 -19 mm 0 mm 18 22 1650800 JUm "0" ring for bits and sockets 3/8” Suitable for sockets (width across flats) 9-12 mm, No. 650500 all sizes 13 -19 mm 0 xlength mm 2,5X14 2,5X18 s 65 0900 iUm Locking pin for bits and sockets 3/8” Suitable for sockets (width across flats) 9-12 mm 13 -19 mm Size 2.5X18 Also suitable for extensions, universal joints and adapters. Application Bit holder with 3/8" internal square for flexible driving of 1/4" C6.3 bits. oc c nflcn Koktn Impact bit holder 3/8" s 65 0950 for 1/4„ C6 3 bjts Driven end 0 xlength mm 19X30 650950 Socket single hexagon Advantage The surface drive profile grips the bolt on the faces and protects the weaker corners. This reliably prevents the socket jamming or damaging the bolt heads. 651010 o Width across flats mm 10 13 14 15 16 17 18 19 21 22 24 27 JUm IMPACT 1 65 1010 hexagon socket 1/2” Surface Drive Drive end 0 xlength mm 17X38 20.7X38 22X38 23.2X38 24.5X38 25.7X38 27X38 28.2X38 30.7X38 32X38 34.5X38 38.2X40 Width across flats mm 9 10 11 12 13 14 15 16 Q ("r i nnn HQLEXt IMPACT S 65 1000 hexagon socket 1/2” Drive end 0 xlength mm 16x38 17.5x38 18.7x38 20x38 21x38 22.5x38 23.7x38 25x38 If Width across flats mm 17 18 19 21 22 24 27 30 32 o / r
