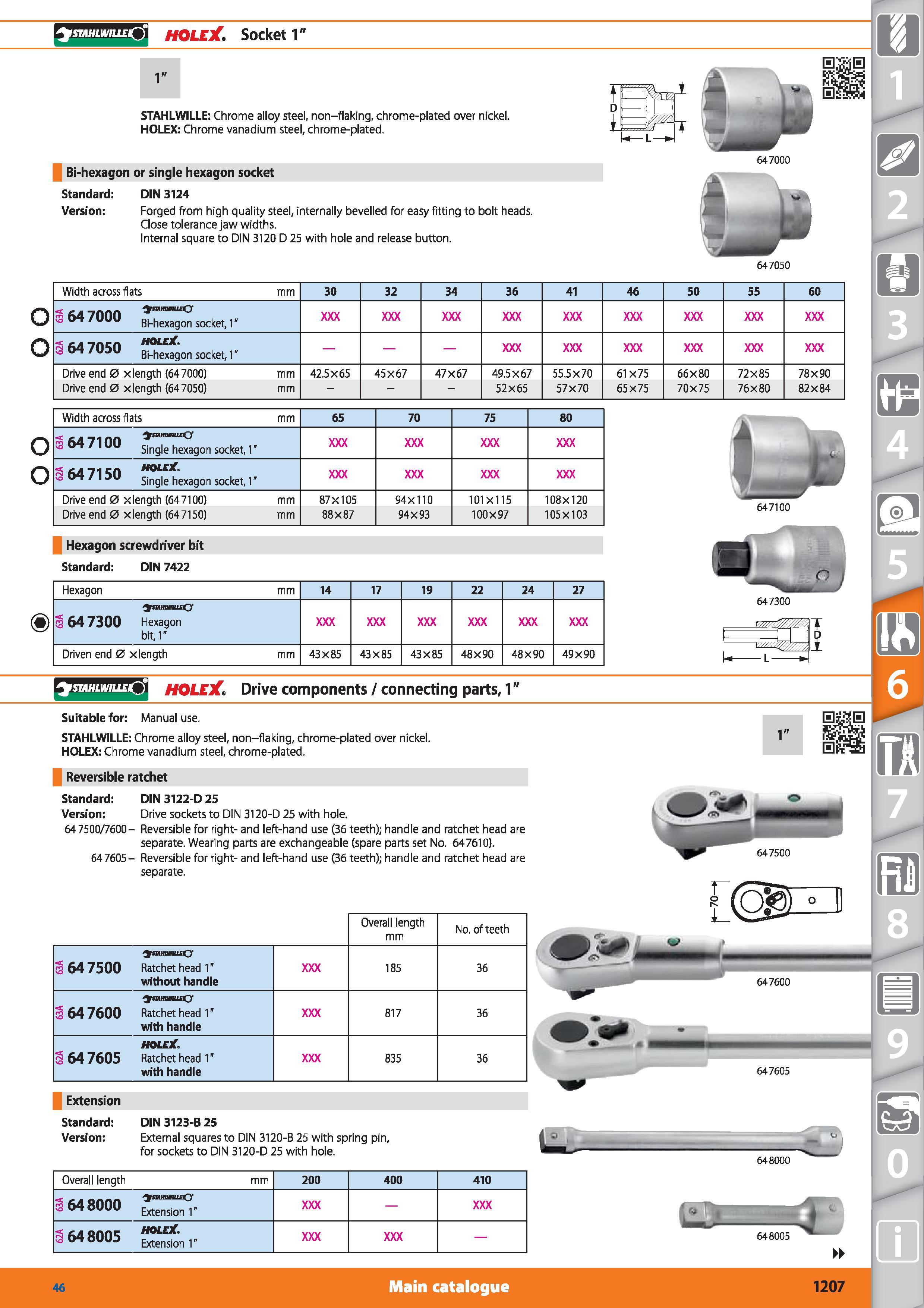

1207 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1207

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1207 1207 ENG Lab2u

stahlwiu.eQ HOLEX Socket 1" 1" STAHLWILLE Chrome alloy steel, non-flaking, chrome-plated over nickel. HOLEX Chrome vanadium steel, chrome-plated. Bi-hexagon or single hexagon socket Standard DIN 3124 Version Forged from high quality steel, internally bevelled for easy fitting to bolt heads. Close tolerance jaw widths. Internal square to DIN 3120 D 25 with hole and release button. 647050 o Width across flats mm 30 32 34 36 41 46 50 55 60 3 647000 hexago socket," 3W7050 Drive end 0 x length (647000) mm 42.5X65 45X67 47X67 49.5X67 55.5X70 61X75 66X80 72X85 78X90 Drive end 0 x length (647050) mm - 52x65 57x70 65x75 70x75 76x80 82x84 Width across flats mm 65 70 75 80 3 647100 Single hexagon socket, 1” s 647150 HOLEX Single hexagon socket, 1” Drive end 0 x length (647100) mm 87X105 94X110 101X115 108X120 Drive end 0 x length (647150) mm 88x87 94X93 100x97 105X103 647100 Hexagon screwdriver bit Standard DIN 7422 Hexagon mm 14 17 19 22 24 27 s 64 7300 mmuaufO' Hexagon bit,1” Driven end 0 x length mm 43x85 43x85 43x85 48x90 48x90 49x90 stahlwille ) HOLEX Drive components / connecting parts, 1" Suitable for Manual use. STAHLWILLE Chrome alloy steel, non-flaking, chrome-plated over nickel. HOLEX Chrome vanadium steel, chrome-plated. 1" Reversible ratchet Standard DIN 3122-D 25 Version Drive sockets to DIN 3120-D 25 with hole. 64 7500/7600- Reversible for right- and left-hand use (36 teeth); handle and ratchet head are separate. Wearing parts are exchangeable (spare parts set No. 647610). 647605- Reversible for right- and left-hand use (36 teeth); handle and ratchet head are separate. Overall length mm No. of teeth 3 647500 Ratchet head 1 ” without handle 185 36 3 647600 SnHUHUfO Ratchet head 1 ” with handle 817 36 s 64 7605 HOLEX Ratchet head 1 ” with handle 835 36 647605 Extension Standard Version DIN 3123-B 25 External squares to DIN 3120-B 25 with spring pin, for sockets to DIN 3120-D 25 with hole. - 648000 Overall length mm 200 400 410 3 648000 Extension 1” 3 648005 holcjC. Extension 1” Main catalogue Hoffmann Group 46 1207
