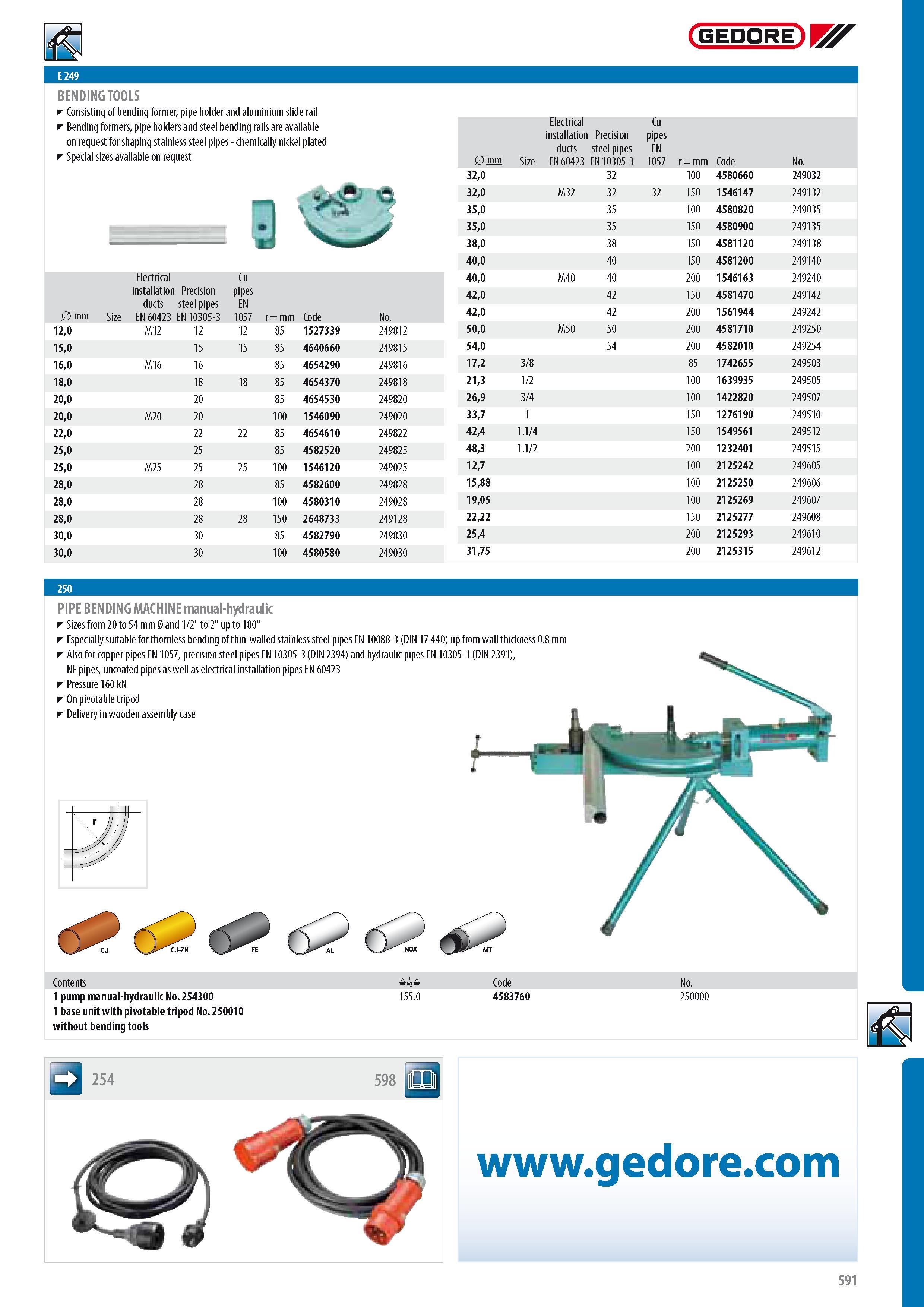

593 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.591

Каталог GEDORE 2014 Слесарный инструмент Стр. 591 0593 ENG Lab2u

GEDORE BENDING TOOLS Consisting of bending former pipe holder and aluminium slide rail Bending formers pipe holders and steel bending rails are available on request for shaping stainless steel pipes - chemically nickel plated Special sizes available on request 0 mm Electrical installation Precision ducts steel pipes Size EN 60423 EN 10305-3 Cu pipes EN 1057 r mm Code No. 120 M12 12 12 85 1527339 249812 150 15 15 85 4640660 249815 160 M16 16 85 4654290 249816 180 18 18 85 4654370 249818 200 20 85 4654530 249820 200 M20 20 100 1 546090 249020 220 22 22 85 4654610 249822 250 25 85 4582520 249825 250 M25 25 25 100 1546120 249025 280 28 85 4582600 249828 280 28 100 4580310 249028 280 28 28 150 2648733 249128 300 30 85 4582790 249830 300 30 100 4580580 249030 0 Size Electrical installation Precision ducts steel pipes EN 60423 EN 10305-3 Cu pipes EN 1057 r mm Code No. 320 32 100 4580660 249032 320 M32 32 32 150 1546147 249132 350 35 100 4580820 249035 350 35 150 4580900 249135 380 38 150 4581120 249138 400 40 150 4581200 249140 400 M40 40 200 1546163 249240 420 42 150 4581470 249142 420 42 200 1 561 944 249242 500 M50 50 200 4581710 249250 540 54 200 4582010 249254 1 72 3 8 85 1 742655 249503 213 1 2 100 1639935 249505 269 3 4 100 1422820 249507 337 1 150 1276190 249510 424 1.1 4 150 1 549561 249512 483 1.1 2 200 1 232401 249515 1 2 7 100 2125242 249605 1 588 100 2125250 249606 1 905 100 2125269 249607 2222 150 2125277 249608 254 200 2125293 249610 3175 200 2125315 249612 PIPE BENDING MACHINE manual-hydraulic Sizes from 20 to 54 mm 0 and 1 2" to 2" up to 180 Especially suitable for thornless bending of thin-walled stainless steel pipes EN 10088-3 (DIN 17 440) up from wall thickness 0.8 mm Also for copper pipes EN 1057 precision steel pipes EN 10305-3 (DIN 2394) and hydraulic pipes EN 10305-1 (DIN 2391) NF pipes uncoated pipes as well as electrical installation pipes EN 60423 Pressure 160 kN On pivotable tripod Delivery in wooden assembly case Contents 1 pump manual-hydraulic No. 254300 1 base unit with pivotable tripod No. 250010 without bending tools 0 155.0 Code 4583760 No. 250000 GEDORE 250 591
