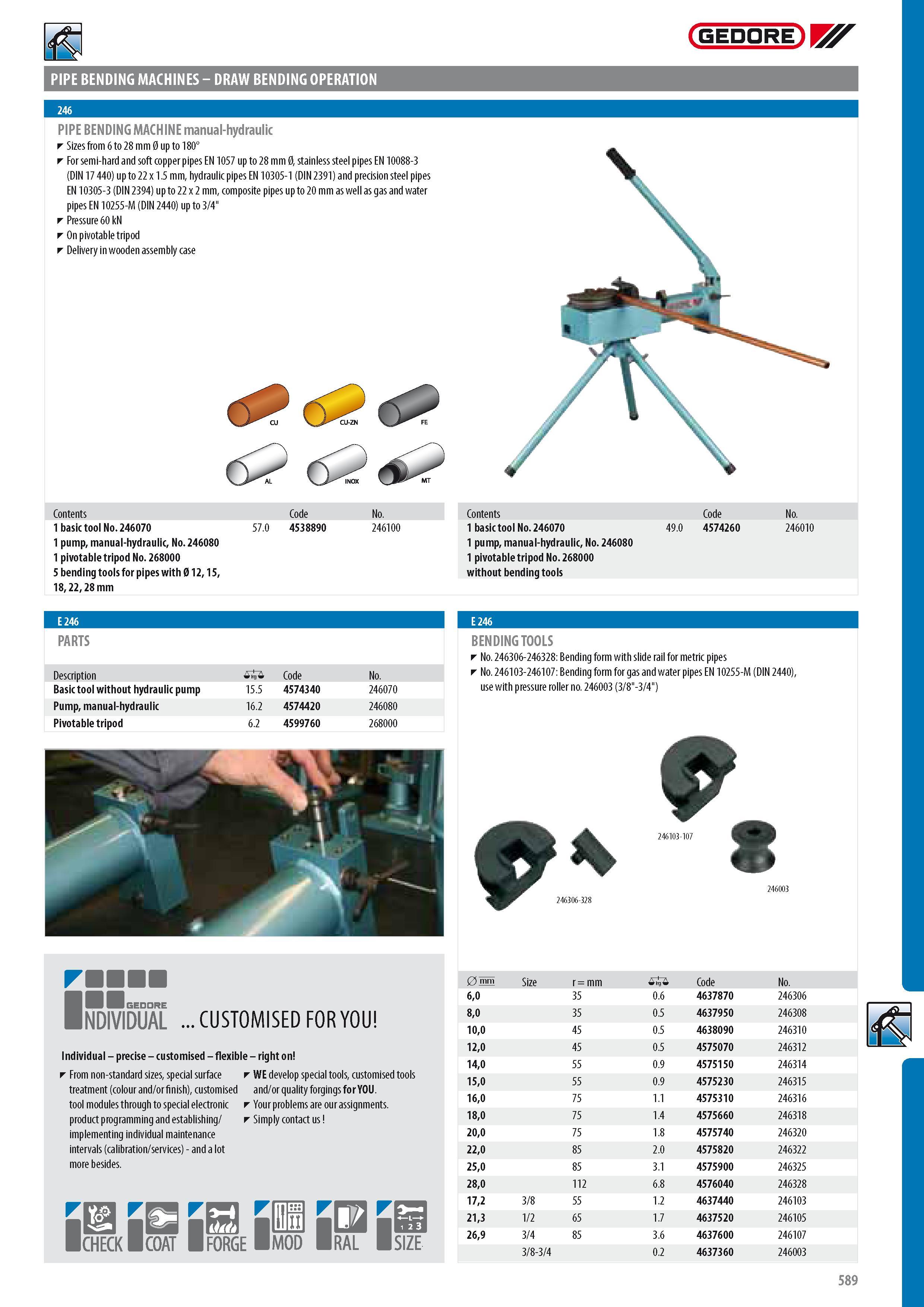

GEDORE PIPE BENDING MACHINES - DRAW BENDING OPERATION PIPE BENDING MACHINE manual-hydraulic Sizes from 6 to 28 mm 0 up to 180 For semi-hard and soft copper pipes EN 1057 up to 28 mm 0 stainless steel pipes EN 10088-3 (DIN 17 440) up to 22 x 1.5 mm hydraulic pipes EN 10305-1 (DIN 2391) and precision steel pipes EN 10305-3 (DIN 2394) up to 22 x 2 mm composite pipes up to 20 mm as well as gas and water pipes EN 10255-M (DIN 2440) up to 3 4" Pressure 60 kN On pivotable tripod Delivery in wooden assembly case Contents Code No. Contents Code No. 1 basic tool No. 246070 57.0 4538890 246100 1 basic tool No. 246070 49.0 4574260 246010 1 pump manual-hydraulic No. 246080 1 pump manual-hydraulic No. 246080 1 pivotable tripod No. 268000 1 pivotable tripod No. 268000 5 bending tools for pipes with 0 12 15 without bending tools 18 22 28 mm 246 PARTS Description 0 Code No. Basic tool without hydraulic pump 15.5 4574340 246070 Pump manual-hydraulic 16.2 4574420 246080 Pivotable tripod 6.2 4599760 268000 rmmmm I CUSTOMISED FOR YOU Individual - precise - customised - flexible - right on From non-standard sizes special surface treatment (colour and or finish) customised tool modules through to special electronic product programming and establishing implementing individual maintenance intervals (calibration services) - and a lot more besides. WE develop special tools customised tools and or quality forgings for YOU. Your problems are our assignments. Simply contact us rrn r IcHECK IcOAT 53 FORGE r H MOD r Iral L BENDING TOOLS No. 246306-246328 Bending form with slide rail for metric pipes No. 246103-246107 Bending form for gas and water pipes EN 10255-M (DIN 2440) use with pressure roller no. 246003 (3 8"-3 4") 246306-328 f S 0 mm Size r mm 0 Code No. 60 35 0.6 4637870 246306 80 35 0.5 4637950 246308 100 45 0.5 4638090 246310 120 45 0.5 4575070 246312 1 40 55 0.9 4575150 246314 150 55 0.9 4575230 246315 160 75 1.1 4575310 246316 180 75 1.4 4575660 246318 200 75 1.8 4575740 246320 220 85 2.0 4575820 246322 250 85 3.1 4575900 246325 280 112 6.8 4576040 246328 172 3 8 55 1.2 4637440 246103 213 1 2 65 1.7 4637520 246105 269 3 4 85 .6 3. 4637600 246107 3 8-3 4 0.2 4637360 246003 589 246003
