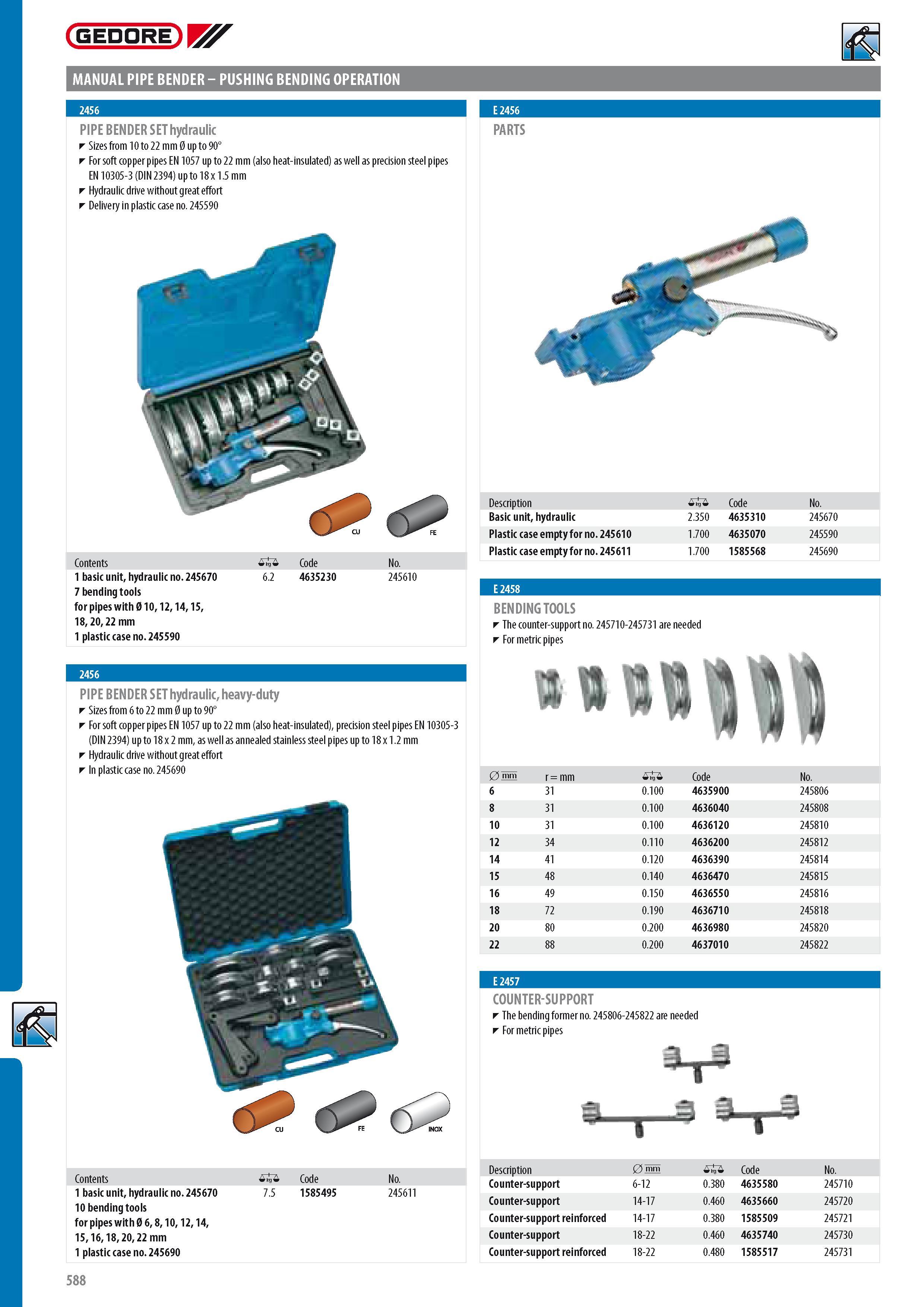

GEDORE MANUAL PIPE BENDER - PUSHING BENDING OPERATION PIPE BENDER SET hydraulic Sizes from 10 to 22 mm 0 up to 90 For soft copper pipes EN 1057 up to 22 mm (also heat-insulated) as well as precision steel pipes EN 10305-3 (DIN 2394) up to 18 x 1.5 mm Hydraulic drive without great effort Delivery in plastic case no. 245590 PARTS Contents 0 Code No. 1 basic unit hydraulic no. 245670 6.2 4635230 245610 7 bending tools for pipes with 0 10 12 14 15 18 20 22 mm 1 plastic case no. 245590 PIPE BENDER SET hydraulic heavy-duty Sizes from 6 to 22 mm 0 up to 90 For soft copper pipes EN 1057 up to 22 mm (also heat-insulated) precision steel pipes EN 10305-3 (DIN 2394) up to 18 x 2 mm as well as annealed stainless steel pipes up to 18 x 1.2 mm Hydraulic drive without great effort In plastic case no. 245690 Contents 1 basic unit hydraulic no. 245670 10 bending tools for pipes with 0 6 8 10 12 14 15 16 18 20 22 mm 1 plastic case no. 245690 0 Code 7.5 1585495 No. 245611 Description -i0 Code No. Basic unit hydraulic 2.350 4635310 245670 Plastic case empty for no. 245610 1.700 4635070 245590 Plastic case empty for no. 245611 1.700 1585568 245690 E 2458 BENDING TOOLS The counter-support no. 245710-245731 are needed For metric pipes 0 r mm 0 Code No. 6 31 0.100 4635900 245806 8 31 0.100 4636040 245808 10 31 0.100 4636120 245810 12 34 0.110 4636200 245812 14 41 0.120 4636390 245814 15 48 0.140 4636470 245815 16 49 0.150 4636550 245816 18 72 0.190 4636710 245818 20 80 0.200 4636980 245820 22 88 0.200 4637010 245822 COUNTER-SUPPORT The bending former no. 245806-245822 are needed For metric pipes Description 0 mm 0 Code No. Counter-support 6-12 0.380 4635580 245710 Counter-support 14-17 0.460 4635660 245720 Counter-support reinforced 14-17 0.380 1585509 245721 Counter-support 18-22 0.460 4635740 245730 Counter-support reinforced 18-22 0.480 1585517 245731 2456 2456 588
