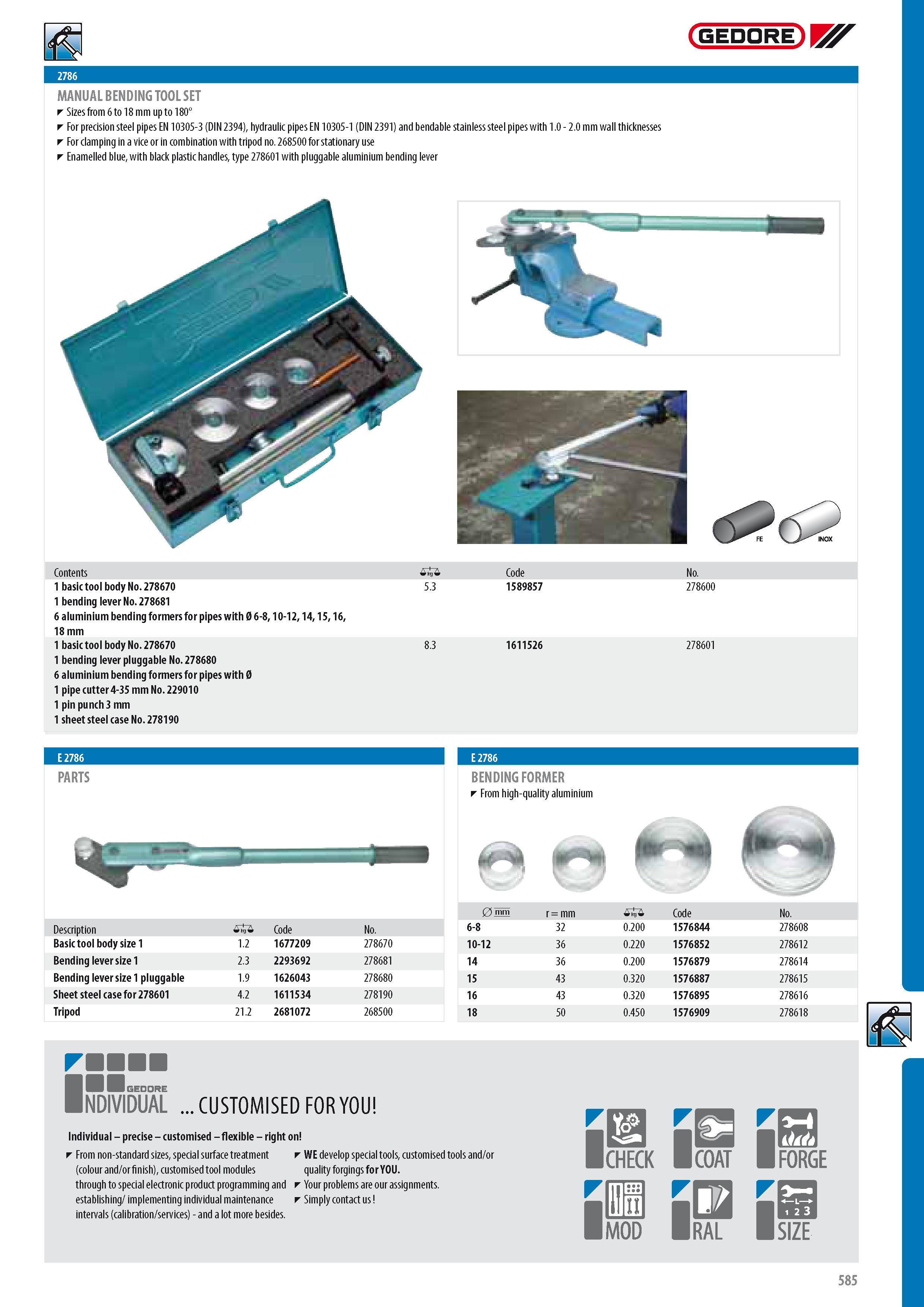

GEDORE MANUAL BENDING TOOL SET Sizes from 6 to 18 mm up to 180 For precision steel pipes EN 10305-3 (DIN 2394) hydraulic pipes EN 10305-1 (DIN 2391) and bendable stainless steel pipes with 1.0 - 2.0 mm wall thicknesses For clamping in a vice or in combination with tripod no. 268500 for stationary use Enamelled blue with black plastic handles type 278601 with pluggable aluminium bending lever Contents 0 Code No. 1 basic tool body No. 278670 1 bending lever No. 278681 6 aluminium bending formers for pipes with 0 6-8 10-12 14 15 16 18 mm 5.3 1589857 278600 1 basic tool body No. 278670 1 bending lever pluggable No. 278680 6 aluminium bending formers for pipes with 0 1 pipe cutter 4-35 mm No. 229010 1 pin punch 3 mm 1 sheet steel case No. 278190 8.3 1611526 278601 E 2786 E 2786 PARTS BENDING FORMER From high-quality aluminium Description 0 Code No. Basic tool body size 1 1.2 1677209 278670 Bending lever size 1 2.3 2293692 278681 Bending lever size 1 pluggable 1.9 1 626043 278680 Sheet steel case for 278601 4.2 1611534 278190 Tripod 21.2 2681072 268500 0 mm r mm 0 Code No. 6-8 32 0.200 1 576844 278608 10-12 36 0.220 1576852 278612 14 36 0.200 1576879 278614 15 43 0.320 1576887 278615 16 43 0.320 1576895 278616 18 50 0.450 1576909 278618 rmmmm I CUSTOMISED FOR YOU Individual - precise - customised - flexible - right on From non-standard sizes special surface treatment WE develop special tools customised tools and or (colour and or finish) customised tool modules quality forgings for YOU. through to special electronic product programming and Your problems are our assignments. establishing implementing individual maintenance Simply contact us intervals (calibration services) - and a lot more besides. 585
