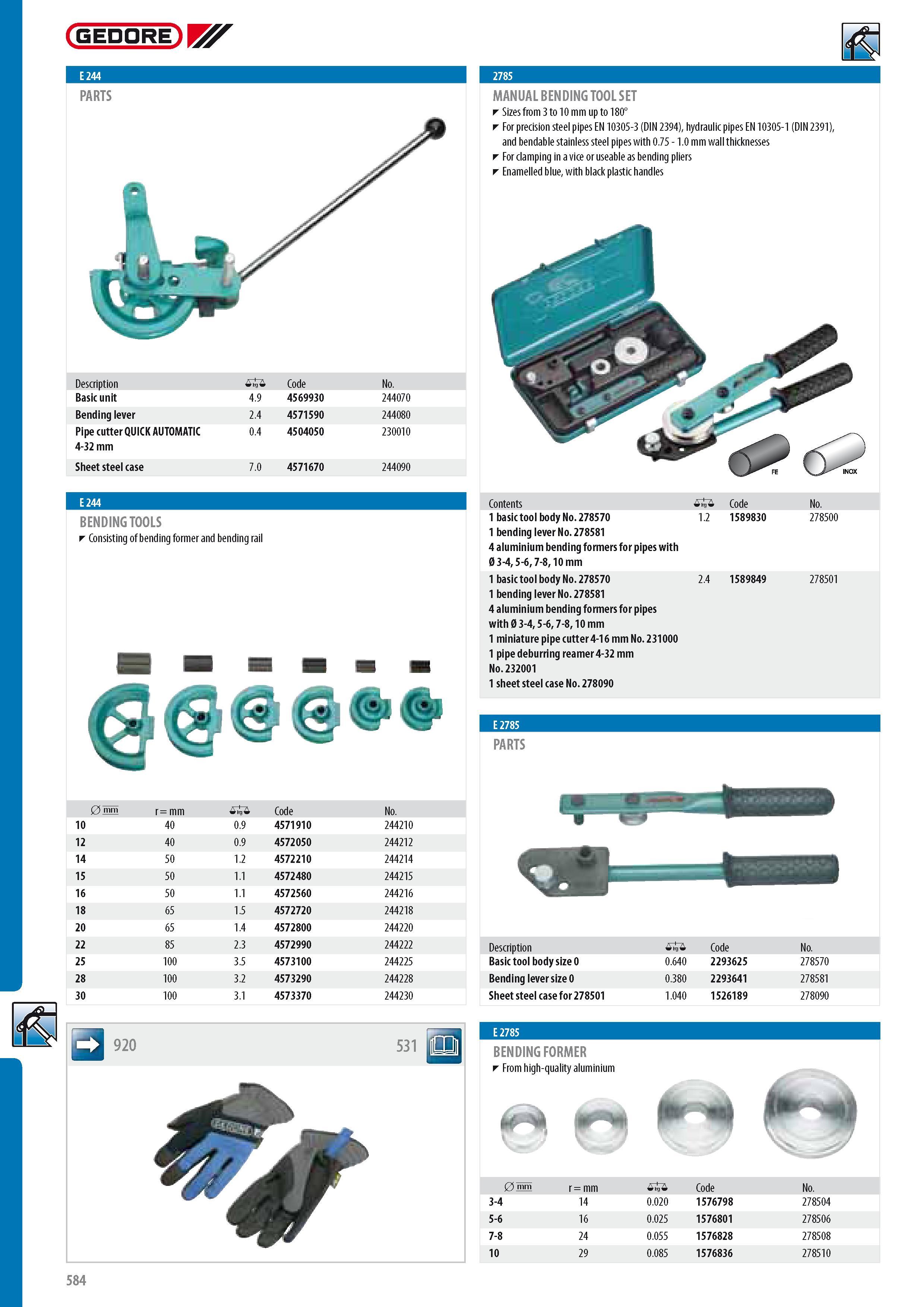

586 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.584

Каталог GEDORE 2014 Слесарный инструмент Стр. 584 0586 ENG Lab2u

GEDORE PARTS Description 0 Code No. Basic unit 4.9 4569930 244070 Bending lever 2.4 4571590 244080 Pipe cutter QUICK AUTOMATIC 0.4 4504050 230010 4-32 mm Sheet steel case 7.0 4571670 244090 BENDING TOOLS Consisting of bending former and bending rail 0 mm r mm 0 Code No. 10 40 0.9 4571910 244210 12 40 0.9 4572050 244212 14 50 1.2 4572210 244214 15 50 1.1 4572480 244215 16 50 1.1 4572560 244216 18 65 1.5 4572720 244218 20 65 1.4 4572800 244220 22 85 2.3 4572990 244222 25 100 3.5 4573100 244225 28 100 3.2 4573290 244228 30 100 3.1 4573370 244230 920 531 n MANUAL BENDING TOOL SET Sizes from 3 to 10 mm up to 180 For precision steel pipes EN 10305-3 (DIN 2394) hydraulic pipes EN 10305-1 (DIN 2391) and bendable stainless steel pipes with 0.75 - 1.0 mm wall thicknesses For clamping in a vice or useable as bending pliers Enamelled blue with black plastic handles Contents 0 Code No. 1 basic tool body No. 278570 1 bending lever No. 278581 4 aluminium bending formers for pipes with 0 3-4 5-6 7-8 10 mm 1.2 1589830 278500 1 basic tool body No. 278570 1 bending lever No. 278581 4 aluminium bending formers for pipes with 0 3-4 5-6 7-8 10 mm 1 miniature pipe cutter 4-16 mm No. 231000 1 pipe deburring reamer 4-32 mm No.232001 1 sheet steel case No. 278090 2.4 1589849 278501 PARTS Description Basic tool body size 0 Bending lever size 0 Sheet steel case for 278501 BENDING FORMER From high-quality aluminium 0 Code 0.640 2293625 0.380 2293641 1.040 1526189 No. 278570 278581 278090 0 r mm 0 Code No. 3-4 14 0.020 1576798 278504 5-6 16 0.025 1576801 278506 7-8 24 0.055 1576828 278508 10 29 0.085 1576836 278510 584
