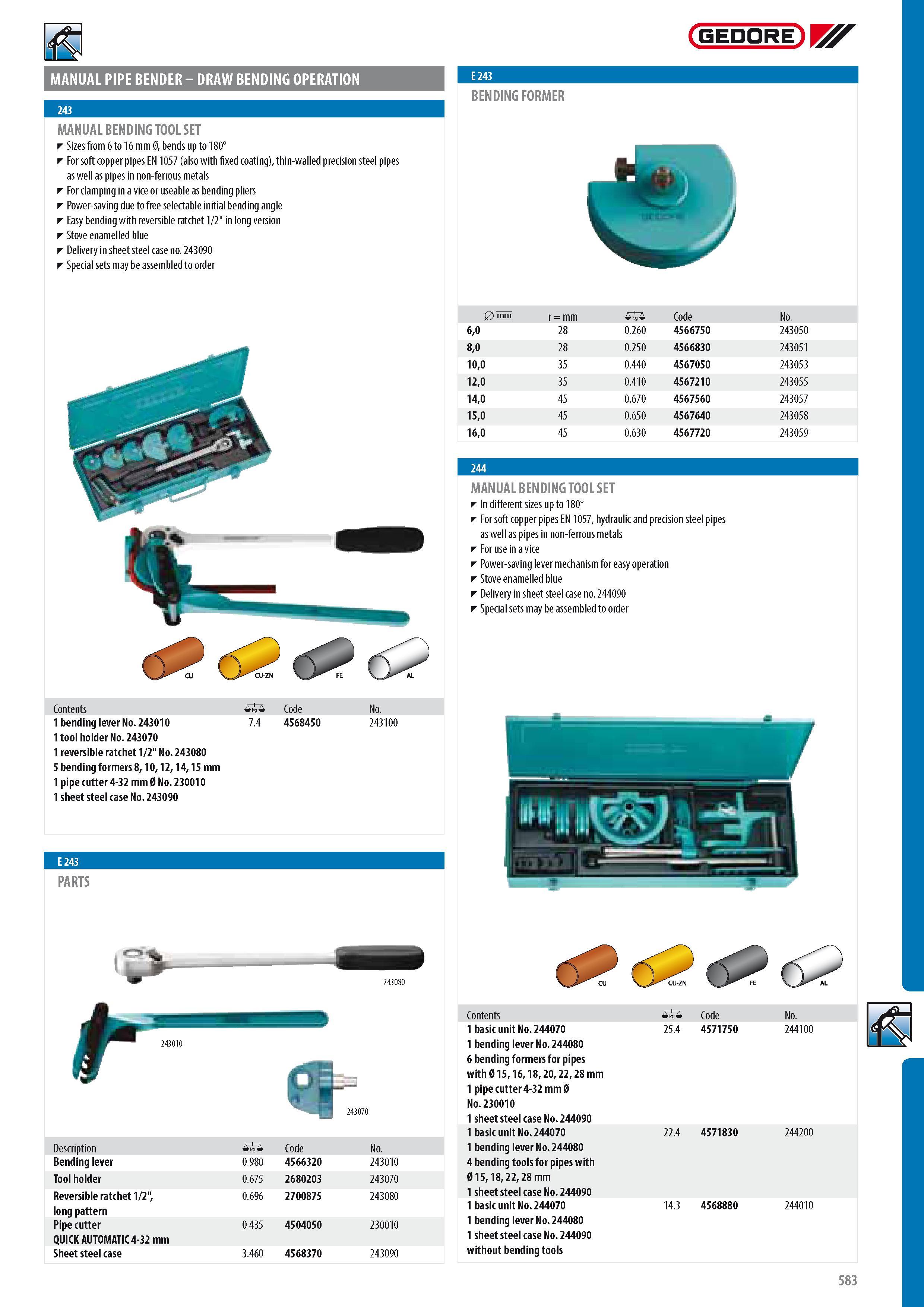

MANUAL PIPE BENDER - DRAW BENDING OPERATION BENDING FORMER GEDORE MANUAL BENDING TOOL SET Sizes from 6 to 16 mm 0 bends up to 180 For soft copper pipes EN 1057 (also with fixed coating) thin-walled precision steel pipes as well as pipes in non-ferrous metals For clamping in a vice or useable as bending pliers Power-saving due to free selectable initial bending angle Easy bending with reversible ratchet 1 2" in long version Stove enamelled blue Delivery in sheet steel case no. 243090 Special sets may be assembled to order 0 mm r mm 0 Code No. 60 28 0.260 4566750 243050 80 28 0.250 4566830 243051 100 35 0.440 4567050 243053 120 35 0.410 4567210 243055 1 40 45 0.670 4567560 243057 150 45 0.650 4567640 243058 160 45 0.630 4567720 243059 244 MANUAL BENDING TOOL SET In different sizes up to 180 For soft copper pipes EN 1057 hydraulic and precision steel pipes as well as pipes in non-ferrous metals For use in a vice Power-saving lever mechanism for easy operation Stove enamelled blue Delivery in sheet steel case no. 244090 Special sets may be assembled to order Contents 1 bending lever No.243010 1 tool holder No. 243070 1 reversible ratchet 1 2" No. 243080 5 bending formers 8 10 12 14 15 mm 1 pipe cutter 4-32 mm 0 No. 230010 1 sheet steel case No. 243090 PARTS 0 7.4 Code 4568450 No. 243100 CS w. 69 243070 Description 0 Code No. Bending lever 0.980 4566320 243010 Tool holder 0.675 2680203 243070 Reversible ratchet 1 2" long pattern 0.696 2700875 243080 Pipe cutter QUICK AUTOMATIC 4-32 mm 0.435 4504050 230010 Sheet steel case 3.460 4568370 243090 Contents 1 basic unit No. 244070 1 bending lever No. 244080 6 bending formers for pipes with 0 15 16 18 20 22 28 mm 1 pipe cutter 4-32 mm 0 No. 230010 1 sheet steel case No. 244090 1 basic unit No. 244070 1 bending lever No. 244080 4 bending tools for pipes with 0 15 18 22 28 mm 1 sheet steel case No. 244090 1 basic unit No. 244070 1 bending lever No. 244080 1 sheet steel case No. 244090 without bending tools 0 Code No. 25.4 4571750 244100 22.4 4571830 244200 14.3 4568880 244010 243 583
