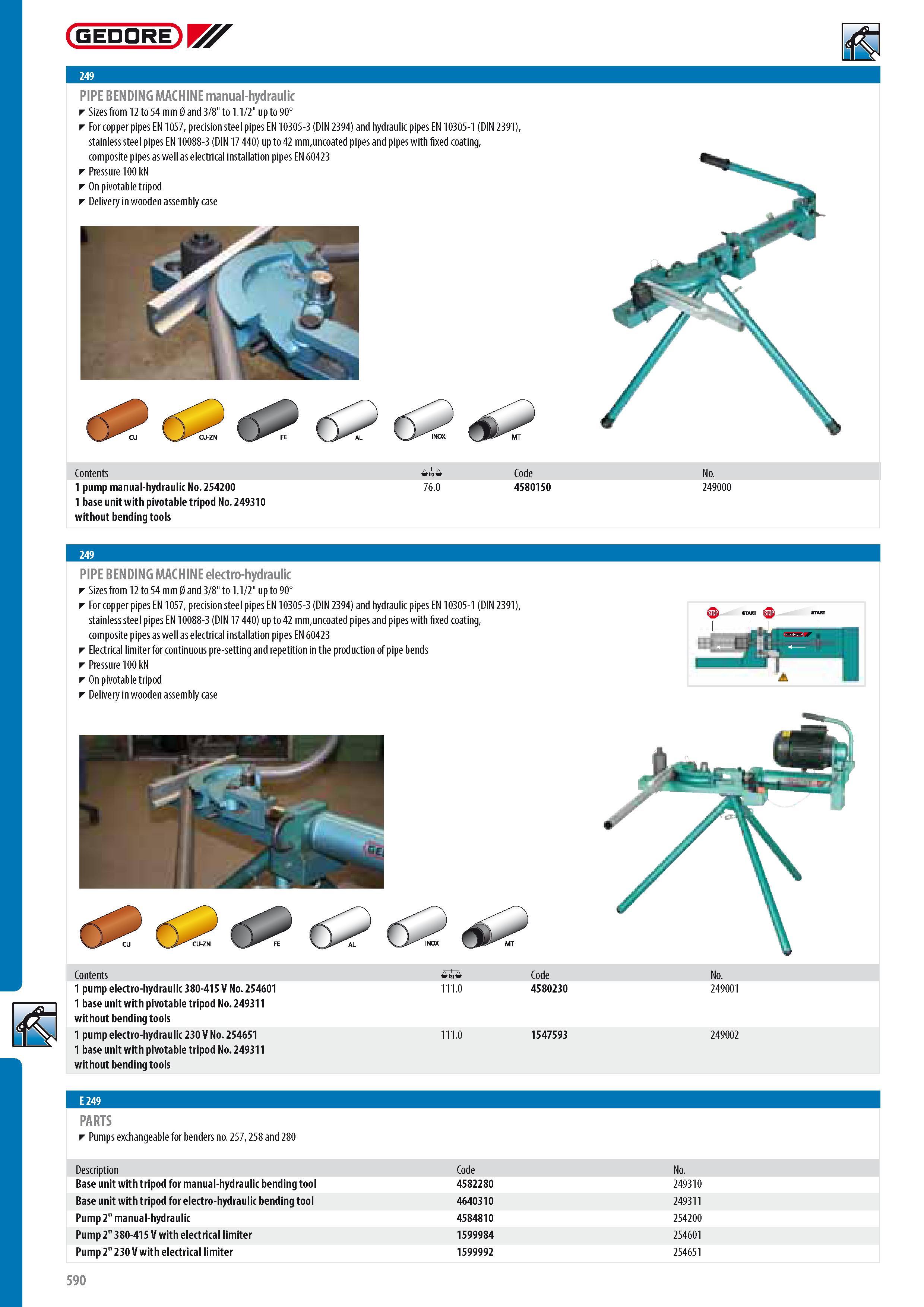

GEDORE PIPE BENDING MACHINE manual-hydraulic Sizes from 12 to 54 mm 0 and 3 8" to 1.1 2" up to 90 For copper pipes EN 1057 precision steel pipes EN 10305-3 (DIN 2394) and hydraulic pipes EN 10305-1 (DIN 2391) stainless steel pipes EN 10088-3 (DIN 17 440) up to 42 mmuncoated pipes and pipes with fixed coating composite pipes as well as electrical installation pipes EN 60423 Pressure 100 kN On pivotable tripod Delivery in wooden assembly case Contents 0 Code No. 1 pump manual-hydraulic No. 254200 1 base unit with pivotable tripod No. 249310 without bending tools 76.0 4580150 249000 249 PIPE BENDING MACHINE electro-hydraulic Sizes from 12 to 54 mm 0 and 3 8" to 1.1 2" up to 90 For copper pipes EN 1057 precision steel pipes EN 10305-3 (DIN 2394) and hydraulic pipes EN 10305-1 (DIN 2391) stainless steel pipes EN 10088-3 (DIN 17 440) up to 42 mmuncoated pipes and pipes with fixed coating composite pipes as well as electrical installation pipes EN 60423 Electrical limiterfor continuous pre-setting and repetition in the production of pipe bends Pressure 100 kN On pivotable tripod Delivery in wooden assembly case Contents 0 Code No. 1 pump electro-hydraulic 380-415 V No. 254601 1 base unit with pivotable tripod No. 249311 without bending tools 111.0 4580230 249001 1 pump electro-hydraulic 230 V No. 254651 1 base unit with pivotable tripod No. 249311 without bending tools 111.0 1 547593 249002 E 249 PARTS Pumps exchangeable for benders no. 257 258 and 280 Description Code No. Base unit with tripod for manual-hydraulic bending tool 4582280 249310 Base unit with tripod for electro-hydraulic bending tool 4640310 249311 Pump 2" manual-hydraulic 4584810 254200 Pump 2" 380-415 V with electrical limiter 1599984 254601 Pump 2" 230 V with electrical limiter 1599992 254651 590 249
