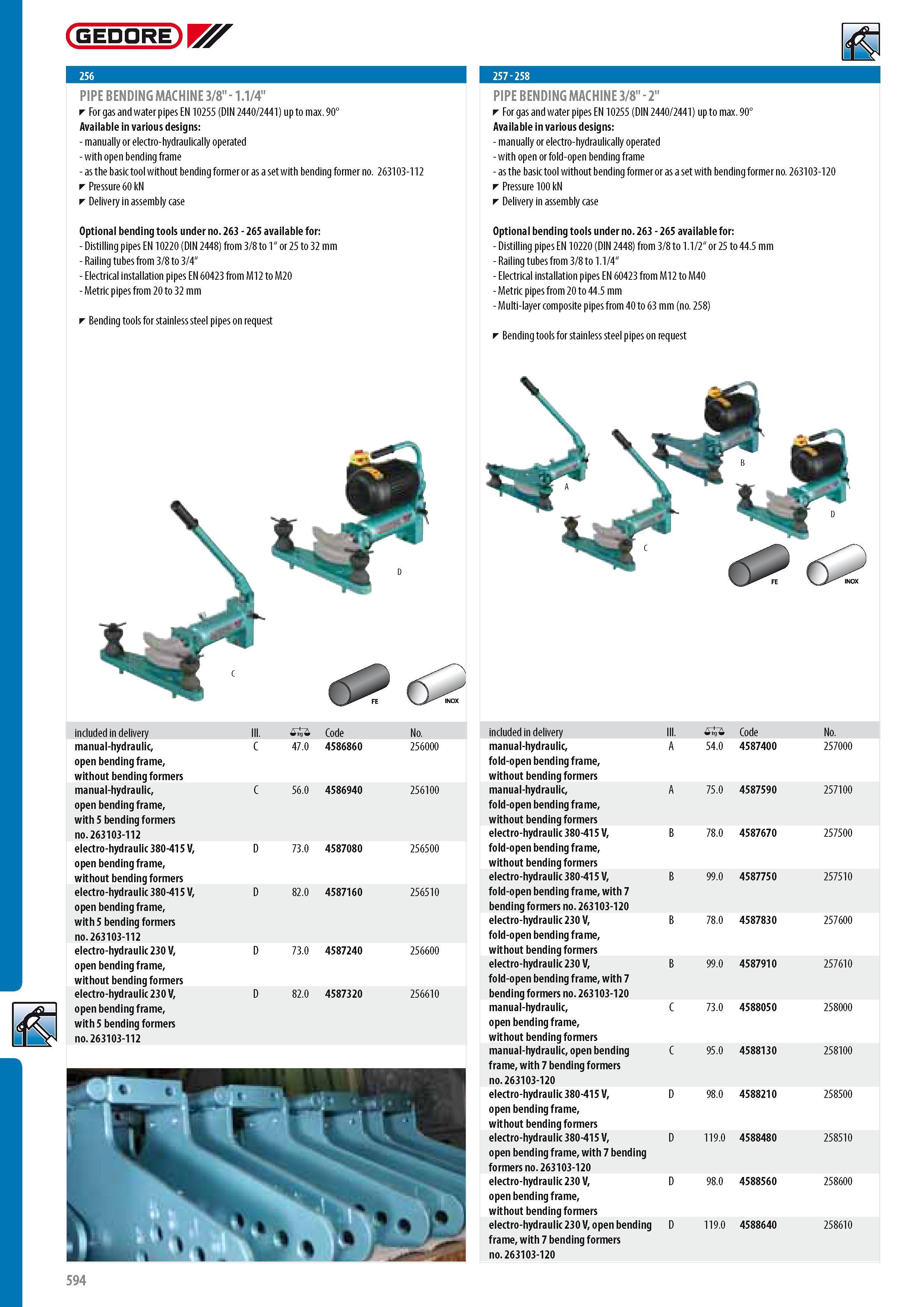

GEDORE PIPE BENDING MACHINE 3 8" - 1.1 4" For gas and water pipes EN 10255 (DIN 2440 2441) up to max. 90 Available in various designs - manually or electro-hydraulically operated - with open bending frame - as the basic tool without bending former or as a set with bending former no. 263103-112 Pressure 60 kN Delivery in assembly case PIPE BENDING MACHINE 3 8" - 2" For gas and water pipes EN 10255 (DIN 2440 2441) up to max. 90 Available in various designs - manually or electro-hydraulically operated - with open or fold-open bending frame - as the basic tool without bending former or as a set with bending former no. 263103-120 Pressure 100 kN Delivery in assembly case Optional bending tools under no. 263 - 265 available for - Distilling pipes EN 10220 (DIN 2448) from 3 8 to 1 or 25 to 32 mm - Railing tubes from 3 8 to 3 4 - Electrical installation pipes EN 60423 from M12 to M20 - Metric pipes from 20 to 32 mm Bending tools for stainless steel pipes on request Optional bending tools under no. 263 - 265 available for - Distilling pipes EN 10220 (DIN 2448) from 3 8 to 1.1 2 or 25 to 44.5 mm - Railing tubes from 3 8 to 1.1 4 - Electrical installation pipes EN 60423 from M12 to M40 - Metric pipes from 20 to 44.5 mm - Multi-layer composite pipes from 40 to 63 mm (no. 258) Bending tools for stainless steel pipes on request included in delivery Ill. 0 Code No. manual-hydraulic open bending frame without bending formers C 47.0 4586860 256000 manual-hydraulic open bending frame with 5 bending formers no.263103-112 C 56.0 4586940 256100 electro-hydraulic 380-415 V open bending frame without bending formers D 73.0 4587080 256500 electro-hydraulic 380-415 V open bending frame with 5 bending formers no.263103-112 D 82.0 4587160 256510 electro-hydraulic 230 V open bending frame without bending formers D 73.0 4587240 256600 electro-hydraulic 230 V D 82.0 4587320 256610 included in delivery Ill. 0 Code No. manual-hydraulic fold-open bending frame without bending formers A 54.0 4587400 257000 manual-hydraulic fold-open bending frame without bending formers A 75.0 4587590 257100 electro-hydraulic 380-415 V fold-open bending frame without bending formers B 78.0 4587670 257500 electro-hydraulic 380-415 V fold-open bending frame with 7 bending formers no. 263103-120 B 99.0 4587750 257510 electro-hydraulic 230 V fold-open bending frame without bending formers B 78.0 4587830 257600 electro-hydraulic 230 V fold-open bending frame with 7 bending formers no. 263103-120 B 99.0 4587910 257610 manual-hydraulic open bending frame without bending formers C 73.0 4588050 258000 manual-hydraulic open bending frame with 7 bending formers no. 263103-120 C 95.0 4588130 258100 electro-hydraulic 380-415 V open bending frame without bending formers D 98.0 4588210 258500 electro-hydraulic 380-415 V open bending frame with 7 bending formers no. 263103-120 D 119.0 4588480 258510 electro-hydraulic 230 V open bending frame without bending formers D 98.0 4588560 258600 electro-hydraulic 230 V open bending frame with 7 bending formers no. 263103-120 D 119.0 4588640 258610 256 257 - 258
