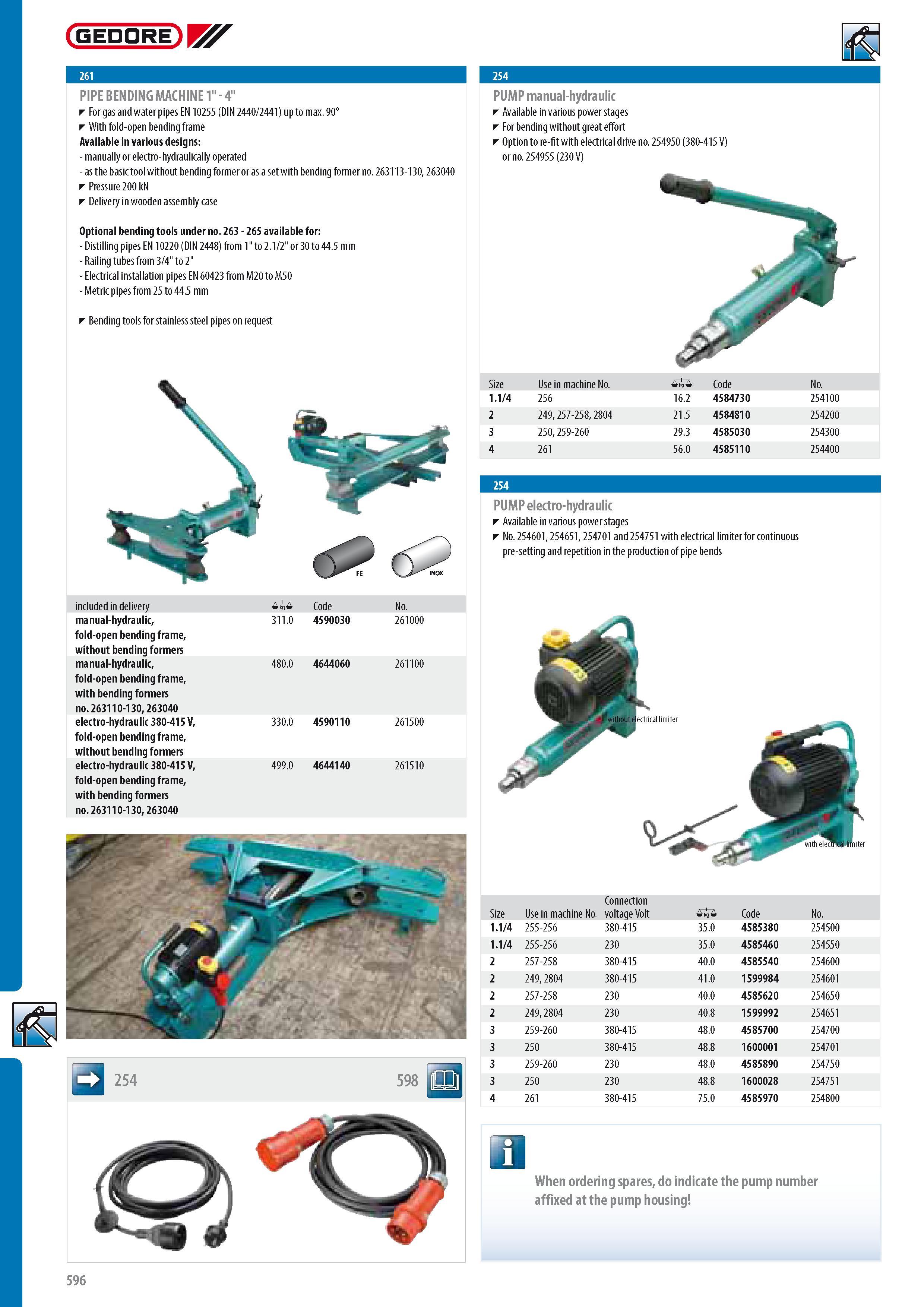

GEDORE PIPE BENDING MACHINE 1" - 4" For gas and water pipes EN 10255 (DIN 2440 2441) up to max. 90 With fold-open bending frame Available in various designs - manually or e lectro- hydrau l ica lly operated - as the basic tool without bending former or as a set with bending former no. 263113-130 263040 Pressure 200 kN Delivery in wooden assembly case Optional bending tools under no. 263 - 265 available for - Distilling pipes EN 10220 (DIN 2448) from 1" to 2.1 2" or 30 to 44.5 mm - Railing tubes from 3 4" to 2" - Electrical installation pipes EN 60423 from M20 to M50 - Metric pipes from 25 to 44.5 mm Bending tools for stainless steel pipes on request included in delivery 0 Code No. manual-hydraulic fold-open bending frame without bending formers 311.0 4590030 261000 manual-hydraulic fold-open bending frame with bending formers no. 263110-130 263040 480.0 4644060 261100 electro-hydraulic 380-415 V fold-open bending frame without bending formers 330.0 4590110 261500 electro-hydraulic 380-415 V fold-open bending frame with bending formers no. 263110-130 263040 499.0 46441 40 261510 PUMP manual-hydraulic Available in various power stages For bending without great effort Option to re-fit with electrical drive no. 254950 (380-415 V) or no. 254955 (230 V) Size Use in machine No. 0 Code No. 1.1 4 256 16.2 4584730 254100 2 249 257-258 2804 21.5 4584810 254200 3 250 259-260 29.3 4585030 254300 4 261 56.0 4585110 254400 254 PUMP electro-hydraulic Available in various power stages No. 254601 254651 254701 and 254751 with electrical limiter for continuous pre-setting and repetition in the production of pipe bends without electrical limiter Size Connection Use in machine No. voltage Volt 0 Code No. 1.1 4 255-256 380-415 35.0 4585380 254500 1.1 4 255-256 230 35.0 4585460 254550 2 257-258 380-415 40.0 4585540 254600 2 249 2804 380-415 41.0 1599984 254601 2 257-258 230 40.0 4585620 254650 2 249 2804 230 40.8 1599992 254651 3 259-260 380-415 48.0 4585700 254700 3 250 380-415 48.8 1600001 254701 3 259-260 230 48.0 4585890 254750 3 250 230 48.8 1600028 254751 4 261 380-415 75.0 4585970 254800 When ordering spares do indicate the pump number affixed at the pump housing 254
