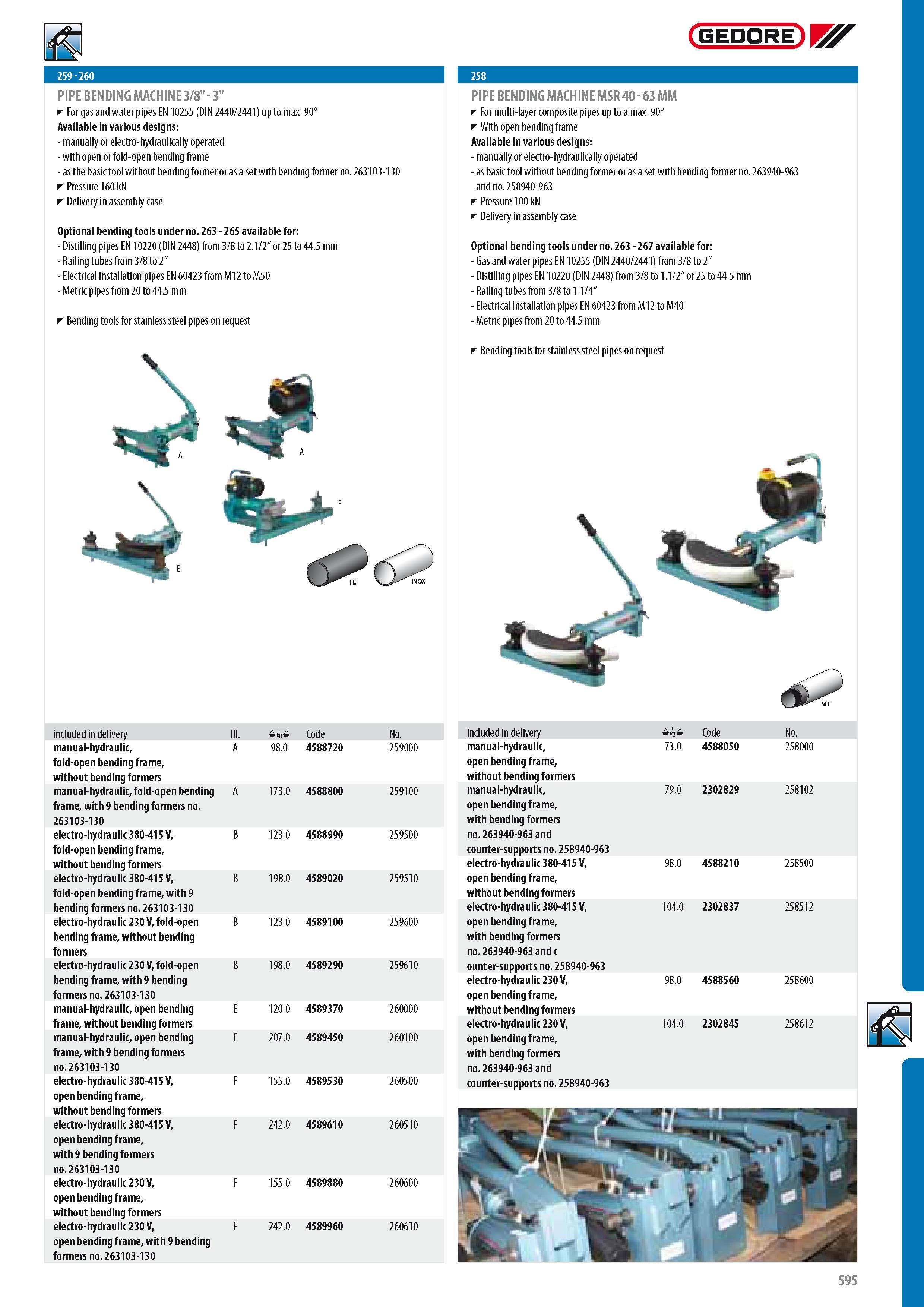

GEDORE PIPE BENDING MACHINE 3 8" - 3" For gas and water pipes EN 10255 (DIN 2440 2441) up to max. 90 Available in various designs - manually or electro-hydraulically operated - with open or fold-open bending frame - as the basic tool without bending former or as a set with bending former no. 263103-130 Pressure 160 kN Delivery in assembly case Optional bending tools under no. 263 - 265 available for - Distilling pipes EN 10220 (DIN 2448) from 3 8 to 2.1 2 or 25 to 44.5 mm - Railing tubes from 3 8 to 2 - Electrical installation pipes EN 60423 from M12 to M50 - Metric pipes from 20 to 44.5 mm Bending tools for stainless steel pipes on request PIPE BENDING MACHINE MSR 40 - 63 MM For multi-layer composite pipes up to a max. 90 With open bending frame Available in various designs - manually or electro-hydraulically operated - as basic tool without bending former or as a set with bending former no. 263940-963 and no. 258940-963 Pressure 100 kN Delivery in assembly case Optional bending tools under no. 263 - 267 available for - Gas and water pipes EN 10255 (DIN 2440 2441) from 3 8 to 2 - Distilling pipes EN 10220 (DIN 2448) from 3 8 to 1.1 2 or 25 to 44.5 mm - Railing tubes from 3 8 to 1.1 4 - Electrical installation pipes EN 60423 from M12 to M40 - Metric pipes from 20 to 44.5 mm Bending tools for stainless steel pipes on request included in delivery Ill. 0 Code No. manual-hydraulic fold-open bending frame without bending formers A 98.0 4588720 259000 manual-hydraulic fold-open bending frame with 9 bending formers no. 263103-130 A 173.0 4588800 259100 electro-hydraulic 380-415 V fold-open bending frame without bending formers B 123.0 4588990 259500 electro-hydraulic 380-415 V fold-open bending frame with 9 bending formers no. 263103-130 B 198.0 4589020 259510 electro-hydraulic 230 V fold-open bending frame without bending formers B 123.0 4589100 259600 electro-hydraulic 230 V fold-open bending frame with 9 bending formers no. 263103-130 B 198.0 4589290 259610 manual-hydraulic open bending frame without bending formers E 120.0 4589370 260000 manual-hydraulic open bending frame with 9 bending formers no. 263103-130 E 207.0 4589450 260100 electro-hydraulic 380-415 V open bending frame without bending formers F 155.0 4589530 260500 electro-hydraulic 380-415 V open bending frame with 9 bending formers no. 263103-130 F 242.0 4589610 260510 electro-hydraulic 230 V open bending frame without bending formers F 155.0 4589880 260600 electro-hydraulic 230 V open bending frame with 9 bending formers no. 263103-130 F 242.0 4589960 260610 included in delivery 0 Code No. manual-hydraulic open bending frame without bending formers 73.0 4588050 258000 manual-hydraulic open bending frame with bending formers no. 263940-963 and counter-supports no. 258940-963 79.0 2302829 258102 electro-hydraulic 380-415 V open bending frame without bending formers 98.0 4588210 258500 electro-hydraulic 380-415 V open bending frame with bending formers no. 263940-963 and c ounter-supports no. 258940-963 104.0 2302837 258512 electro-hydraulic 230 V open bending frame without bending formers 98.0 4588560 258600 electro-hydraulic 230 V open bending frame with bending formers no. 263940-963 and counter-supports no. 258940-963 104.0 2302845 258612 mm 595 259 - 260 258
