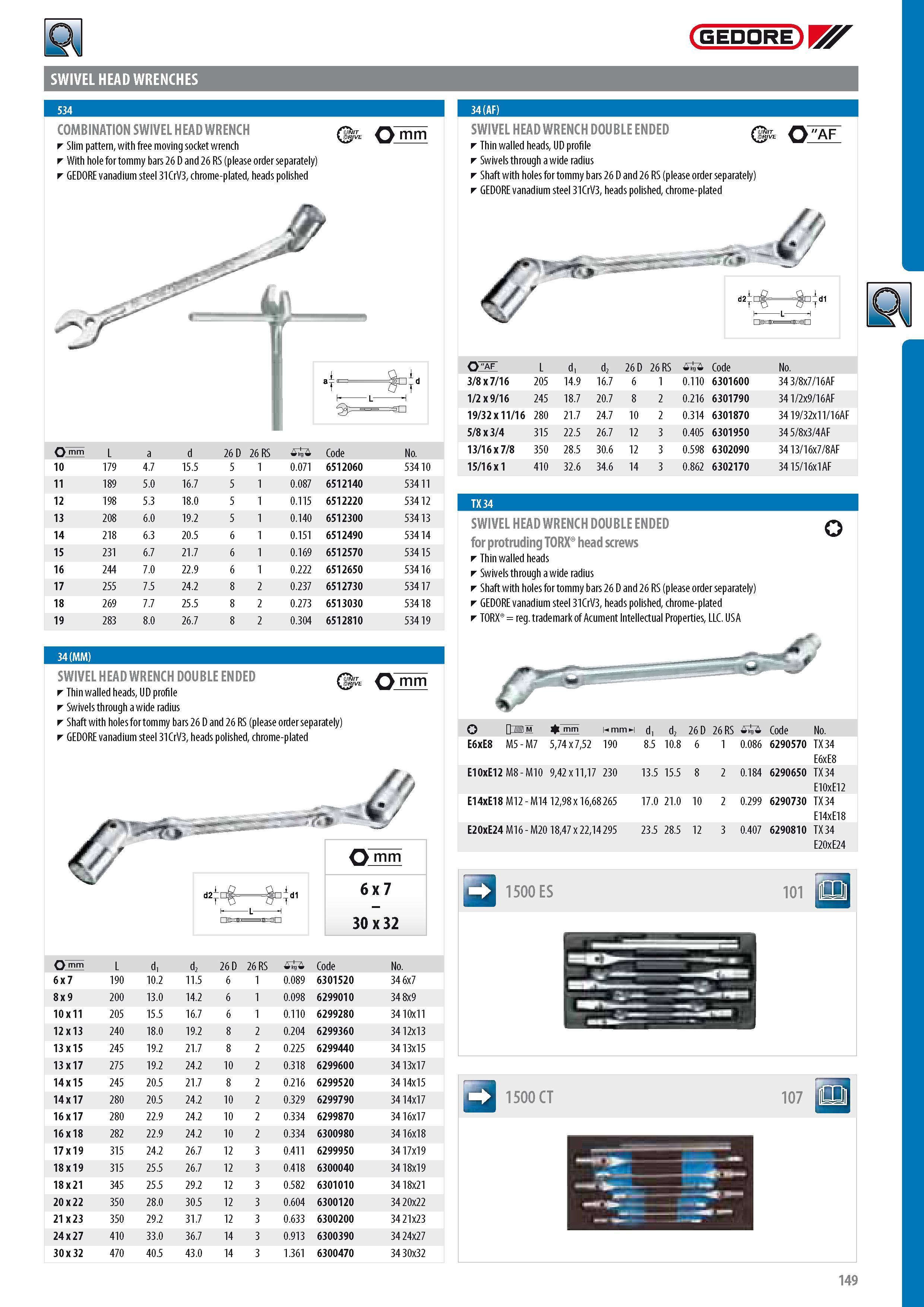

GEDORE SWIVEL HEAD WRENCHES COMBINATION SWIVEL HEAD WRENCH Slim pattern with free moving socket wrench With hole for tommy bars 26 D and 26 RS (please order separately) GEDORE vanadium steel 31CrV3 chrome-plated heads polished (3 mm mm L a d 10 179 4.7 15.5 11 189 5.0 16.7 12 198 5.3 18.0 13 208 6.0 19.2 14 218 6.3 20.5 15 231 6.7 21.7 16 244 7.0 22.9 17 255 7.5 24.2 18 269 7.7 25.5 19 283 8.0 26.7 26 D 26 RS 5 5 5 5 6 6 6 8 8 8 0 Code 0.071 0.087 0.115 0.140 0.151 0.169 0.222 0.237 0.273 0.304 6512060 6512140 6512220 6512300 6512490 6512570 6512650 6512730 6513030 6512810 No. 534 10 534 11 534 12 534 13 534 14 534 15 534 16 534 17 534 18 534 19 SWIVEL HEAD WRENCH DOUBLE ENDED Thin walled heads UD profile Swivels through a wide radius Shaft with holes for tommy bars 26 D and 26 RS (please order separately) GEDORE vanadium steel 31CrV3 heads polished chrome-plated ' j Mb" m L d1 d2 26 D 26 RS -0 Code No. 6 x 7 190 10.2 11.5 6 1 0.089 6301520 34 6x7 8 x 9 200 13.0 14.2 6 1 0.098 6299010 34 8x9 10 x 11 205 15.5 16.7 6 1 0.110 6299280 3410x11 12 x 13 240 18.0 19.2 8 2 0.204 6299360 34 12x13 13 x 15 245 19.2 21.7 8 2 0.225 6299440 34 13x15 13 x 17 275 19.2 24.2 10 2 0.318 6299600 34 13x17 14 x 15 245 20.5 21.7 8 2 0.216 6299520 34 14x15 14 x 17 280 20.5 24.2 10 2 0.329 6299790 34 14x17 16 x 17 280 22.9 24.2 10 2 0.334 6299870 34 16x17 16 x 18 282 22.9 24.2 10 2 0.334 6300980 34 16x18 17 x 19 315 24.2 26.7 12 3 0.411 6299950 34 17x19 18 x 19 315 25.5 26.7 12 3 0.418 6300040 34 18x19 18 x 21 345 25.5 29.2 12 3 0.582 6301010 34 18x21 20 x 22 350 28.0 30.5 12 3 0.604 6300120 34 20x22 21 x 23 350 29.2 31.7 12 3 0.633 6300200 34 21x23 24 x 27 410 33.0 36.7 14 3 0.913 6300390 34 24x27 30 x 32 470 40.5 43.0 14 3 1.361 6300470 34 30x32 SWIVEL HEAD WRENCH DOUBLE ENDED r Thin walled heads UD profile Swivels through a wide radius Shaft with holes for tommy bars 26 D and 26 RS (please order separately) GEDORE vanadium steel 31CrV3 heads polished chrome-plated 3 Q"af SWIVEL HEAD WRENCH DOUBLE ENDED for protruding TORX head screws Thin walled heads Swivels through a wide radius Shaft with holes for tommy bars 26 D and 26 RS (please order separately) GEDORE vanadium steel 31CrV3 heads polished chrome-plated TORX reg. trademark of Acument Intellectual Properties LLC. USA o O & mm HmmH d1 d2 26 D 26 RS 0'iw Code No. E6xE8 M5 - M7 574 x 752 190 8.5 10.8 6 1 0.086 6290570 TX 34 E6xE8 E10xE12 M8 - M10 942 x 1117 230 13.5 15.5 8 2 0.184 6290650 TX 34 E10xE12 E14xE18 M12- M14 1298 x 1668265 17.0 21.0 10 2 0.299 6290730 TX 34 E14xE18 E20xE24 M16 - M20 1847 x 2214295 23.5 28.5 12 3 0.407 6290810 TX 34 E20xE24 3 5 O O C 1 o 1 n Q"af L d1 d2 26 D 26 RS -0 Code No. 3 8 x 7 16 205 14.9 16.7 6 1 0.110 6301600 34 3 8x7 16AF 1 2 x 9 16 245 18.7 20.7 8 2 0.216 6301790 34 1 2x9 16AF 19 32 x 11 16 0 8 2 21.7 24.7 10 2 0.314 6301870 34 19 32x11 16AF 5 8 x 3 4 315 22.5 26.7 12 3 0.405 6301950 34 5 8x3 4AF 13 16 x 7 8 350 28.5 .6 0. 3 12 3 0.598 6302090 34 13 16x7 8AF 15 16 x 1 410 32.6 34.6 14 3 0.862 6302170 34 15 16x1AF 534 149
