154 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.152

Каталог GEDORE 2014 Слесарный инструмент Стр. 152 0154 ENG Lab2u

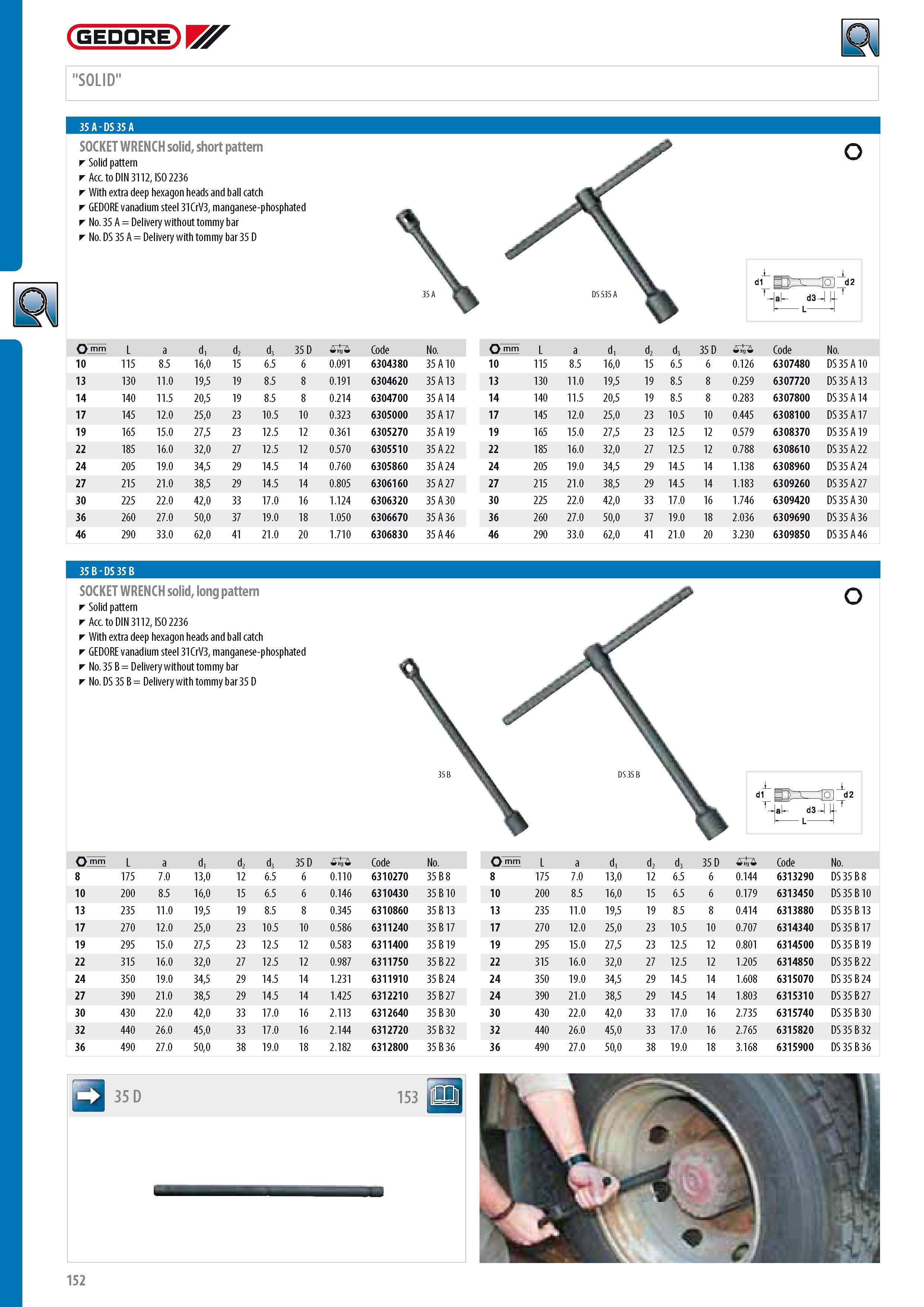

GEDORE "SOLID" SOCKET WRENCH solid short pattern Solid pattern Acc. to DIN 3112 ISO 2236 With extra deep hexagon heads and ball catch GEDORE vanadium steel 31CrV3 manganese-phosphated No. 35 A Delivery without tommy bar No. DS 35 A Delivery with tommy bar 35 D Q mm 10 13 14 17 19 22 24 27 30 36 46 o Eli 12 L a d1 d2 da 35 D 0 Code No. m L a d1 d2 d3 35 D -i0 Code No. 115 8.5 160 15 6.5 6 0.091 6304380 35 A 10 10 115 8.5 160 15 6.5 6 0.126 6307480 DS 35 A 10 130 11.0 195 19 8.5 8 0.191 6304620 35 A 13 13 130 11.0 195 19 8.5 8 0.259 6307720 DS 35 A 13 140 11.5 205 19 8.5 8 0.214 6304700 35 A 14 14 140 11.5 205 19 8.5 8 0.283 6307800 DS 35 A 14 145 12.0 250 23 10.5 10 0.323 6305000 35 A 17 17 145 12.0 250 23 10.5 10 0.445 6308100 DS 35 A 17 165 15.0 275 23 12.5 12 0.361 6305270 35 A 19 19 165 15.0 275 23 12.5 12 0.579 6308370 DS 35 A 19 185 16.0 320 27 12.5 12 0.570 6305510 35 A 22 22 185 16.0 320 27 12.5 12 0.788 6308610 DS 35 A 22 205 19.0 345 29 14.5 14 0.760 6305860 35 A 24 24 205 19.0 345 29 14.5 14 1.138 6308960 DS 35 A 24 215 21.0 385 29 14.5 14 0.805 6306160 35 A 27 27 215 21.0 385 29 14.5 14 1.183 6309260 DS 35 A 27 225 22.0 420 33 17.0 16 1.124 6306320 35 A 30 30 225 22.0 420 33 17.0 16 1.746 6309420 DS 35 A 30 260 27.0 500 37 19.0 18 1.050 6306670 35 A 36 36 260 27.0 500 37 19.0 18 2.036 6309690 DS 35 A 36 290 33.0 620 41 21.0 20 1.710 6306830 35 A 46 46 290 33.0 620 41 21.0 20 3.230 6309850 DS 35 A 46 SOCKET WRENCH solid long pattern Solid pattern Acc. to DIN 3112 ISO 2236 With extra deep hexagon heads and ball catch GEDORE vanadium steel 31CrV3 manganese-phosphated No. 35 B Delivery without tommy bar No. DS 35 B Delivery with tommy bar 35 D o d1 C IcTl d2 ak d3- m L a d1 d2 d3 35 D 0 Code No. Q mm L a d1 d2 d3 35 D 0 Code No. 8 175 7.0 130 12 6.5 6 0.110 6310270 35 B 8 8 175 7.0 130 12 6.5 6 0.144 6313290 DS 35 B 8 10 200 8.5 160 15 6.5 6 0.146 6310430 35 B 10 10 200 8.5 160 15 6.5 6 0.179 6313450 DS 35 B 10 13 235 11.0 195 19 8.5 8 0.345 6310860 35 B 13 13 235 11.0 195 19 8.5 8 0.414 6313880 DS 35 B 13 17 270 12.0 250 23 10.5 10 0.586 6311240 35 B 17 17 270 12.0 250 23 10.5 10 0.707 6314340 DS 35 B 17 19 295 15.0 275 23 12.5 12 0.583 6311400 35 B 19 19 295 15.0 275 23 12.5 12 0.801 6314500 DS 35 B 19 22 315 16.0 320 27 12.5 12 0.987 6311750 35 B 22 22 315 16.0 320 27 12.5 12 1.205 6314850 DS 35 B 22 24 350 19.0 345 29 14.5 14 1.231 6311910 35 B 24 24 350 19.0 345 29 14.5 14 1.608 6315070 DS 35 B 24 27 390 21.0 385 29 14.5 14 1.425 6312210 35 B 27 24 390 21.0 385 29 14.5 14 1.803 6315310 DS 35 B 27 30 430 22.0 420 33 17.0 16 2.113 6312640 35 B 30 30 430 22.0 420 33 17.0 16 2.735 6315740 DS 35 B 30 32 440 26.0 450 33 17.0 16 2.144 6312720 35 B 32 32 440 26.0 450 33 17.0 16 2.765 6315820 DS35B32 36 490 27.0 500 38 19.0 18 2.182 6312800 35 B 36 36 490 27.0 500 38 19.0 18 3.168 6315900 DS 35 B 36 A 35 D 152
