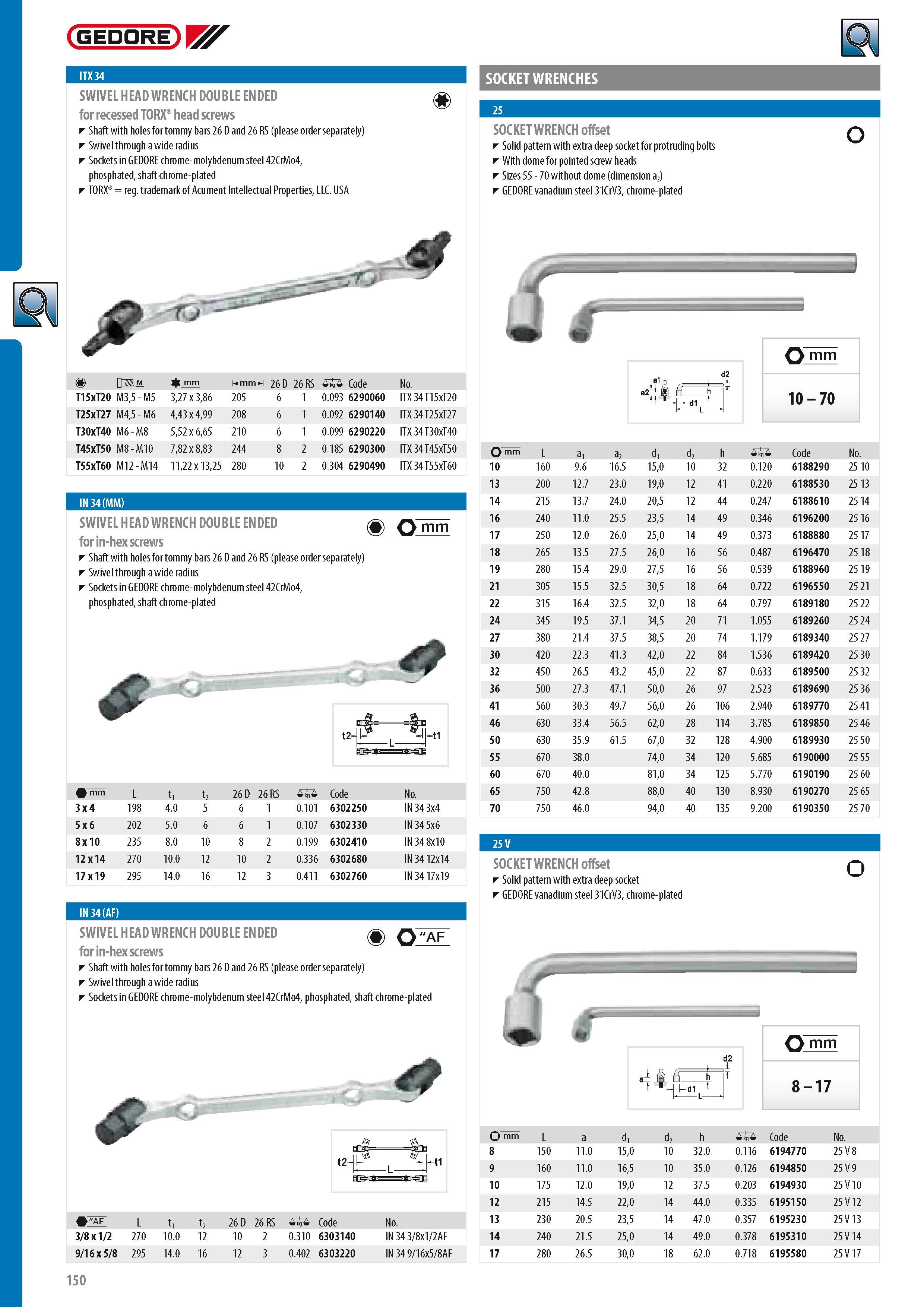

GEDORE SWIVEL HEAD WRENCH DOUBLE ENDED for recessed TORX head screws Shaft with holes for tommy bars 26 D and 26 RS (please order separately) Swivel through a wide radius Sockets in GEDORE chrome-molybdenum steel 42CrMo4 phosphated shaft chrome-plated TORX reg. trademark of Acument Intellectual Properties LLC. USA 7 SOCKET WRENCHES SOCKET WRENCH offset Solid pattern with extra deep socket for protruding bolts With dome for pointed screw heads Sizes 55 - 70 without dome (dimension a2) GEDORE vanadium steel 31CrV3 chrome-plated o 25 7 m mm m mm ml 26 D 26 RS 0 Code No. T15xT20 M35 - M5 327 x 386 205 6 1 0.093 6290060 ITX 34 T15xT20 T25xT27 M45 - M6 443 x 499 208 6 1 0.092 6290140 ITX 34 T25xT27 T30xT40 M6 - M8 552 x 665 210 6 1 0.099 6290220 ITX 34 T30xT40 T45xT50 M8 - M10 782 x 883 244 8 2 0.185 6290300 ITX 34 T45xT50 T55xT60 M12 - M14 1122 x 1325 280 10 2 0.304 6290490 ITX 34 T55xT60 IN 34 (MM) SWIVEL HEAD WRENCH DOUBLE ENDED for in-hex screws Shaft with holes for tommy bars 26 D and 26 RS (please order separately) Swivel through a wide radius Sockets in GEDORE chrome-molybdenum steel 42CrMo4 phosphated shaft chrome-plated 5 Q mm mm L t1 t2 26 D 26 RS 0 Code No. 3 x 4 198 4.0 5 6 1 0.101 6302250 IN 34 3x4 5 x 6 202 5.0 6 6 1 0.107 6302330 IN 34 5x6 8 x 10 235 8.0 10 8 2 0.199 6302410 IN 34 8x10 12 x 14 270 10.0 12 10 2 0.336 6302680 IN 34 12x14 17 x 19 295 14.0 16 12 3 0.411 6302760 IN 3417x19 St d2 Q mm 10 - 70 10 13 14 16 17 18 19 21 22 24 27 30 32 36 41 46 50 55 60 65 70 SOCKET WRENCH offset Solid pattern with extra deep socket GEDORE vanadium steel 31CrV3 chrome-plated L a1 a2 d1 d2 h 0 Code No. 160 9.6 16.5 150 10 32 0.120 6188290 25 10 200 12.7 23.0 190 12 41 0.220 6188530 25 13 215 13.7 24.0 205 12 44 0.247 6188610 25 14 240 11.0 25.5 235 14 49 0.346 6196200 25 16 250 12.0 26.0 250 14 49 0.373 6188880 25 17 265 13.5 27.5 260 16 56 0.487 6196470 25 18 280 15.4 29.0 275 16 56 0.539 6188960 25 19 305 15.5 32.5 305 18 64 0.722 6196550 25 21 315 16.4 32.5 320 18 64 0.797 6189180 25 22 345 19.5 37.1 345 20 71 1.055 6189260 25 24 380 21.4 37.5 385 20 74 1.179 6189340 25 27 420 22.3 41.3 420 22 84 1.536 6189420 25 30 450 26.5 43.2 450 22 87 0.633 6189500 25 32 500 27.3 47.1 500 26 97 2.523 6189690 25 36 560 30.3 49.7 560 26 106 2.940 6189770 25 41 630 33.4 56.5 620 28 114 3.785 6189850 25 46 630 35.9 61.5 670 32 128 4.900 6189930 25 50 670 38.0 740 34 120 5.685 6190000 25 55 670 40.0 810 34 125 5.770 6190190 25 60 750 42.8 880 40 130 8.930 6190270 25 65 750 46.0 940 40 135 9.200 6190350 25 70 o 5 Q"af SWIVEL HEAD WRENCH DOUBLE ENDED for in-hex screws Shaft with holes for tommy bars 26 D and 26 RS (please order separately) Swivel through a wide radius Sockets in GEDORE chrome-molybdenum steel 42CrMo4 phosphated shaft chrome-plated L t1 t2 26 D 26 RS 0 Code No. 3 8 x 1 2 270 10.0 12 10 2 0.310 6303140 IN 34 3 8x1 2AF 9 16 x 5 8 295 14.0 16 12 3 0.402 6303220 IN 34 9 16x5 8AF J d2 i T Q mm 8 - 17 Q mm L a d1 d2 h 0 Code No. 8 150 11.0 150 10 32.0 0.116 6194770 25 V 8 9 160 11.0 165 10 35.0 0.126 6194850 25 V 9 10 175 12.0 190 12 37.5 0.203 6194930 25 V 10 12 215 14.5 220 14 44.0 0.335 6195150 25 V 12 13 230 20.5 235 14 47.0 0.357 6195230 25 V 13 14 240 21.5 250 14 49.0 0.378 6195310 25 V 14 17 280 26.5 300 18 62.0 0.718 6195580 25 V 17 IN 34 (AF) 150
