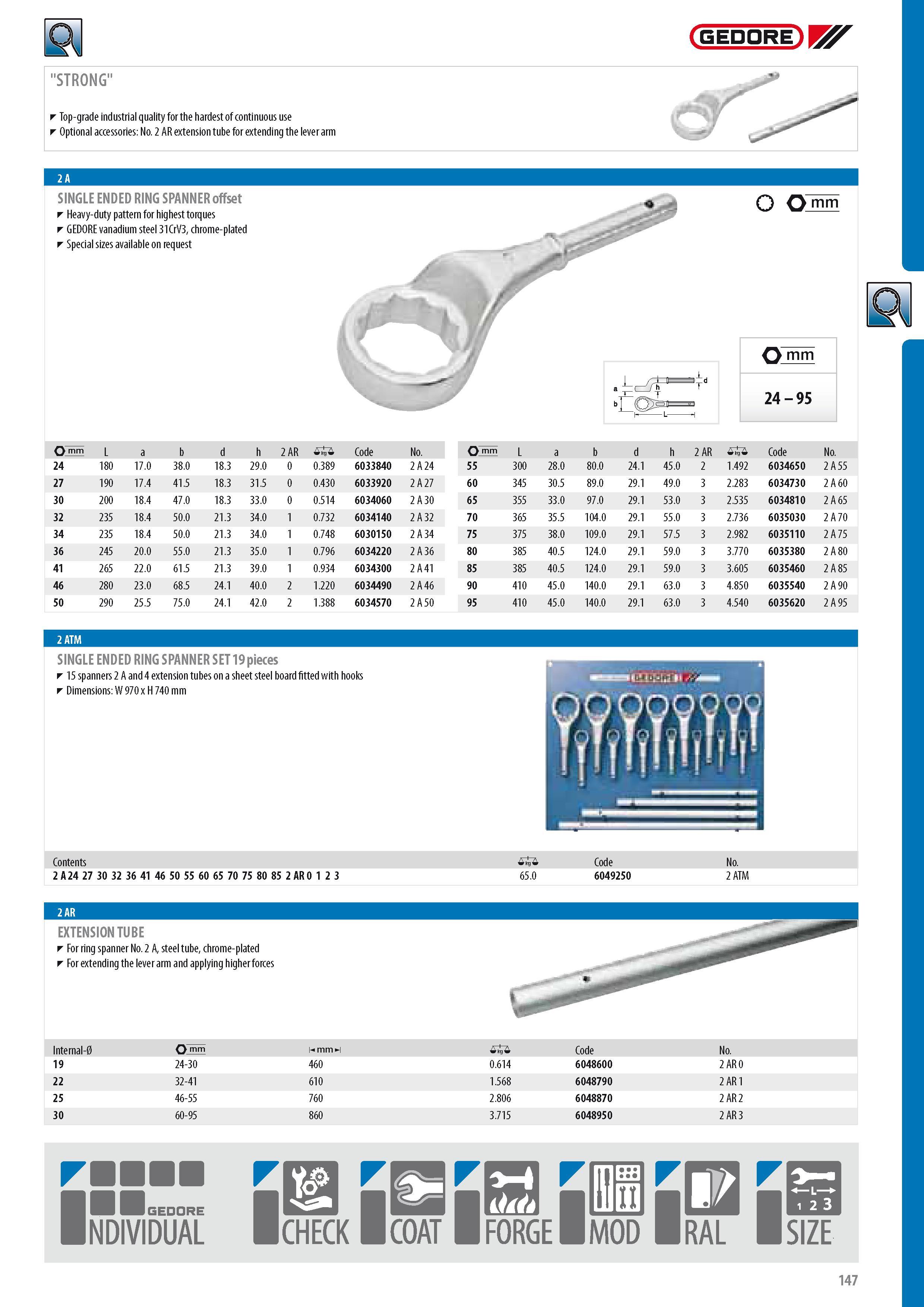

GEDORE "STRONG" Top-grade industrial quality for the hardest of continuous use Optional accessories No. 2 AR extension tube for extending the lever arm 2 A SINGLE ENDED RING SPANNER offset Heavy-duty pattern for highest torques GEDORE vanadium steel 31CrV3 chrome-plated Special sizes available on request mL 24 27 30 32 34 36 41 46 50 180 190 200 235 235 245 265 280 290 17.0 17.4 18.4 18.4 18.4 20.0 22.0 23.0 25.5 b 38.0 41.5 47.0 50.0 50.0 55.0 61.5 68.5 75.0 d 18.3 18.3 18.3 21.3 21.3 21.3 21.3 24.1 24.1 h 29.0 31.5 33.0 34.0 34.0 35.0 39.0 40.0 42.0 2 AR 0 Code 0.389 0.430 0.514 0.732 0.748 0.796 0.934 1.220 1.388 6033840 6033920 6034060 6034140 6030150 6034220 6034300 6034490 6034570 No. 2 A 24 2 A 27 2 A 30 2 A 32 2 A 34 2 A 36 2 A 41 2 A 46 2 A 50 mL 55 60 65 70 75 80 85 90 95 300 345 355 365 375 385 385 410 410 28.0 30.5 33.0 35.5 38.0 40.5 40.5 45.0 45.0 b 80.0 89.0 97.0 104.0 109.0 124.0 124.0 140.0 140.0 d 24.1 29.1 29.1 29.1 29.1 29.1 29.1 29.1 29.1 o Q mm h 45.0 49.0 53.0 55.0 57.5 59.0 59.0 63.0 63.0 m 24 - 95 1.492 2.283 2.535 2.736 2.982 3.770 3.605 4.850 4.540 2 AR 0 Code 6034650 6034730 6034810 6035030 6035110 6035380 6035460 6035540 6035620 No. 2 A 55 2 A 60 2 A 65 2 A 70 2 A 75 2 A 80 2 A 85 2 A 90 2 A 95 SINGLE ENDED RING SPANNER SET 19 pieces 15 spanners 2 A and 4 extension tubes on a sheet steel board fitted with hooks Dimensions W 970 x H 740 mm Contents 2 A 24 27 30 32 36 41 46 50 55 60 65 70 75 80 85 2 AR 0 1 2 3 -i0 65.0 Code 6049250 No. 2 ATM 2 AR EXTENSION TUBE For ring spanner No. 2 A steel tube chrome-plated For extending the lever arm and applying higher forces Internal-0 m m mm ml -i0 Code No. 19 24-30 460 0.614 6048600 2 AR 0 22 32-41 610 1.568 6048790 2 AR 1 25 46-55 760 2.806 6048870 2 AR 2 30 60-95 860 3.715 6048950 2 AR 3 rmmwm I IGEDORE NDIVIDUAL ICHECK IcOAT I FORGE I 2 ATM 147
