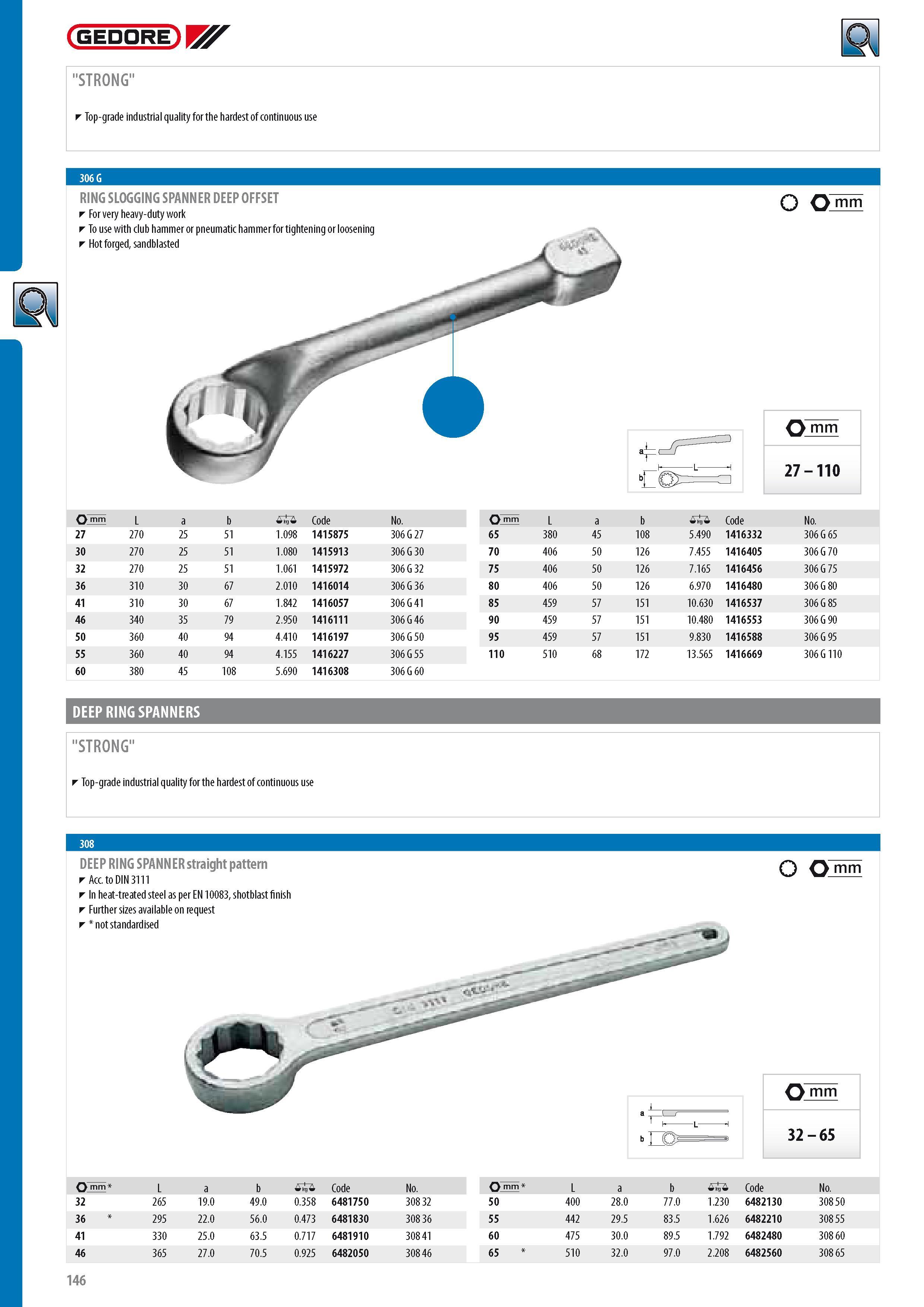

GEDORE "STRONG" Top-grade industrial quality for the hardest of continuous use RING SLOGGING SPANNER DEEP OFFSET For very heavy-duty work To use with club hammer or pneumatic hammer for tightening or loosening Hot forged sandblasted o Q mm Q mm 27 - 110 mm L a b 0 Code No. m L a b 0 Code No. 27 270 25 51 1.098 1415875 306 G 27 65 380 45 108 5.490 1416332 306 G 65 30 270 25 51 1.080 1415913 306 G 30 70 406 50 126 7.455 1416405 306 G 70 32 270 25 51 1.061 1415972 306 G 32 75 406 50 126 7.165 1416456 306 G 75 36 310 30 67 2.010 1416014 306 G 36 80 406 50 126 6.970 1416480 306 G 80 41 310 30 67 1.842 1416057 306 G 41 85 459 57 151 10.630 1416537 306 G 85 46 340 35 79 2.950 1416111 306 G 46 90 459 57 151 10.480 1416553 306 G 90 50 360 40 94 4.410 1416197 306 G 50 95 459 57 151 9.830 1416588 306 G 95 55 360 40 94 4.155 1416227 306 G 55 110 510 68 172 13.565 1416669 306 G 110 60 380 45 108 5.690 1416308 306 G 60 DEEP RING SPANNERS DEEP RING SPANNER straight pattern Acc. to DIN 3111 In heat-treated steel as per EN 10083 shotblast finish Further sizes available on request not standardised o m m 32 - 65 m L a b 0 Code No. m L a b 0 Code No. 32 265 19.0 49.0 0.358 6481750 308 32 50 400 28.0 77.0 1.230 6482130 308 50 36 295 22.0 56.0 0.473 6481830 308 36 55 442 29.5 83.5 1.626 6482210 308 55 41 330 25.0 63.5 0.717 6481910 308 41 60 475 30.0 89.5 1.792 6482480 308 60 46 365 27.0 70.5 0.925 6482050 308 46 65 510 32.0 97.0 2.208 6482560 308 65 146
