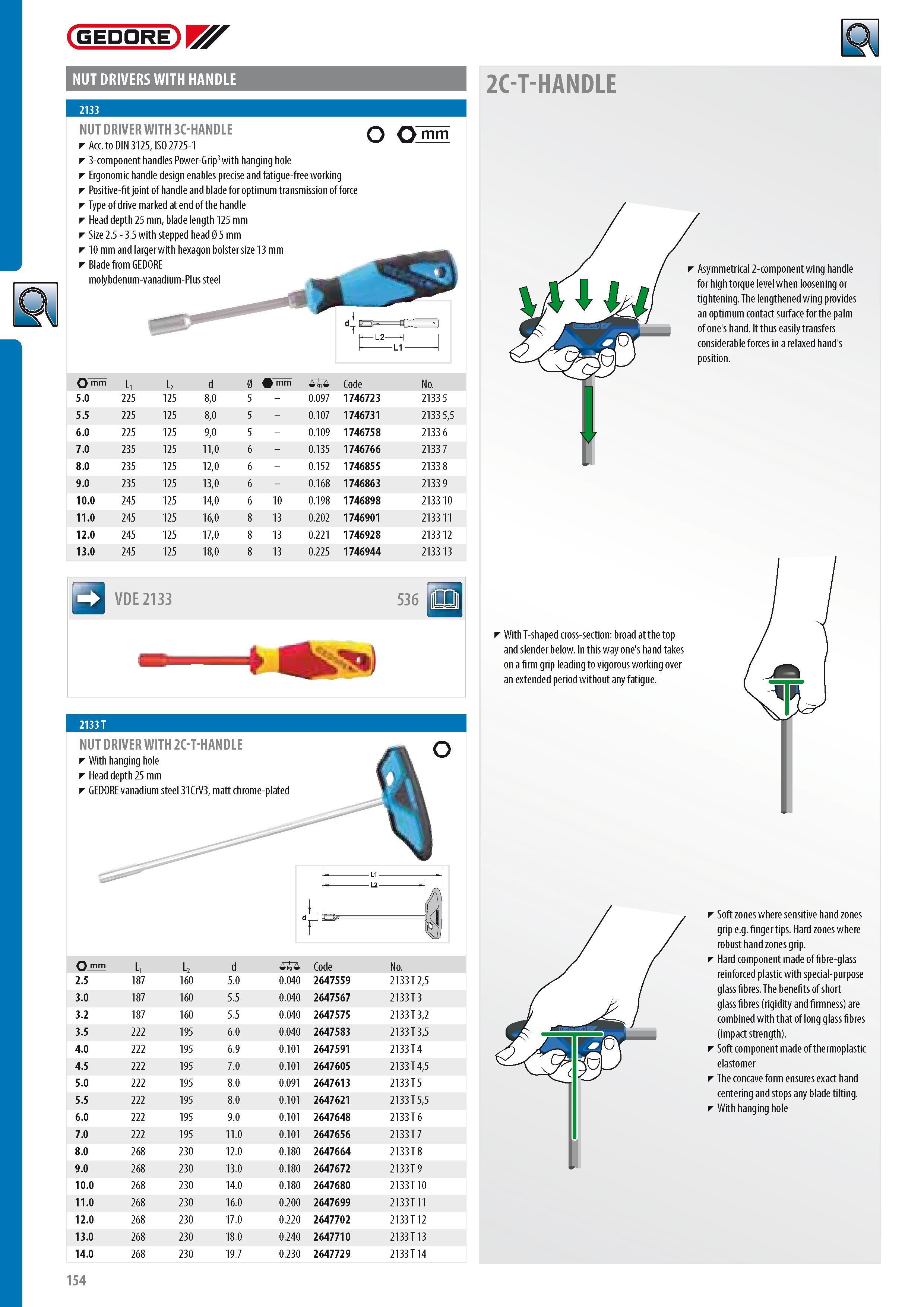

GEDORE NUT DRIVERS WITH HANDLE 2C-T-HANDLE NUT DRIVER WITH 3C-HANDLE Acc. to DIN 3125 ISO 2725-1 3-component handles Power-Grip3 with hanging hole Ergonomic handle design enables precise and fatigue-free working Positive-fit joint of handle and blade for optimum transmission of force Type of drive marked at end of the handle Head depth 25 mm blade length 125 mm Size 2.5 - 3.5 with stepped head 0 5 mm 10 mm and larger with hexagon bolster size 13 mm Blade from GEDORE molybdenum-vanadium-Plus steel 0 mm L1 L2 d 0 mm -0 Code No. 5.0 225 125 80 5 - 0.097 1746723 2133 5 5.5 225 125 80 5 - 0.107 1746731 2133 55 6.0 225 125 90 5 - 0.109 1746758 2133 6 7.0 235 125 110 6 - 0.135 1746766 2133 7 8.0 235 125 120 6 - 0.152 1746855 2133 8 9.0 235 125 130 6 - 0.168 1746863 2133 9 10.0 245 125 140 6 10 0.198 1746898 2133 10 11.0 245 125 160 8 13 0.202 1746901 2133 11 12.0 245 125 170 8 13 0.221 1746928 2133 12 13.0 245 125 180 8 13 0.225 1746944 2133 13 NUT DRIVER WITH 2C-T-HANDLE With hanging hole Head depth 25 mm GEDORE vanadium steel 31CrV3 matt chrome-plated o m L1 L2 d -0 Code No. 2.5 187 160 5.0 0.040 2647559 2133 T 25 3.0 187 160 5.5 0.040 2647567 2133 T 3 3.2 187 160 5.5 0.040 2647575 2133 T 32 3.5 222 195 6.0 0.040 2647583 2133 T 35 4.0 222 195 6.9 0.101 2647591 2133 T 4 4.5 222 195 7.0 0.101 2647605 2133 T 45 5.0 222 195 8.0 0.091 2647613 2133 T 5 5.5 222 195 8.0 0.101 2647621 2133 T 55 6.0 222 195 9.0 0.101 2647648 2133 T 6 7.0 222 195 11.0 0.101 2647656 2133 T 7 8.0 268 230 12.0 0.180 2647664 2133 T 8 9.0 268 230 13.0 0.180 2647672 2133 T 9 10.0 268 230 14.0 0.180 2647680 2133 T 10 11.0 268 230 16.0 0.200 2647699 2133 T 11 12.0 268 230 17.0 0.220 2647702 2133 T 12 13.0 268 230 18.0 0.240 2647710 2133 T 13 14.0 268 230 19.7 0.230 2647729 2133 T 14 Asymmetrical 2-component wing handle for high torque level when loosening or tightening. The lengthened wing provides an optimum contact surface for the palm of one's hand. It thus easily transfers considerable forces in a relaxed hand's position. With T-shaped cross-section broad at the top and slender below. In this way one's hand takes on a firm grip leading to vigorous working over an extended period without any fatigue. Soft zones where sensitive hand zones grip e.g. finger tips. Hard zones where robust hand zones grip. Hard component made of fibre-glass reinforced plastic with special-purpose glass fibres. The benefits of short glass fibres (rigidity and firmness) are combined with that of long glass fibres (impact strength). Soft component made of thermoplastic elastomer The concave form ensures exact hand centering and stops any blade tilting. With hanging hole 2133 154
