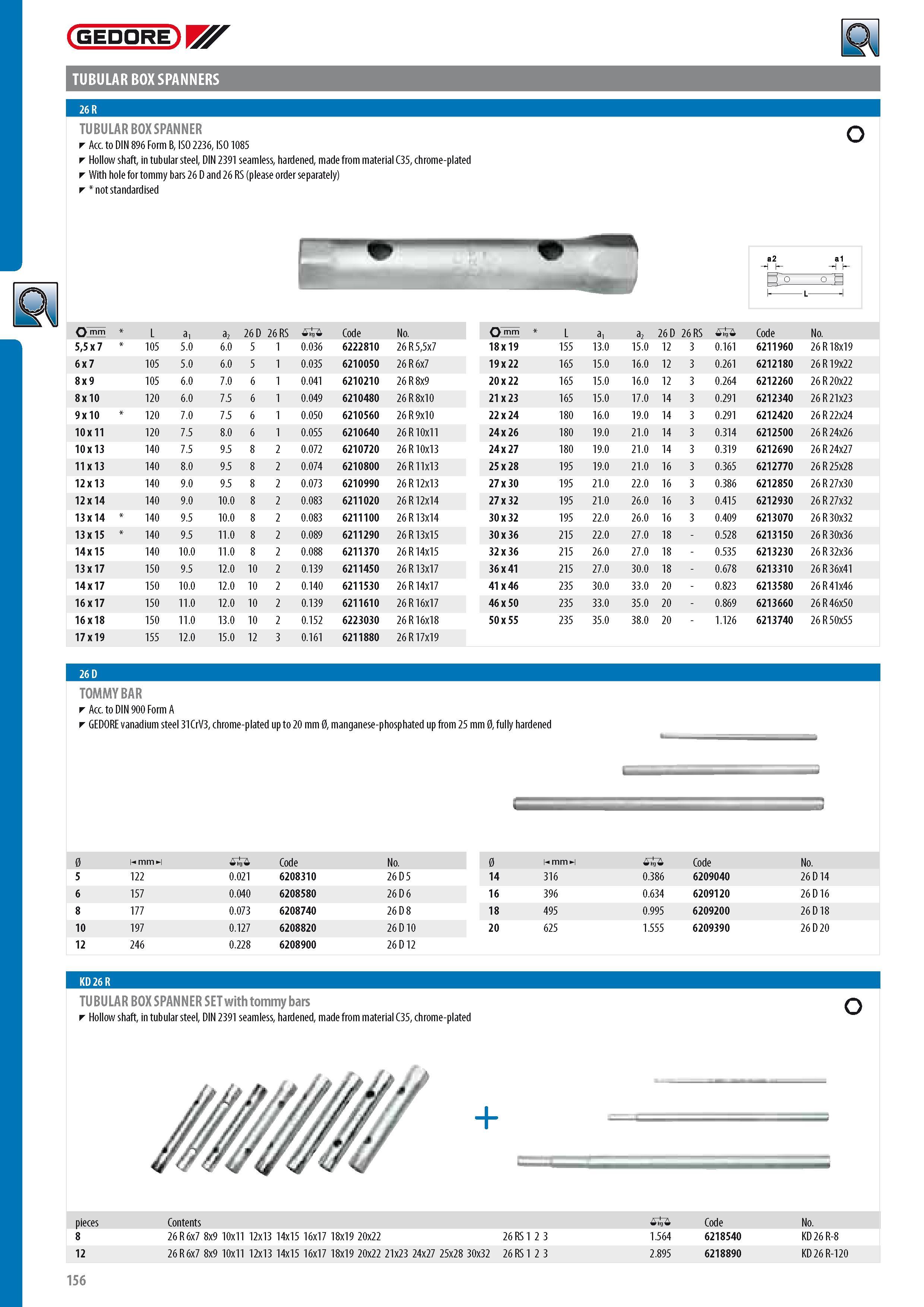

GEDORE TUBULAR BOX SPANNERS TUBULAR BOX SPANNER Acc. to DIN 896 Form B ISO 2236 ISO 1085 Hollow shaft in tubular steel DIN 2391 seamless hardened made from material C35 chrome-plated With hole for tommy bars 26 D and 26 RS (please order separately) not standardised o a2 H h- mm L a1 a2 26 D 26 RS -0 Code No. m L a1 a2 26 D 26 RS 0 Code No. 55 x 7 105 5.0 6.0 5 1 0.036 6222810 26 R 55x7 18 x 19 155 13.0 15.0 12 3 0.161 6211960 26R18x19 6 x 7 105 5.0 6.0 5 1 0.035 6210050 26 R 6x7 19 x 22 165 15.0 16.0 12 3 0.261 6212180 26 R19x22 8 x 9 105 6.0 7.0 6 1 0.041 6210210 26 R 8x9 20 x 22 165 15.0 16.0 12 3 0.264 6212260 26 R20x22 8 x 10 120 6.0 7.5 6 1 0.049 6210480 26 R8x10 21 x 23 165 15.0 17.0 14 3 0.291 6212340 26R21x23 9 x 10 120 7.0 7.5 6 1 0.050 6210560 26 R9x10 22 x 24 180 16.0 19.0 14 3 0.291 6212420 26 R22x24 10 x 11 120 7.5 8.0 6 1 0.055 6210640 26 R10x11 24 x 26 180 19.0 21.0 14 3 0.314 6212500 26R24x26 10 x 13 140 7.5 9.5 8 2 0.072 6210720 26 R10x13 24 x 27 180 19.0 21.0 14 3 0.319 6212690 26R24x27 11 x 13 140 8.0 9.5 8 2 0.074 6210800 26 R11x13 25 x 28 195 19.0 21.0 16 3 0.365 6212770 26 R25x28 12 x 13 140 9.0 9.5 8 2 0.073 6210990 26 R12x13 27 x 30 195 21.0 22.0 16 3 0.386 6212850 26 R27x30 12 x 14 140 9.0 10.0 8 2 0.083 6211020 26 R12x14 27 x 32 195 21.0 26.0 16 3 0.415 6212930 26 R27x32 13 x 14 140 9.5 10.0 8 2 0.083 6211100 26 R13x14 30 x 32 195 22.0 26.0 16 3 0.409 6213070 26R30x32 13 x 15 140 9.5 11.0 8 2 0.089 6211290 26 R13x15 30 x 36 215 22.0 27.0 18 - 0.528 6213150 26R30x36 14 x 15 140 10.0 11.0 8 2 0.088 6211370 26 R14x15 32 x 36 215 26.0 27.0 18 - 0.535 6213230 26 R32x36 13 x 17 150 9.5 12.0 10 2 0.139 6211450 26 R13x17 36 x 41 215 27.0 30.0 18 - 0.678 6213310 26 R36x41 14 x 17 150 10.0 12.0 10 2 0.140 6211530 26 R14x17 41 x 46 235 30.0 33.0 20 - 0.823 6213580 26R41x46 16 x 17 150 11.0 12.0 10 2 0.139 6211610 26 R16x17 46 x 50 235 33.0 35.0 20 - 0.869 6213660 26R46x50 16 x 18 150 11.0 13.0 10 2 0.152 6223030 26 R16x18 50 x 55 235 35.0 38.0 20 - 1.126 6213740 26 R50x55 17 x 19 155 12.0 15.0 12 3 0.161 6211880 26 R17x19 26 D TOMMY BAR Acc. to DIN 900 Form A GEDORE vanadium steel 31CrV3 chrome-plated up to 20 mm 0 manganese-phosphated up from 25 mm 0 fully hardened 0 m mm mi 0 Code No. 0 m 0 Code No. 5 2 2 0.021 6208310 26 D 5 14 316 0.386 6209040 26 D 14 6 157 0.040 6208580 26 D 6 16 396 0.634 6209120 26 D 16 8 177 0.073 6208740 26 D 8 18 495 0.995 6209200 26 D 18 10 197 0.127 6208820 26 D 10 20 625 1.555 6209390 26 D 20 12 246 0.228 6208900 26 D 12 TUBULAR BOX SPANNER SET with tommy bars Hollow shaft in tubular steel DIN 2391 seamless hardened made from material C35 chrome-plated o pieces 8 12 Contents 26 R6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 26 RS 1 2 3 26 R6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27 25x28 30x32 26 RS1 2 3 0 Code 1.564 6218540 2.895 6218890 No. KD 26 R-8 KD 26 R-120 26 R KD 26 R 156
