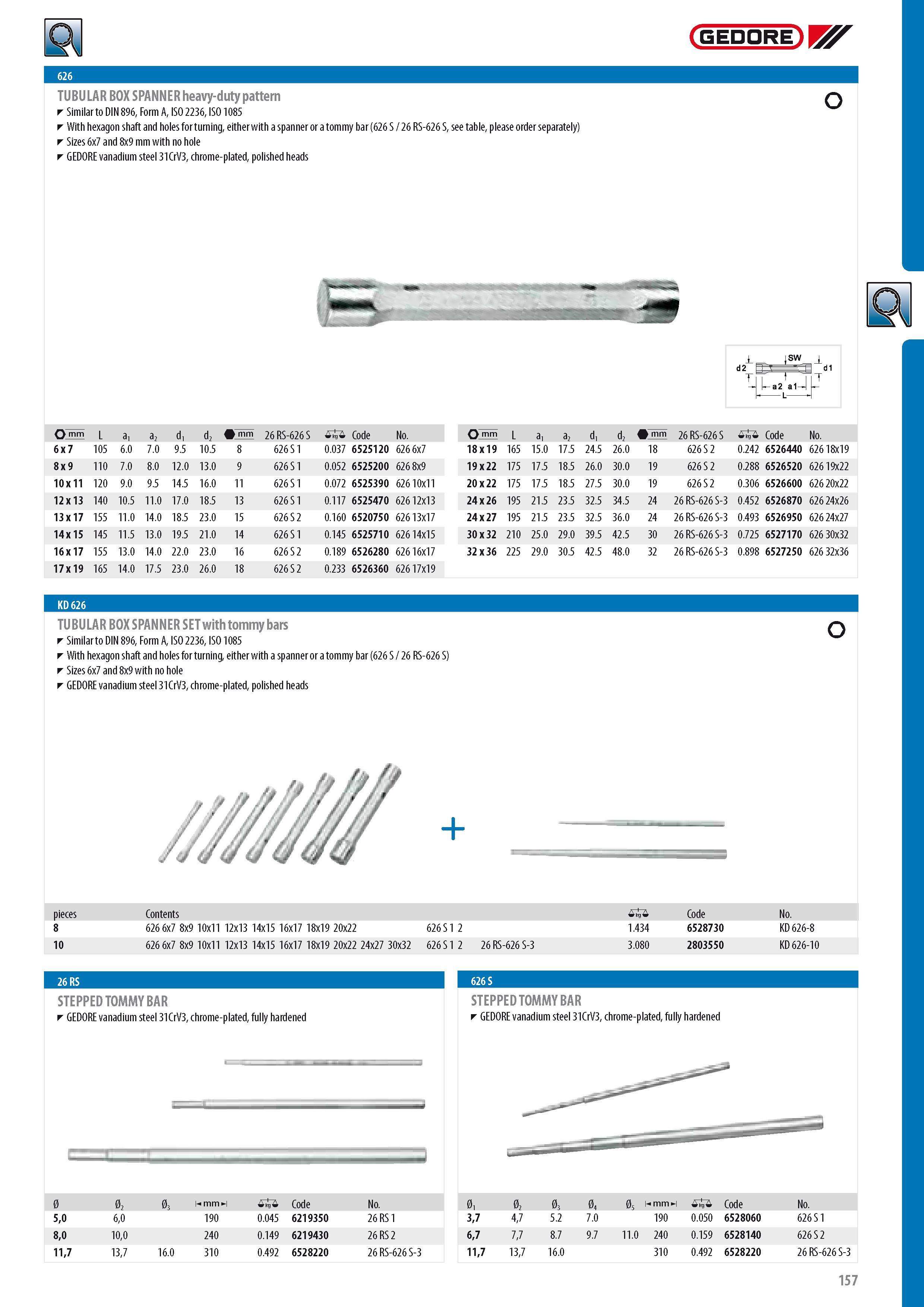

TUBULAR BOX SPANNER heavy-duty pattern Similar to DIN 896 Form A ISO 2236 ISO 1085 With hexagon shaft and holes for turning either with a spanner or a tommy bar (626 S 26 RS-626 S see table please order separately) Sizes 6x7 and 8x9 mm with no hole GEDORE vanadium steel 31CrV3 chrome-plated polished heads GEDORE o 626 C55& mm L a1 a2 d1 d2 mm 26 RS-626S 0 Code No. mm L a1 a2 d1 d2 mm 26 RS-626S 0 Code No. 6 x 7 105 6.0 7.0 9.5 10.5 8 626 S 1 0.037 6525120 626 6x7 18 x 19 165 15.0 17.5 24.5 26.0 18 626 S 2 0.242 6526440 62618x19 8 x 9 110 7.0 8.0 12.0 13.0 9 626 S 1 0.052 6525200 626 8x9 19 x 22 175 17.5 18.5 26.0 30.0 19 626 S 2 0.288 6526520 62619x22 10 x 11 120 9.0 9.5 14.5 16.0 11 626 S 1 0.072 6525390 62610x11 20 x 22 175 17.5 18.5 27.5 30.0 19 626 S 2 0.306 6526600 626 20x22 12 x 13 140 10.5 11.0 17.0 18.5 13 626 S 1 0.117 6525470 62612x13 24 x 26 195 21.5 23.5 32.5 34.5 24 26 RS-626 S-3 0.452 6526870 626 24x26 13 x 17 155 11.0 14.0 18.5 23.0 15 626 S 2 0.160 6520750 62613x17 24 x 27 195 21.5 23.5 32.5 36.0 24 26 RS-626 S-3 0.493 6526950 626 24x27 14 x 15 145 11.5 13.0 19.5 21.0 14 626 S 1 0.145 6525710 62614x15 30 x 32 210 25.0 29.0 39.5 42.5 30 26 RS-626 S-3 0.725 6527170 626 30x32 16 x 17 155 13.0 14.0 22.0 23.0 16 626 S 2 0.189 6526280 62616x17 32 x 36 225 29.0 30.5 42.5 48.0 32 26 RS-626 S-3 0.898 6527250 626 32x36 17 x 19 165 14.0 17.5 23.0 26.0 18 626 S 2 0.233 6526360 62617x19 TUBULAR BOX SPANNER SET with tommy bars Similar to DIN 896 Form A ISO 2236 ISO 1085 With hexagon shaft and holes for turning either with a spanner or a tommy bar (626 S 26 RS-626 S) Sizes 6x7 and 8x9 with no hole GEDORE vanadium steel 31CrV3 chrome-plated polished heads o + pieces Contents 0 Code No. 8 626 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 626 S 1 2 1.434 6528730 KD 626-8 10 626 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 24x27 30x32 626 S 1 2 26 RS-626 S-3 3.080 2803550 KD 626-10 26 RS 626 S STEPPED TOMMY BAR GEDORE vanadium steel 31CrV3 chrome-plated fully hardened STEPPED TOMMY BAR GEDORE vanadium steel 31CrV3 chrome-plated fully hardened 0 02 03 m mm ml 0 Code No. 01 02 03 04 05 m mm ml 0 Code No. 50 60 190 0.045 6219350 26 RS 1 37 47 5.2 7.0 190 0.050 6528060 626 S 1 80 100 240 0.149 6219430 26 RS 2 67 77 8.7 9.7 11.0 240 0.159 6528140 626 S 2 117 137 16.0 310 0.492 6528220 26 RS-626 S-3 117 137 16.0 310 0.492 6528220 26 RS-626 S- 157
