142 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.140

Каталог GEDORE 2014 Слесарный инструмент Стр. 140 0142 ENG Lab2u

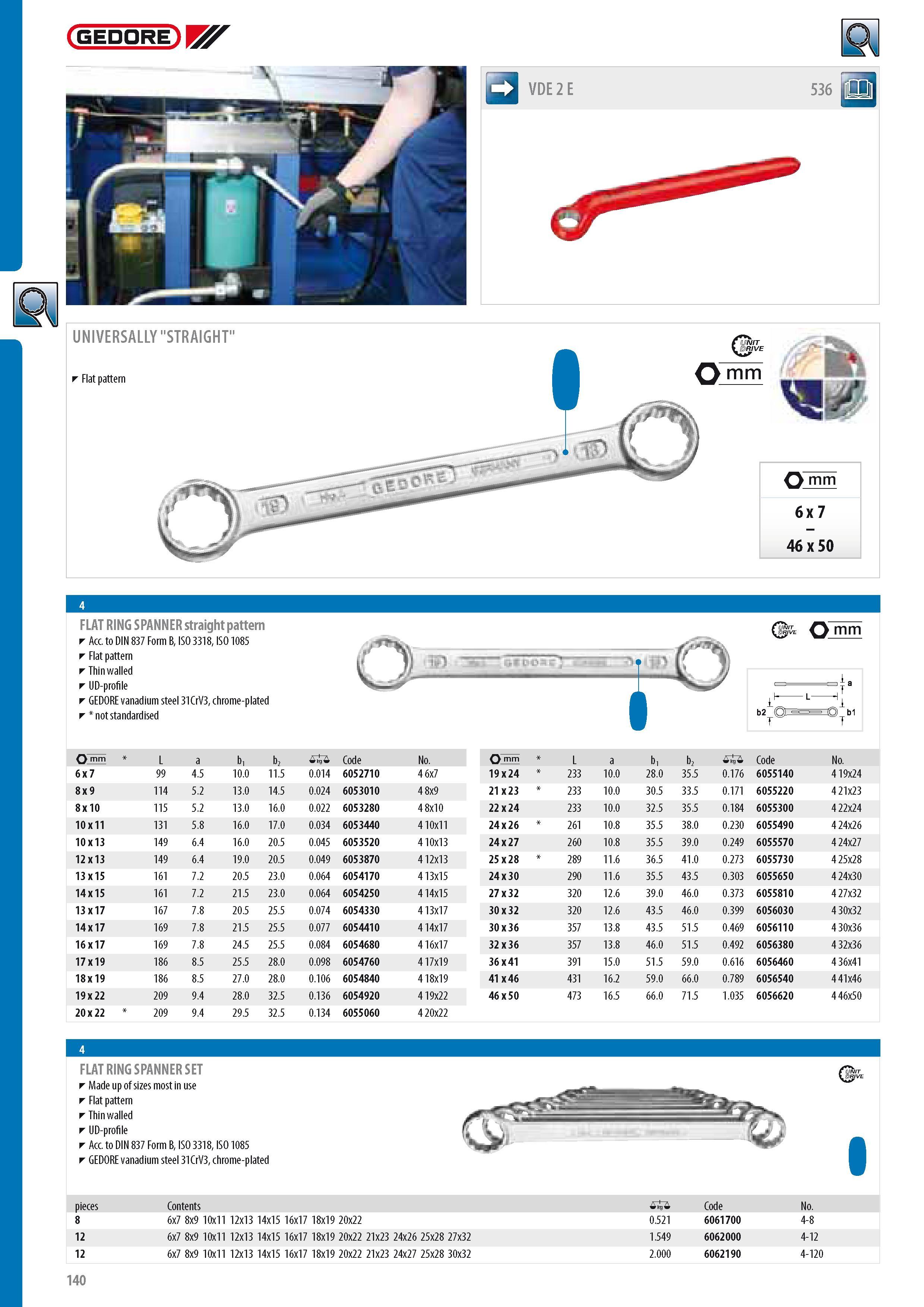

GEDORE FLAT RING SPANNER straight pattern Acc. to DIN 837 Form B ISO 3318 ISO 1085 Flat pattern Thin walled UD-profile GEDORE vanadium steel 31CrV3 chrome-plated not standardised Q mm m L a b1 b2 0 Code No. m L a b1 b2 0 Code No. 6 x 7 99 4.5 10.0 11.5 0.014 6052710 4 6x7 19 x 24 233 10.0 28.0 35.5 0.176 6055140 419x24 8 x 9 114 5.2 13.0 14.5 0.024 6053010 4 8x9 21 x 23 233 10.0 30.5 33.5 0.171 6055220 4 21x23 8 x 10 115 5.2 13.0 16.0 0.022 6053280 4 8x10 22 x 24 233 10.0 32.5 35.5 0.184 6055300 4 22x24 10 x 11 131 5.8 16.0 17.0 0.034 6053440 410x11 24 x 26 261 10.8 35.5 38.0 0.230 6055490 4 24x26 10 x 13 149 6.4 16.0 20.5 0.045 6053520 410x13 24 x 27 260 10.8 35.5 39.0 0.249 6055570 4 24x27 12 x 13 149 6.4 19.0 20.5 0.049 6053870 412x13 25 x 28 289 11.6 36.5 41.0 0.273 6055730 4 25x28 13 x 15 161 7.2 20.5 23.0 0.064 6054170 413x15 24 x 30 290 11.6 35.5 43.5 0.303 6055650 4 24x30 14 x 15 161 7.2 21.5 23.0 0.064 6054250 414x15 27 x 32 320 12.6 39.0 46.0 0.373 6055810 4 27x32 13 x 17 167 7.8 20.5 25.5 0.074 6054330 413x17 30 x 32 320 12.6 43.5 46.0 0.399 6056030 4 30x32 14 x 17 169 7.8 21.5 25.5 0.077 6054410 414x17 30 x 36 357 13.8 43.5 51.5 0.469 6056110 4 30x36 16 x 17 169 7.8 24.5 25.5 0.084 6054680 416x17 32 x 36 357 13.8 46.0 51.5 0.492 6056380 4 32x36 17 x 19 186 8.5 25.5 28.0 0.098 6054760 417x19 36 x 41 391 15.0 51.5 59.0 0.616 6056460 436x41 18 x 19 186 8.5 27.0 28.0 0.106 6054840 418x19 41 x 46 431 16.2 59.0 66.0 0.789 6056540 4 41x46 19 x 22 209 9.4 28.0 32.5 0.136 6054920 4 19x22 46 x 50 473 16.5 66.0 71.5 1.035 6056620 4 46x50 20 x 22 209 9.4 29.5 32.5 0.134 6055060 4 20x22 FLAT RING SPANNER SET Made up of sizes most in use Flat pattern Thin walled UD-profile Acc. to DIN 837 Form B ISO 3318 ISO 1085 GEDORE vanadium steel 31CrV3 chrome-plated fmiiT 3 I pieces 8 12 12 Contents 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x26 25x28 27x32 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27 25x28 30x32 0 0.521 1.549 2.000 Code 6061700 6062000 6062190 No. 4-8 4-12 4-120 140
