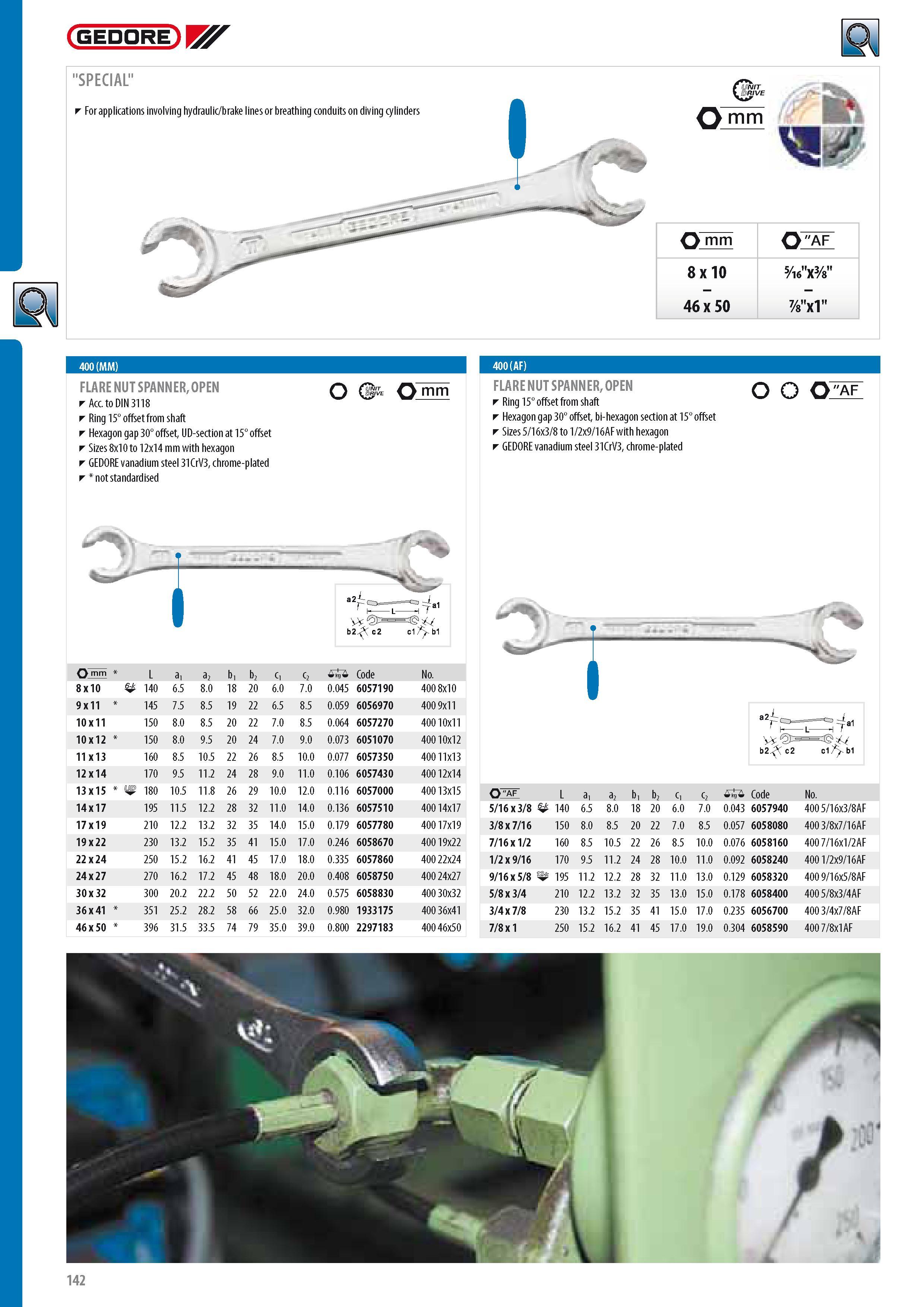

GEDORE "SPECIAL" For applications involving hydraulic brake lines or breathing conduits on diving cylinders fmaT ilpRIVE m Q mm 0"AF 8x10 5 l6"X%" 46x50 7 8"x1" FLARE NUT SPANNER OPEN Acc. to DIN 3118 Ring 15 offset from shaft Hexagon gap 30 offset UD-section at 15 offset Sizes 8x10 to 12x14 mm with hexagon GEDORE vanadium steel 31CrV3 chrome-plated not standardised mm FLARE NUT SPANNER OPEN Ring 15 offset from shaft Hexagon gap 30 offset bi-hexagon section at 15 offset Sizes 5 16x3 8 to 1 2x9 16AF with hexagon GEDORE vanadium steel 31CrV3 chrome-plated O O Q"AF b2 ; c2 m L a1 a2 b1 b2 c1 c2 0 Code No. 8 X 10 y 140 6.5 8.0 18 20 6.0 7.0 0.045 6057190 4008x10 9 X 11 145 7.5 8.5 19 22 6.5 8.5 0.059 6056970 400 9x11 a2r 10 X 11 150 8.0 8.5 20 22 7.0 8.5 0.064 6057270 40010x11 10 X 12 150 8.0 9.5 20 24 7.0 9.0 0.073 6051070 40010x12 vvaia b2c2 11 X 13 160 8.5 10.5 22 26 8.5 10.0 0.077 6057350 40011x13 12 X 14 170 9.5 11.2 24 28 9.0 11.0 0.106 6057430 40012x14 13 X 15 n 180 10.5 11.8 26 29 10.0 12.0 0.116 6057000 40013x15 Q"af L a1 a2 b1 b2 c1 c2 0 Code No. 14 X 17 195 11.5 12.2 28 32 11.0 14.0 0.136 6057510 40014x17 5 16X3 8 y 140 6.5 8.0 18 20 6.0 7.0 0.043 6057940 400 5 16x3 8AF 17 X 19 210 12.2 13.2 32 35 14.0 15.0 0.179 6057780 40017x19 3 8 X 7 16 150 8.0 8.5 20 22 7.0 8.5 0.057 6058080 400 3 8x7 16AF 19 X 22 230 13.2 15.2 35 41 15.0 17.0 0.246 6058670 40019x22 7 16 X 1 2 160 8.5 10.5 22 26 8.5 10.0 0.076 6058160 400 7 16x1 2AF 22 X 24 250 15.2 16.2 41 45 17.0 18.0 0.335 6057860 40022x24 1 2 X 9 16 170 9.5 11.2 24 28 10.0 11.0 0.092 6058240 4001 2x9 16AF 24 X 27 270 16.2 17.2 45 48 18.0 20.0 0.408 6058750 40024x27 9 16 X 5 8 o 195 11.2 12.2 28 32 11.0 13.0 0.129 6058320 400 9 16x5 8AF 30 X 32 300 20.2 22.2 50 52 22.0 24.0 0.575 6058830 40030x32 5 8X3 4 210 12.2 13.2 32 35 13.0 15.0 0.178 6058400 400 5 8x3 4AF 36 X 41 351 25.2 28.2 58 66 25.0 32.0 0.980 1933175 40036x41 3 4X 7 8 230 13.2 15.2 35 41 15.0 17.0 0.235 6056700 4003 4x7 8AF 46 X 50 396 31.5 33.5 74 79 35.0 39.0 0.800 2297183 40046x50 7 8 X 1 250 15.2 16.2 41 45 17.0 19.0 0.304 6058590 4007 8x1AF 142
