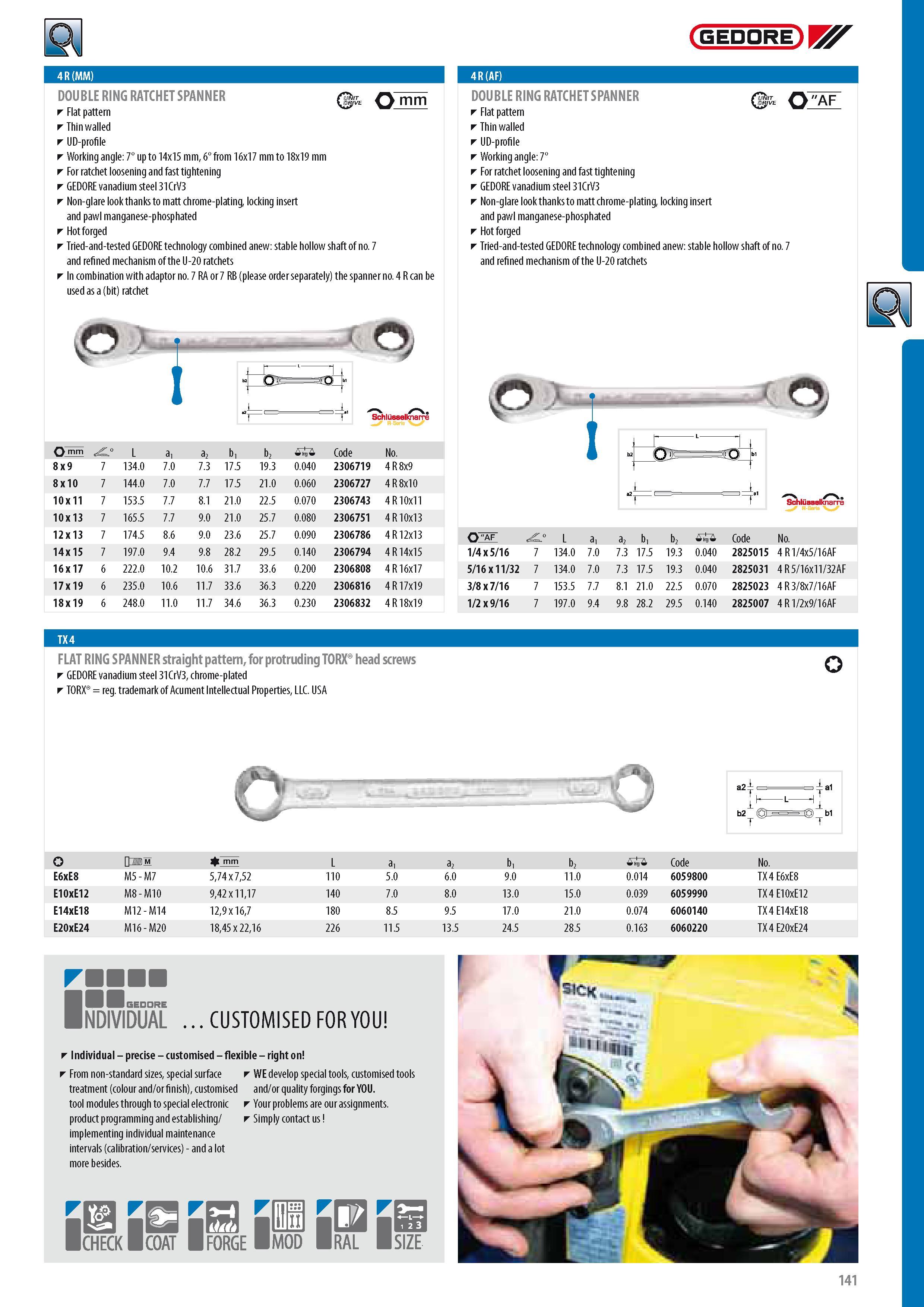

GEDORE DOUBLE RING RATCHET SPANNER Flat pattern Thin walled UD-profile Working angle 7 up to 14x15 mm 6 from 16x17 mm to 18x19 mm For ratchet loosening and fast tightening GEDORE vanadium steel 31CrV3 Non-glare look thanks to matt chrome-plating locking insert and pawl manganese-phosphated Hot forged Tried-and-tested GEDORE technology combined anew stable hollow shaft of no. 7 and refined mechanism of the U-20 ratchets In combination with adaptor no. 7 RA or 7 RB (please order separately) the spanner no. 4 R can be used as a (bit) ratchet DOUBLE RING RATCHET SPANNER Flat pattern Thin walled UD-profile Working angle 7 For ratchet loosening and fast tightening GEDORE vanadium steel 31CrV3 Non-glare look thanks to matt chrome-plating locking insert and pawl manganese-phosphated Hot forged Tried-and-tested GEDORE technology combined anew stable hollow shaft of no. 7 and refined mechanism of the U-20 ratchets 3 Q"af mm A L a1 a2 b1 b2 0 Code No. 8 x 9 7 134.0 7.0 7.3 17.5 19.3 0.040 2306719 4 R 8x9 8 x 10 7 144.0 7.0 7.7 17.5 21.0 0.060 2306727 4R8x10 10 x 11 7 153.5 7.7 8.1 21.0 22.5 0.070 2306743 4R10x11 10 x 13 7 165.5 7.7 9.0 21.0 25.7 0.080 2306751 4R10x13 12 x 13 7 174.5 8.6 9.0 23.6 25.7 0.090 2306786 4R12x13 Q"af 14 x 15 7 197.0 9.4 9.8 28.2 29.5 0.140 2306794 4R14x15 1 4x5 16 16 x 17 6 222.0 10.2 10.6 31.7 33.6 0.200 2306808 4R16x17 5 16 x 11 32 17 x 19 6 235.0 10.6 11.7 33.6 36.3 0.220 2306816 4R17x19 3 8 x 7 16 18 x 19 6 248.0 11.0 11.7 34.6 36.3 0.230 2306832 4R18x19 1 2 x 9 16 A 7 7 7 7 L 134.0 134.0 153.5 197.0 7.0 7.0 7.7 9.4 a2 b 7.3 17.5 7.3 17.5 8.1 21.0 9.8 28.2 b2 19.3 19.3 22.5 29.5 Schliissalknarre -0 0.040 0.040 0.070 0.140 Code No. 2825015 4 R 1 4x5 16AF 2825031 4 R 5 16x11 32AF 2825023 4 R 3 8x7 16AF 2825007 4 R 1 2x9 16AF FLAT RING SPANNER straight pattern for protruding TORX head screws GEDORE vanadium steel 31CrV3 chrome-plated TORX reg. trademark of Acument Intellectual Properties LLC. USA o rmmmm I o M m mm L a1 a2 b1 b2 0 Code No. E6xE8 M5 - M7 574 x 752 110 5.0 6.0 9.0 11.0 0.014 6059800 TX4E6xE8 E10xE12 M8 - M10 942 x 1117 140 7.0 8.0 13.0 15.0 0.039 6059990 TX 4 E10xE12 E14xE18 M12 - M14 129 x 167 180 8.5 9.5 17.0 21.0 0.074 6060140 TX 4 E14xE18 E20xE24 M16 - M20 1845 x 2216 226 11.5 13.5 24.5 28.5 0.163 6060220 TX4E20xE24 NDIVIDUAL CUSTOMISED FOR YOU Individual - precise - customised - flexible - right on 11 From non-standard sizes special surface treatment (colour and or finish) customised tool modules through to special electronic product programming and establishing implementing individual maintenance intervals (calibration services) - and a lot more besides. WE develop special tools customised tools and or quality forgings for YOU. Your problems are our assignments. Simply contact us r i CHECK BC0AT PH FORGE r MOD r Iral L 141
