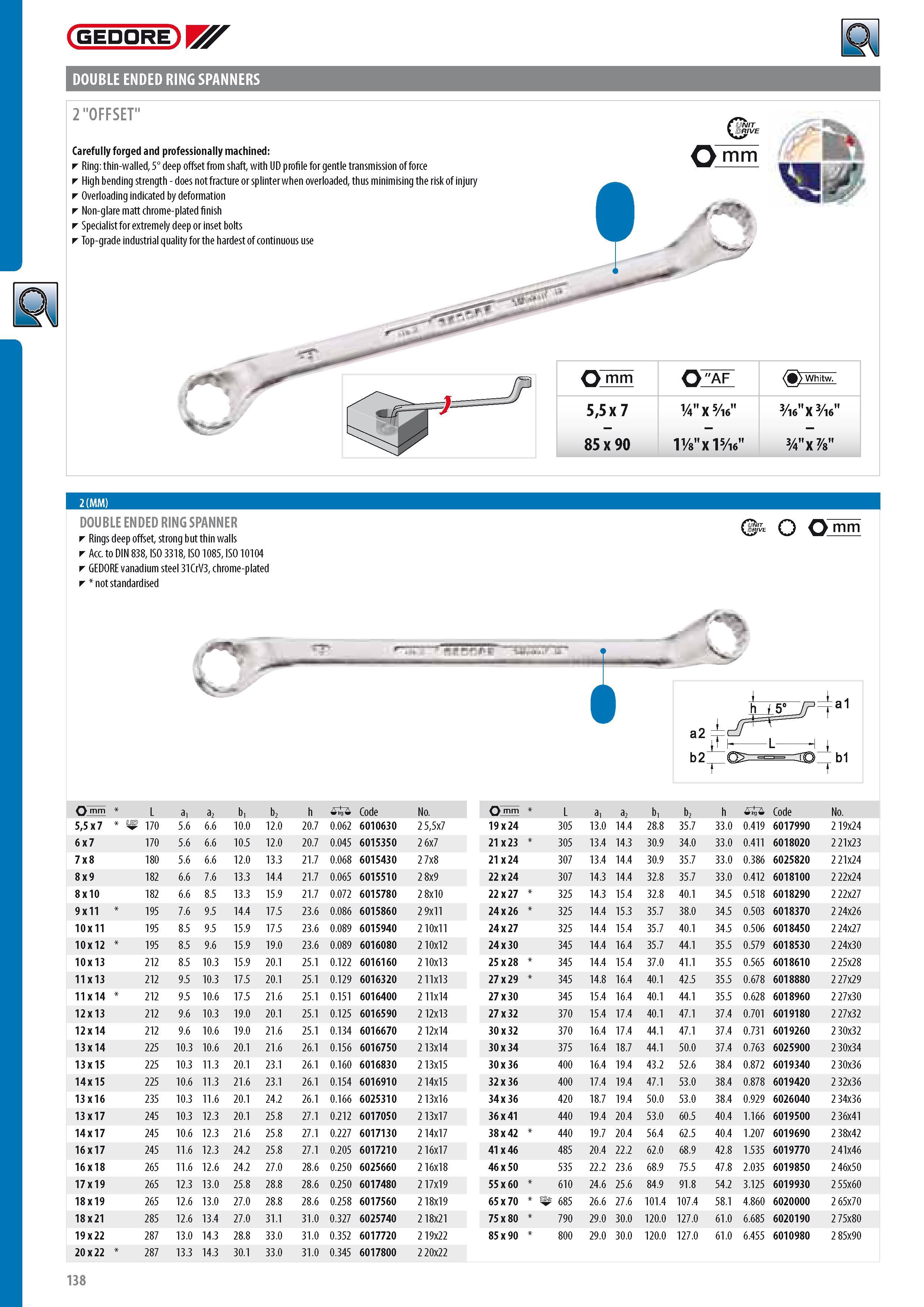

GEDORE DOUBLE ENDED RING SPANNERS 2"OFFSET" Carefully forged and professionally machined Ring thin-walled 5 deep offset from shaft with UD profile for gentle transmission of force High bending strength - does not fracture or splinter when overloaded thus minimising the risk of injury Overloading indicated by deformation Non-glare matt chrome-plated finish Specialist for extremely deep or inset bolts Top-grade industrial quality for the hardest of continuous use fmaT ilpRIVE Q mm 'N.W Q"af %"X5 16M 3 l6"X3 l6" 11 8MX15 16" W DOUBLE ENDED RING SPANNER Rings deep offset strong but thin walls Acc. to DIN 838 ISO 3318 ISO 1085 ISO 10104 GEDORE vanadium steel 31CrV3 chrome-plated not standardised O Q mm mm L a1 a2 b1 b2 h 0 Code No. m L a1 a2 b1 b2 h 0 Code No. 55 X 7 n 170 5.6 6.6 10.0 12.0 20.7 0.062 6010630 2 55x7 19 X 24 305 13.0 14.4 28.8 35.7 33.0 0.419 6017990 219x24 6 X 7 170 5.6 6.6 10.5 12.0 20.7 0.045 6015350 2 6x7 21 X 23 305 13.4 14.3 30.9 34.0 33.0 0.411 6018020 2 21x23 7 X 8 180 5.6 6.6 12.0 13.3 21.7 0.068 6015430 2 7x8 21 X 24 307 13.4 14.4 30.9 35.7 33.0 0.386 6025820 221x24 8 X 9 182 6.6 7.6 13.3 14.4 21.7 0.065 6015510 2 8x9 22 X 24 307 14.3 14.4 32.8 35.7 33.0 0.412 6018100 2 22x24 8 X 10 182 6.6 8.5 13.3 15.9 21.7 0.072 6015780 2 8x10 22 X 27 325 14.3 15.4 32.8 40.1 34.5 0.518 6018290 2 22x27 9 X 11 195 7.6 9.5 14.4 17.5 23.6 0.086 6015860 2 9x11 24 X 26 325 14.4 15.3 35.7 38.0 34.5 0.503 6018370 2 24x26 10 X 11 195 8.5 9.5 15.9 17.5 23.6 0.089 6015940 210x11 24 X 27 325 14.4 15.4 35.7 40.1 34.5 0.506 6018450 2 24x27 10 X 12 195 8.5 9.6 15.9 19.0 23.6 0.089 6016080 210x12 24 X 30 345 14.4 16.4 35.7 44.1 35.5 0.579 6018530 2 24x30 10 X 13 212 8.5 10.3 15.9 20.1 25.1 0.122 6016160 210x13 25 X 28 345 14.4 15.4 37.0 41.1 35.5 0.565 6018610 2 25x28 11 X 13 212 9.5 10.3 17.5 20.1 25.1 0.129 6016320 2 11x13 27 X 29 345 14.8 16.4 40.1 42.5 35.5 0.678 6018880 2 27x29 11 X 14 212 9.5 10.6 17.5 21.6 25.1 0.151 6016400 2 11x14 27 X 30 345 15.4 16.4 40.1 44.1 35.5 0.628 6018960 2 27x30 12 X 13 212 9.6 10.3 19.0 20.1 25.1 0.125 6016590 2 12x13 27 X 32 370 15.4 17.4 40.1 47.1 37.4 0.701 6019180 2 27x32 12 X 14 212 9.6 10.6 19.0 21.6 25.1 0.134 6016670 2 12x14 30 X 32 370 16.4 17.4 44.1 47.1 37.4 0.731 6019260 2 30x32 13 X 14 225 10.3 10.6 20.1 21.6 26.1 0.156 6016750 213x14 30 X 34 375 16.4 18.7 44.1 50.0 37.4 0.763 6025900 2 30x34 13 X 15 225 10.3 11.3 20.1 23.1 26.1 0.160 6016830 213x15 30 X 36 400 16.4 19.4 43.2 52.6 38.4 0.872 6019340 2 30x36 14 X 15 225 10.6 11.3 21.6 23.1 26.1 0.154 6016910 214x15 32 X 36 400 17.4 19.4 47.1 53.0 38.4 0.878 6019420 2 32x36 13 X 16 235 10.3 11.6 20.1 24.2 26.1 0.166 6025310 213x16 34 X 36 420 18.7 19.4 50.0 53.0 38.4 0.929 6026040 2 34x36 13 X 17 245 10.3 12.3 20.1 25.8 27.1 0.212 6017050 213x17 36 X 41 440 19.4 20.4 53.0 60.5 40.4 1.166 6019500 2 36x41 14 X 17 245 10.6 12.3 21.6 25.8 27.1 0.227 6017130 214x17 38 X 42 440 19.7 20.4 56.4 62.5 40.4 1.207 6019690 2 38x42 16 X 17 245 11.6 12.3 24.2 25.8 27.1 0.205 6017210 216x17 41 X 46 485 20.4 22.2 62.0 68.9 42.8 1.535 6019770 241x46 16 X 18 265 11.6 12.6 24.2 27.0 28.6 0.250 6025660 216x18 46 X 50 535 22.2 23.6 68.9 75.5 47.8 2.035 6019850 2 46x50 17 X 19 265 12.3 13.0 25.8 28.8 28.6 0.250 6017480 217x19 55 X 60 610 24.6 25.6 84.9 91.8 54.2 3.125 6019930 2 55x60 18 X 19 265 12.6 13.0 27.0 28.8 28.6 0.258 6017560 218x19 65 X 70 O 685 26.6 27.6 101.4 107.4 58.1 4.860 6020000 2 65x70 18 X 21 285 12.6 13.4 27.0 31.1 31.0 0.327 6025740 218x21 75 X 80 790 29.0 30.0 120.0 127.0 61.0 6.685 6020190 2 75x80 19 X 22 287 13.0 14.3 28.8 33.0 31.0 0.352 6017720 2 19x22 85 X 90 800 29.0 30.0 120.0 127.0 61.0 6.455 6010980 2 85x90 20 X 22 287 13.3 14.3 30.1 33.0 31.0 0.345 6017800 2 20x22 138
