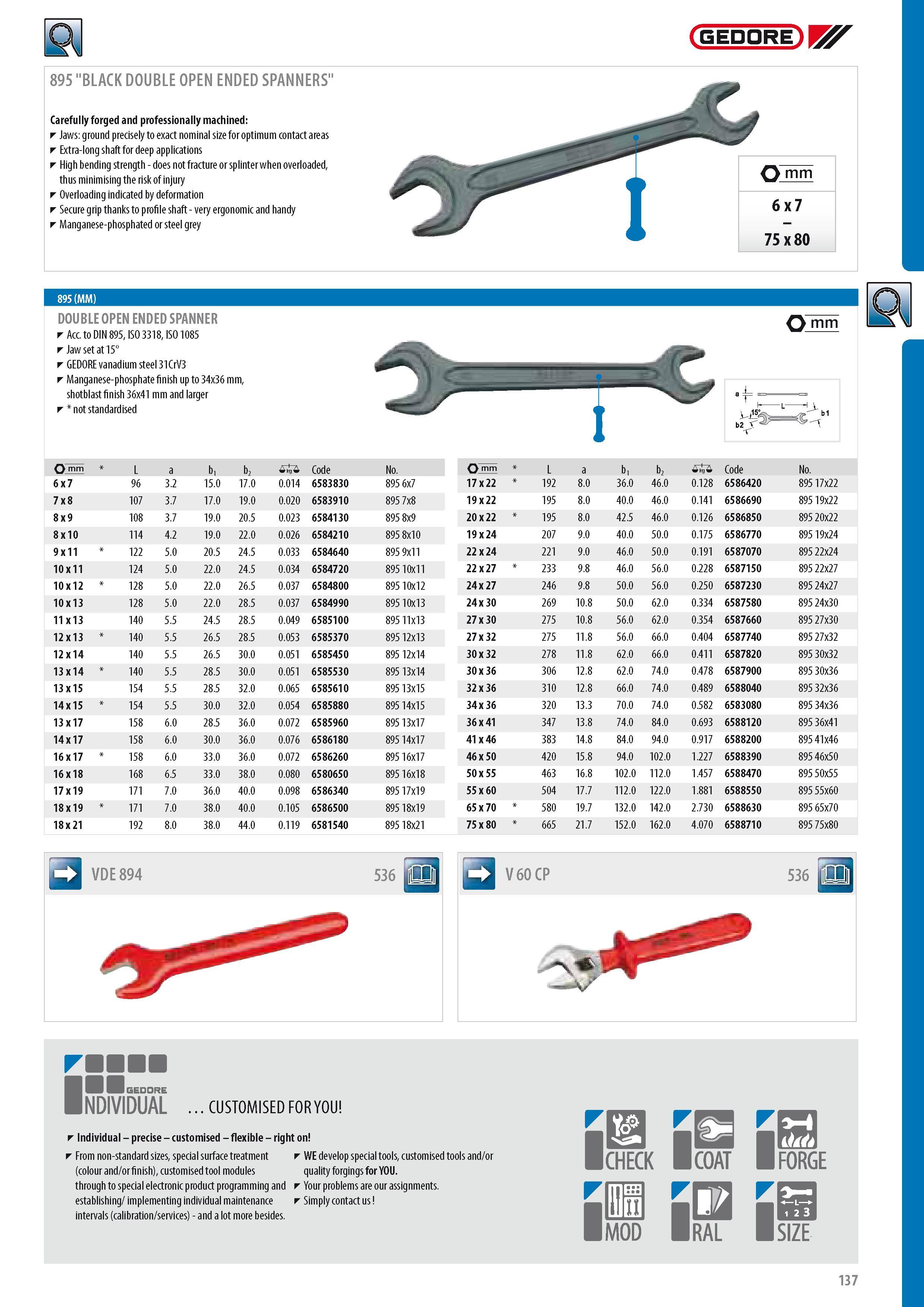

GEDORE 895 "BLACK DOUBLE OPEN ENDED SPANNERS" Carefully forged and professionally machined Jaws ground precisely to exact nominal size for optimum contact areas Extra-long shaft for deep applications High bending strength - does not fracture or splinter when overloaded thus minimising the risk of injury Overloading indicated by deformation Secure grip thanks to profile shaft - very ergonomic and handy Manganese-phosphated or steel grey DOUBLE OPEN ENDED SPANNER Acc. to DIN 895 ISO 3318 ISO 1085 Jaw set at 15 GEDORE vanadium steel 31CrV3 Manganese-phosphate finish up to 34x36 mm shotblast finish 36x41 mm and larger not standardised Q mm mm L a b1 b2 0 Code No. m L a b1 b2 0 Code No. 6 x 7 96 3.2 15.0 17.0 0.014 6583830 895 6x7 17 x 22 192 8.0 36.0 46.0 0.128 6586420 895 17x22 7 x 8 107 3.7 17.0 19.0 0.020 6583910 895 7x8 19 x 22 195 8.0 40.0 46.0 0.141 6586690 895 19x22 8 x 9 108 3.7 19.0 20.5 0.023 6584130 895 8x9 20 x 22 195 8.0 42.5 46.0 0.126 6586850 895 20x22 8 x 10 114 4.2 19.0 22.0 0.026 6584210 895 8x10 19 x 24 207 9.0 40.0 50.0 0.175 6586770 895 19x24 9 x 11 122 5.0 20.5 24.5 0.033 6584640 895 9x11 22 x 24 221 9.0 46.0 50.0 0.191 6587070 895 22x24 10 x 11 124 5.0 22.0 24.5 0.034 6584720 895 10x11 22 x 27 233 9.8 46.0 56.0 0.228 6587150 895 22x27 10 x 12 128 5.0 22.0 26.5 0.037 6584800 895 10x12 24 x 27 246 9.8 50.0 56.0 0.250 6587230 895 24x27 10 x 13 128 5.0 22.0 28.5 0.037 6584990 89510x13 24 x 30 269 10.8 50.0 62.0 0.334 6587580 895 24x30 11 x 13 140 5.5 24.5 28.5 0.049 6585100 895 11x13 27 x 30 275 10.8 56.0 62.0 0.354 6587660 895 27x30 12 x 13 140 5.5 26.5 28.5 0.053 6585370 895 12x13 27 x 32 275 11.8 56.0 66.0 0.404 6587740 895 27x32 12 x 14 140 5.5 26.5 30.0 0.051 6585450 895 12x14 30 x 32 278 11.8 62.0 66.0 0.411 6587820 895 30x32 13 x 14 140 5.5 28.5 30.0 0.051 6585530 895 13x14 30 x 36 306 12.8 62.0 74.0 0.478 6587900 895 30x36 13 x 15 154 5.5 28.5 32.0 0.065 6585610 895 13x15 32 x 36 310 12.8 66.0 74.0 0.489 6588040 895 32x36 14 x 15 154 5.5 30.0 32.0 0.054 6585880 895 14x15 34 x 36 320 13.3 70.0 74.0 0.582 6583080 895 34x36 13 x 17 158 6.0 28.5 36.0 0.072 6585960 895 13x17 36 x 41 347 13.8 74.0 84.0 0.693 6588120 895 36x41 14 x 17 158 6.0 30.0 36.0 0.076 6586180 895 14x17 41 x 46 383 14.8 84.0 94.0 0.917 6588200 895 41x46 16 x 17 158 6.0 33.0 36.0 0.072 6586260 89516x17 46 x 50 420 15.8 94.0 102.0 1.227 6588390 895 46x50 16 x 18 168 6.5 33.0 38.0 0.080 6580650 895 16x18 50 x 55 463 16.8 102.0 112.0 1.457 6588470 895 50x55 17 x 19 171 7.0 36.0 40.0 0.098 6586340 895 17x19 55 x 60 504 17.7 112.0 122.0 1.881 6588550 895 55x60 18 x 19 171 7.0 38.0 40.0 0.105 6586500 895 18x19 65 x 70 580 19.7 132.0 142.0 2.730 6588630 895 65x70 18 x 21 192 8.0 38.0 44.0 0.119 6581540 89518x21 75 x 80 665 21.7 152.0 162.0 4.070 6588710 895 75x80 VDE894 V 60 CP 895 (MM) rmmmm I NDIVIDUAL CUSTOMISED FOR YOU Individual - precise - customised - flexible - right on From non-standard sizes special surface treatment WE develop special tools customised tools and or (colour and or finish) customised tool modules quality forgings for YOU. through to special electronic product programming and Your problems are our assignments. establishing implementing individual maintenance Simply contact us intervals (calibration services) - and a lot more besides. r ICHECK r I ill MOD r I COAT rrm Ural ES forge rca I SIZE 137
