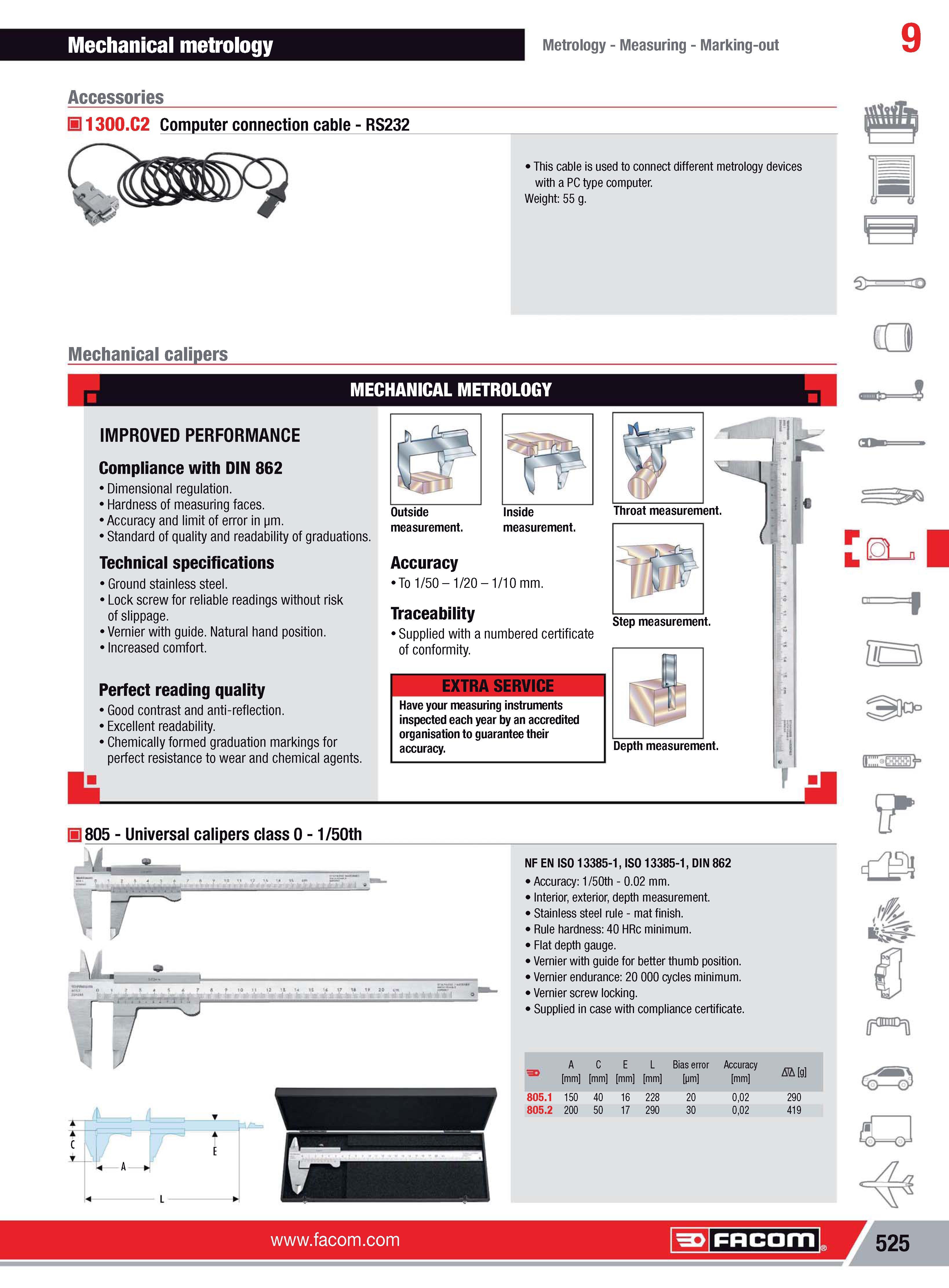

551 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.525

Каталог FACOM 2013 Инструмент Оборудование Стр. 525 0551 ENG Lab2u

Mechanical metrology Metrology Measuring Marking-out 9 Accessories cable RS232 This cable is used to connect different metrology devices with a PC type computer. Weight 55 g. ill U u CD Mechanical calipers a MECHANICAL METROLOGY IMPROVED PERFORMANCE Compliance with DIN 862 Dimensional regulation. Hardness of measuring faces. Accuracy and limit of error in pm. Standard of quality and readability of graduations. Technical specifications Ground stainless steel. Lock screw for reliable readings without risk of slippage. Vernier with guide. Natural hand position. Increased comfort. Perfect reading quality Good contrast and anti-reflection. Excellent readability. Chemically formed graduation markings for perfect resistance to wear and chemical agents. Outside measurement. Accuracy To 1 50 1 20 1/10 mm. Traceability Supplied with a numbered certificate of conformity. extra service Have your measuring instruments inspected each year by an accredited organisation to guarantee their accuracy. H 805 Universal calipers class 0 1 50th miiim NF EN ISO 13385-1 ISO 13385-1 DIN 862 Accuracy 1 50th 0.02 mm. Interior exterior depth measurement. Stainless steel rule mat finish. Rule hardness 40 HRc minimum. Flat depth gauge. Vernier with guide for better thumb position. Vernier endurance 20 000 cycles minimum. Vernier screw locking. Supplied in case with compliance certificate. ELo Facom A C E L Bias error mm mm mm mm pm 805.1 150 805.2 200 40 50 16 17 228 290 20 30 Accuracy mm 002 002 A' g 290 419 7 3 P HHHE3 525 H 1300.C2 Computer connection v VV
