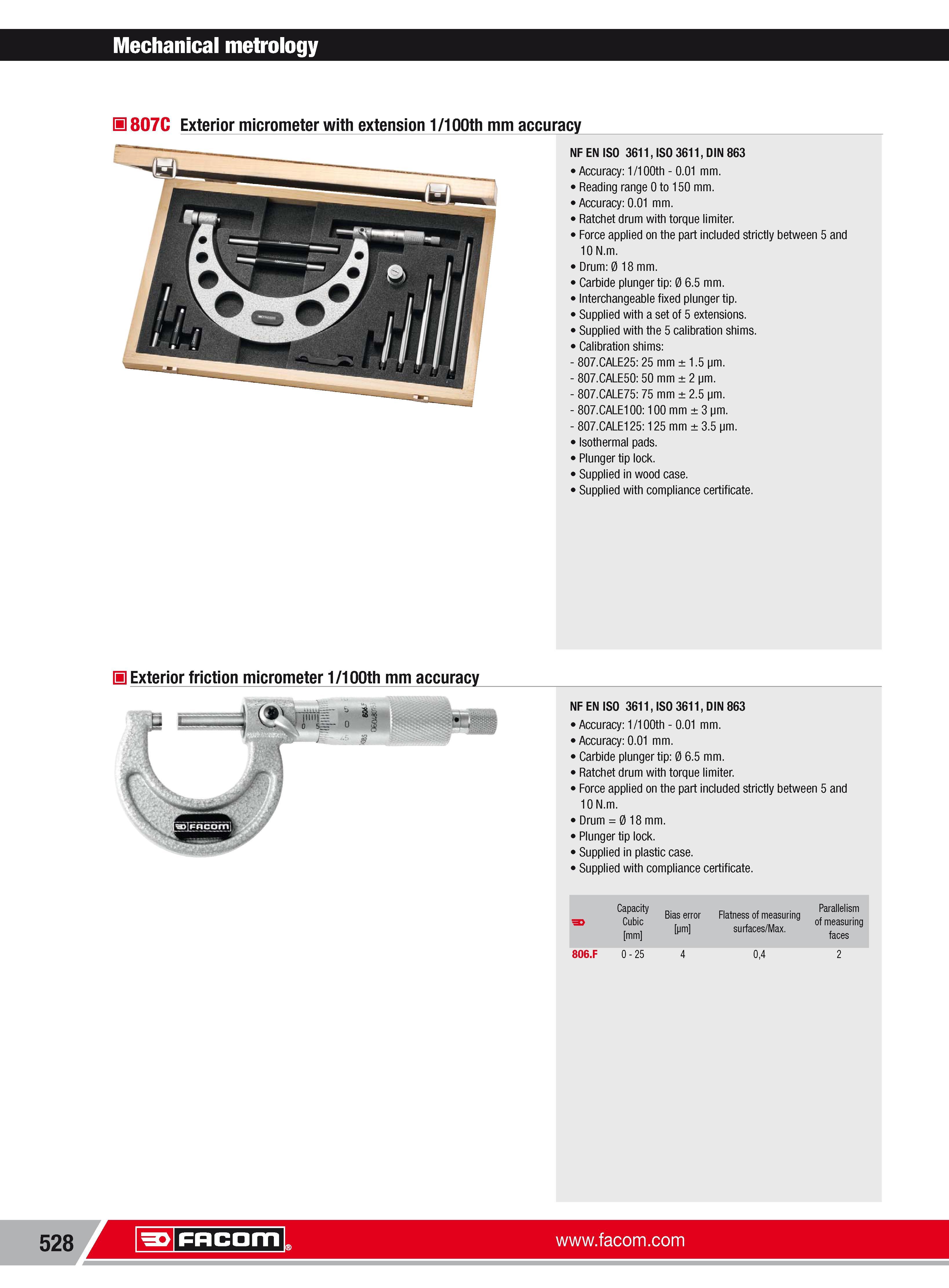

Mechanical metrology H 807C Exterior micrometer with extension 1 100th mm accuracy NF EN ISO 3611 ISO 3611 DIN 863 Accuracy 1 100th 0.01 mm. Reading range 0to150 mm. Accuracy 0.01 mm. Ratchet drum with torque limiter. Force applied on the part included strictly between 5 and 10N.m. Drum 0 18 mm. Carbide plunger tip 0 6.5 mm. Interchangeable fixed plunger tip. Supplied with a set of 5 extensions. Supplied with the 5 calibration shims. Calibration shims 807.CALE25:25 mm1.5 jm. 807.CALE50 50 mm2 pm. 807.CALE75 75 mm 2.5 pm. 807.CALE100:100mm3 pm. 807.CALE125:125 mm3.5 pm. Isothermal pads. Plunger tip lock. Supplied in wood case. Supplied with compliance certificate. H Exterior friction micrometer 1 100th mm accuracy S ( raTl1' 'WM r NF EN ISO 3611 ISO 3611 DIN 863 Accuracy 1 100th 0.01 mm. Accuracy 0.01 mm. Carbide plunger tip 0 6.5 mm. Ratchet drum with torque limiter. Force applied on the part included strictly between 5 and 10N.m. Drum 0 18 mm. Plunger tip lock. Supplied in plastic case. Supplied with compliance certificate. 806.F Capacity Cubic mm 0-25 Bias error Flatness of measuring pm surfaces Max. 4 04 Parallelism of measuring faces 2 528 Facom
