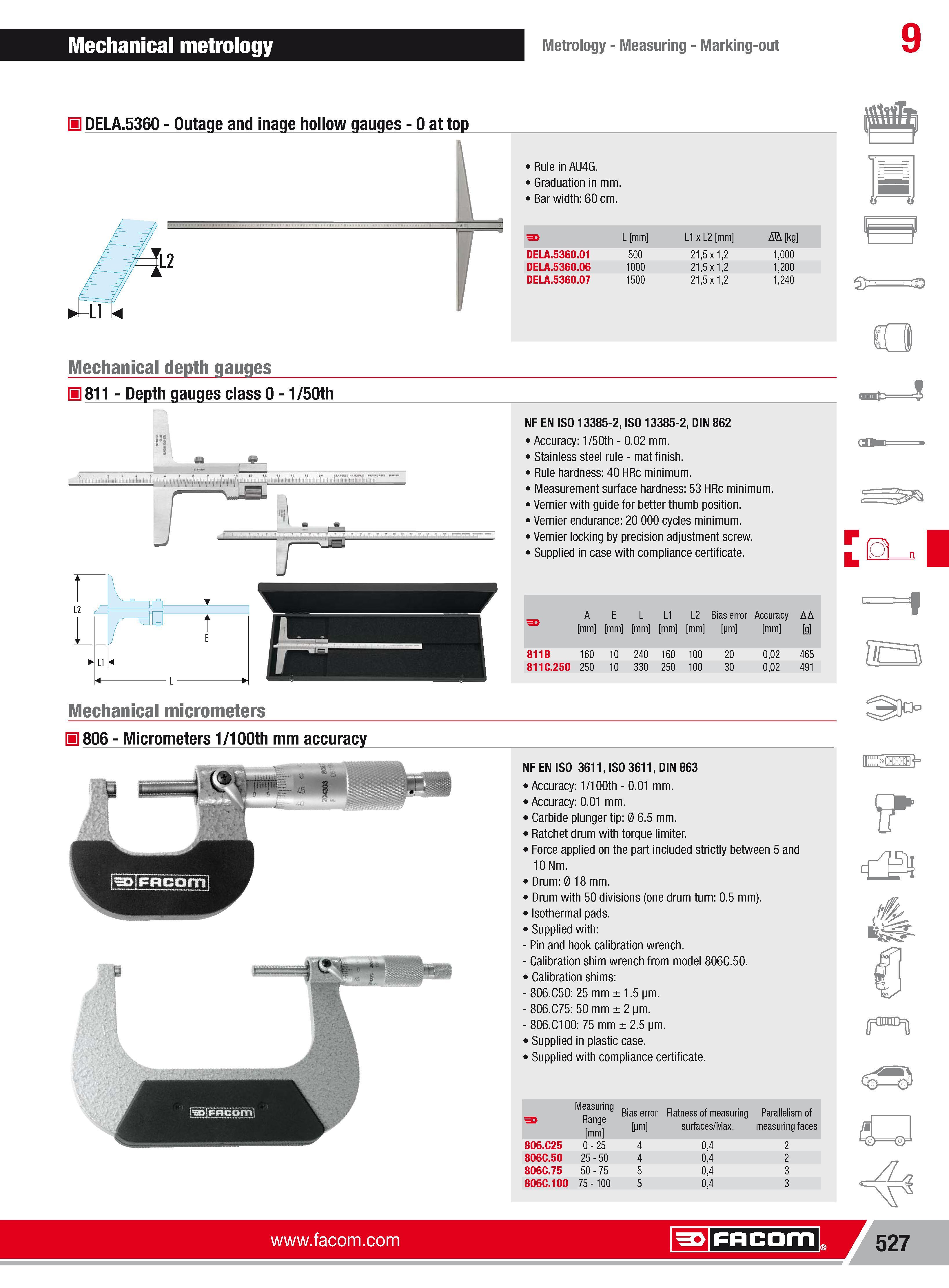

Mechanical metrology Metrology Measuring Marking-out 9 H DELA.5360 Outage and inage hollow gauges 0 at top Rule in AU4G. Graduation in mm. Barwidth:60 cm. 5 P 3 L mm L1 x L2 mm Nh kg DELA.5360.01 500 215x12 1000 DELA.5360.06 1000 215x12 1200 DELA.5360.07 1500 215x12 1240 Mechanical depth gauges 811 Depth gauges class 0 1 50th NF EN ISO 13385-2 ISO 13385-2 DIN 862 Accuracy 1 50th -0.02 mm. Stainless steel rule mat finish. Rule hardness 40 HRc minimum. Measurement surface hardness 53 HRc minimum. Vernier with guide for better thumb position. Vernier endurance 20 000 cycles minimum. Vernier locking by precision adjustment screw. Supplied in case with compliance certificate. r a i " Hnk V LI 4 A E L L1 L2 Bias error Accuracy Nh mm mm mm mm mm pm mm g 811B 160 10 240 160 100 20 002 465 811C.250 250 10 330 250 100 30 002 491 Mechanical micrometers 806 Micrometers 1 100th mm accuracy .-Jti i NF EN ISO 3611 ISO 3611 DIN 863 Accuracy 1 100th 0.01 mm. Accuracy 0.01 mm. Carbide plunger tip 0 6.5 mm. Ratchet drum with torque limiter. Force applied on the part included strictly between 5 and 10Nm. Drum 0 18 mm. Drum with 50 divisions (one drum turn 0.5 mm). Isothermal pads. Supplied with Pin and hook calibration wrench. Calibration shim wrench from model 806C.50. Calibration shims 806.C50 25 mm1.5 pm. 806.C75 50mm2 pm. 806.C100 75 mm 2.5 pm. Supplied in plastic case. Supplied with compliance certificate. Measuring Range mm Bias error pm Flatness of measuring surfaces Max. Parallelism of measuring faces 806.C25 0-25 4 04 2 806C.50 25-50 4 04 2 806C.75 50-75 5 04 3 806C.100 75 -100 5 04 3 Facom 527 Facom
