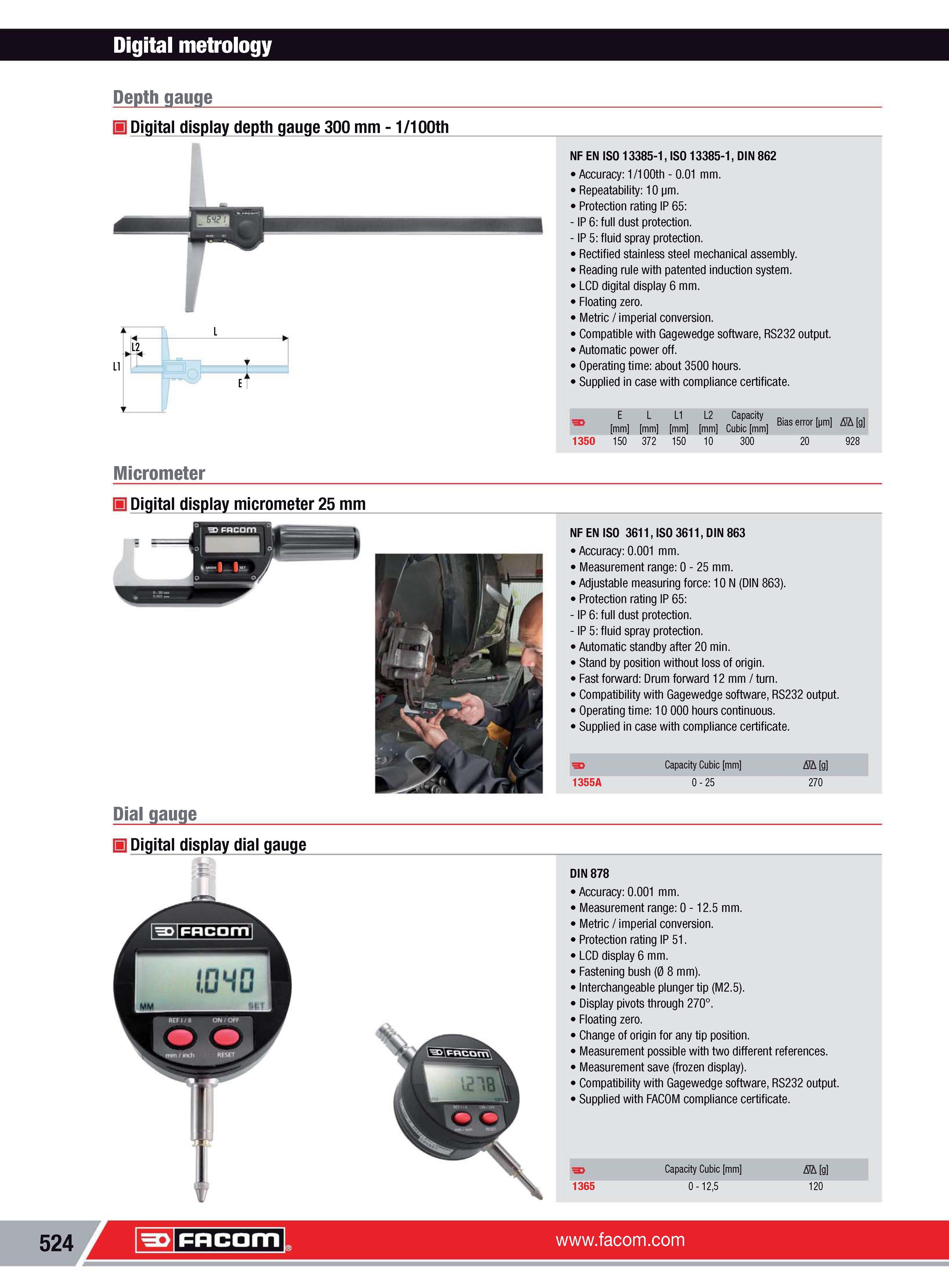

550 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.524

Каталог FACOM 2013 Инструмент Оборудование Стр. 524 0550 ENG Lab2u

Digital metrology Depth gauge H Digital display depth gauge 300 mm 1 100th L L2 1 A E NF EN ISO 13385-1 ISO 13385-1 DIN 862 Accuracy 1 100th 0.01 mm. Repeatability 10 pm. Protection rating IP 65 IP 6 full dust protection. IP 5 fluid spray protection. Rectified stainless steel mechanical assembly. Reading rule with patented induction system. LCD digital display 6 mm. Floating zero. Metric imperial conversion. Compatible with Gagewedge software RS232 output. Automatic power off. Operating time about 3500 hours. Supplied in case with compliance certificate. E mm 1350 150 L mm 372 L1 mm 150 L2 mm 10 Capacity Cubic mm 300 Bias error pm AS g 20 928 Micrometer S Digital display micrometer 25 mm NF EN ISO 3611 ISO 3611 DIN 863 Accuracy 0.001 mm. Measurement range 0 25 mm. Adjustable measuring force 10 N (DIN 863). Protection rating IP 65 IP 6 full dust protection. IP 5 fluid spray protection. Automatic standby after 20 min. Stand by position without loss of origin. Fast forward Drum forward 12mm turn. Compatibility with Gagewedge software RS232 output. Operating time 10 000 hours continuous. Supplied in case with compliance certificate. 1355A Capacity Cubic mm 0-25 g 270 Dialgauge L1 DIN 878 Accuracy 0.001 mm. Measurement range 0-12.5 mm. Metric imperial conversion. Protection rating IP 51. LCD display 6 mm. Fastening bush (0 8 mm). Interchangeable plunger tip (M2.5). Display pivots through 270. Floating zero. Change of origin for any tip position. Measurement possible with two different references. Measurement save (frozen display). Compatibility with Gagewedge software RS232 output. Supplied with FACOM compliance certificate. 3i Capacity Cubic mm y g 1365 0- 125 120 m Digital display dial gauge Facom m
