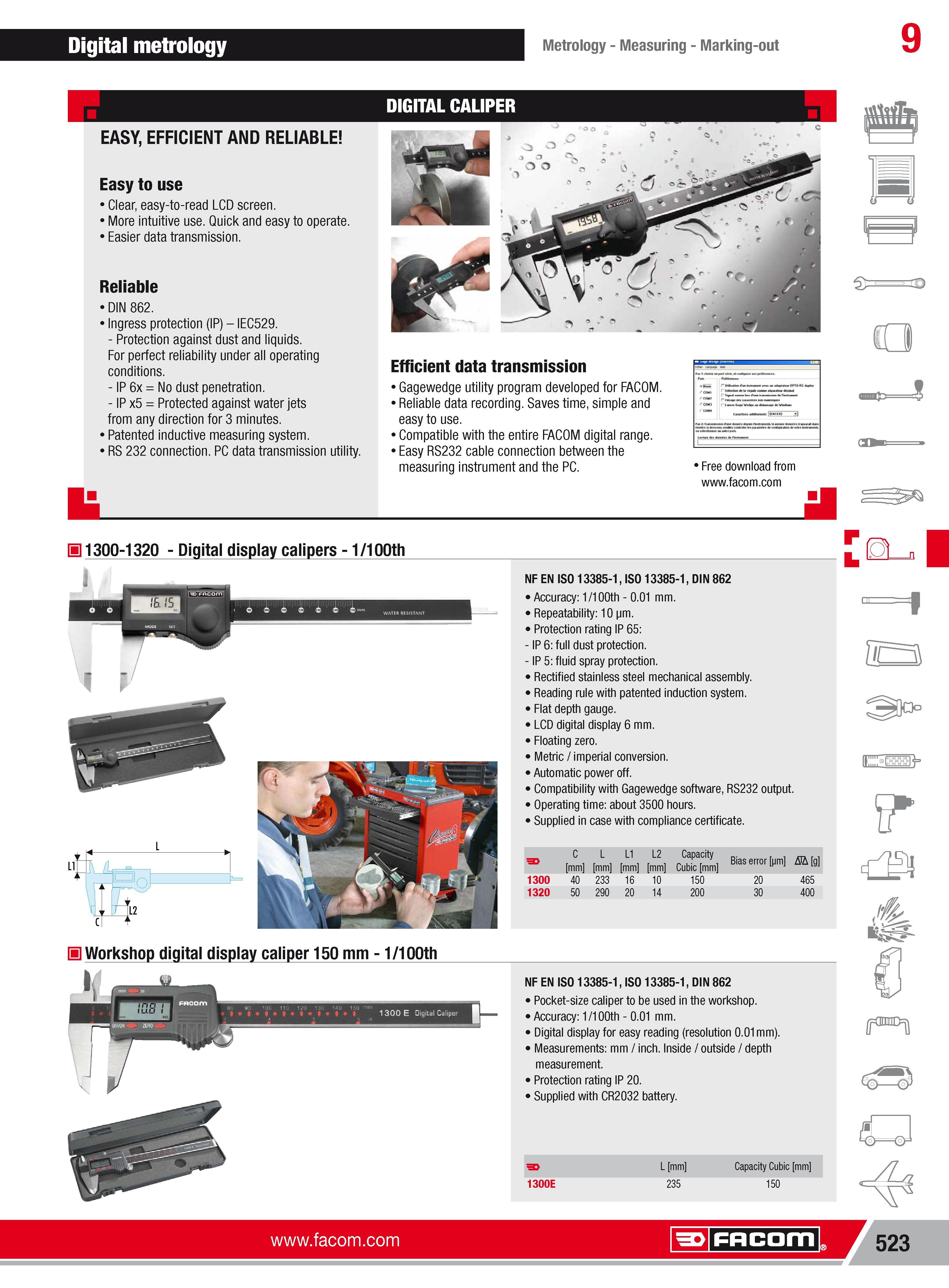

549 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.523

Каталог FACOM 2013 Инструмент Оборудование Стр. 523 0549 ENG Lab2u

Digital metrology Metrology Measuring Marking-out 9 DIGITAL CALIPER EASY EFFICIENT AND RELIABLE Easy to use Clear easy-to-read LCD screen. More intuitive use. Quick and easy to operate. Easier data transmission. Reliable DIN 862. Ingress protection (IP) IEC529. Protection against dust and liquids. For perfect reliability under all operating conditions. -IP6x No dust penetration. -IPx5 Protected against water jets from any direction for 3 minutes. Patented inductive measuring system. RS 232 connection. PC data transmission utility. Efficient data transmission Gagewedge utility program developed for FACOM. Reliable data recording. Saves time simple and easy to use. Compatible with the entire FACOM digital range. Easy RS232 cable connection between the measuring instrument and the PC. Free download from Facom H1300-1320 Digital display calipers 1 100th NF EN ISO 13385-1 ISO 13385-1 DIN 862 Accuracy 1 100th 0.01 mm. Repeatability 10 pm. Protection rating IP 65 IP 6 full dust protection. IP 5 fluid spray protection. Rectified stainless steel mechanical assembly. Reading rule with patented induction system. Flat depth gauge. LCD digital display 6 mm. Floating zero. Metric imperial conversion. Automatic power off. Compatibility with Gagewedge software RS232 output. Operating time about 3500 hours. Supplied in case with compliance certificate. C mm L mm L1 mm L2 mm Capacity Cubic mm Bias error pm J2 1300 40 233 16 10 150 20 465 1320 50 290 20 14 200 30 400 H Workshop digital display caliper 150 mm 1 100th r mm m Hi iH Facom litf L H 90 OC 11 j 1 0 Ij'i -tU ISO 1 300 E Digital Caliper 1 L. u ry Ml NF EN ISO 13385-1 ISO 13385-1 DIN 862 Pocket-size caliper to be used in the workshop. Accuracy 1 100th 0.01 mm. Digital display for easy reading (resolution 0.01mm). Measurements mm inch. Inside outside depth measurement. Protection rating IP 20. Supplied with CR2032 battery. 1300E L mm 235 Capacity Cubic mm 150 Facom 523 Facom
