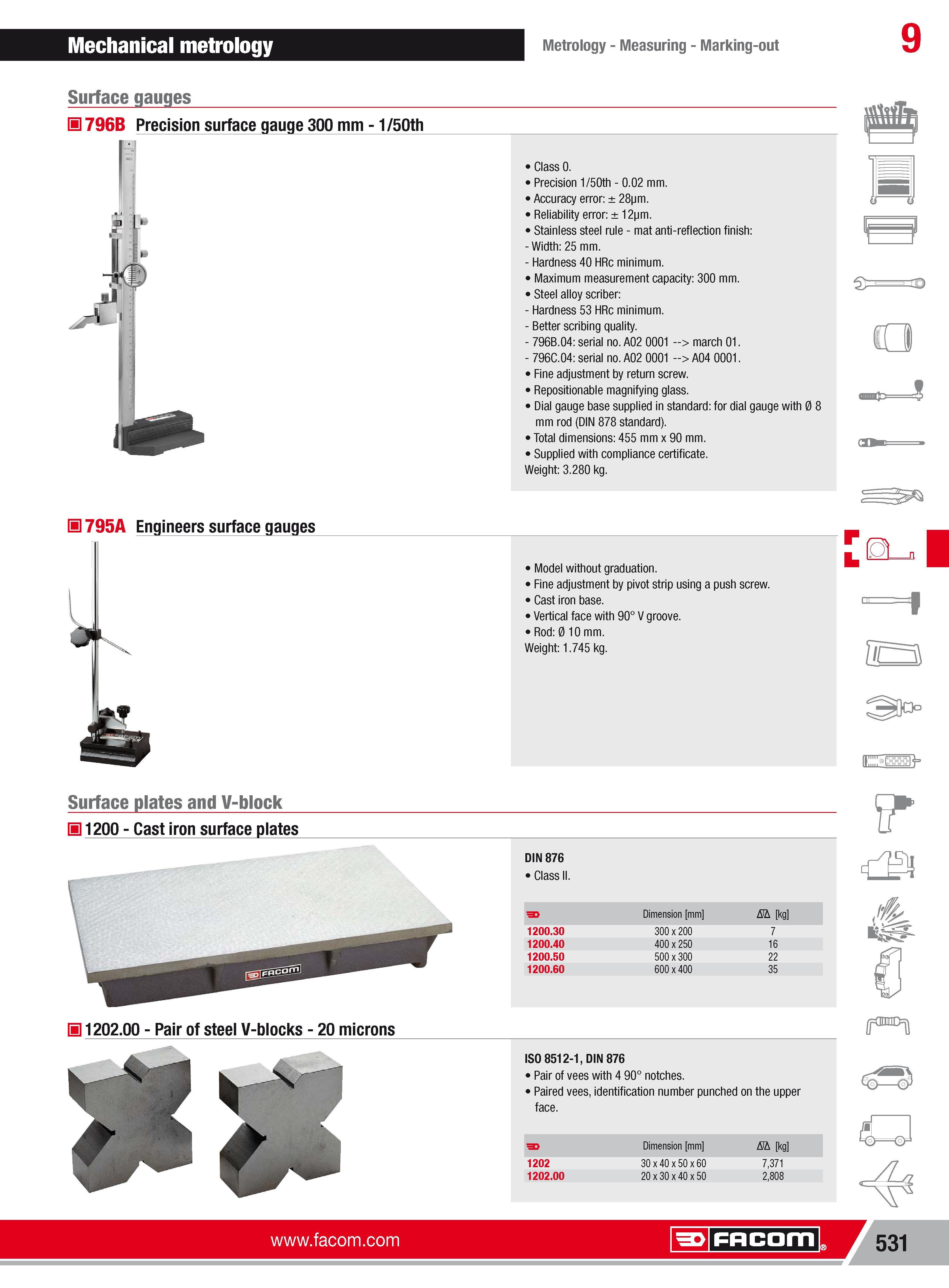

557 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.531

Каталог FACOM 2013 Инструмент Оборудование Стр. 531 0557 ENG Lab2u

Mechanical metrology Metrology Measuring Marking-out 9 Surface gauges H 796B Precision surface gauge 300 mm 1 50th H 795A Engineers surface gauges Class 0. Precision 1 50th 0.02 mm. Accuracy error 28pm. Reliability error 12pm. Stainless steel rule mat anti-reflection finish -Width 25 mm. Hardness 40 HRc minimum. Maximum measurement capacity 300 mm. Steel alloy scriber Hardness 53 HRc minimum. Better scribing quality. 796B.04 serial no. A02 0001 march 01. 796C.04 serial no. A02 0001 A04 0001. Fine adjustment by return screw. Repositionable magnifying glass. Dial gauge base supplied in standard for dial gauge with 0 mm rod (DIN 878 standard). Total dimensions 455 mm x 90 mm. Supplied with compliance certificate. Weight 3.280 kg. 4 cr- -Hr. Model without graduation. Fine adjustment by pivot strip using a push screw. Cast iron base. Vertical face with 90 V groove. Rod 0 10 mm. Weight 1.745 kg. Surface plates and V-block ID 1200 Cast iron surface plates H 1202.00 Pair of steel V-blocks 20 microns DIN 876 Class II ISO 8512-1 DIN 876 Pair of vees with 4 90 notches. Paired vees identification number punched on the upper face. Dimension mm Nh kg 1202 30x40x50x 60 7371 1202.00 20x30x40x 50 2808 Facom 531
