536 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.510

Каталог FACOM 2013 Инструмент Оборудование Стр. 510 0536 ENG Lab2u

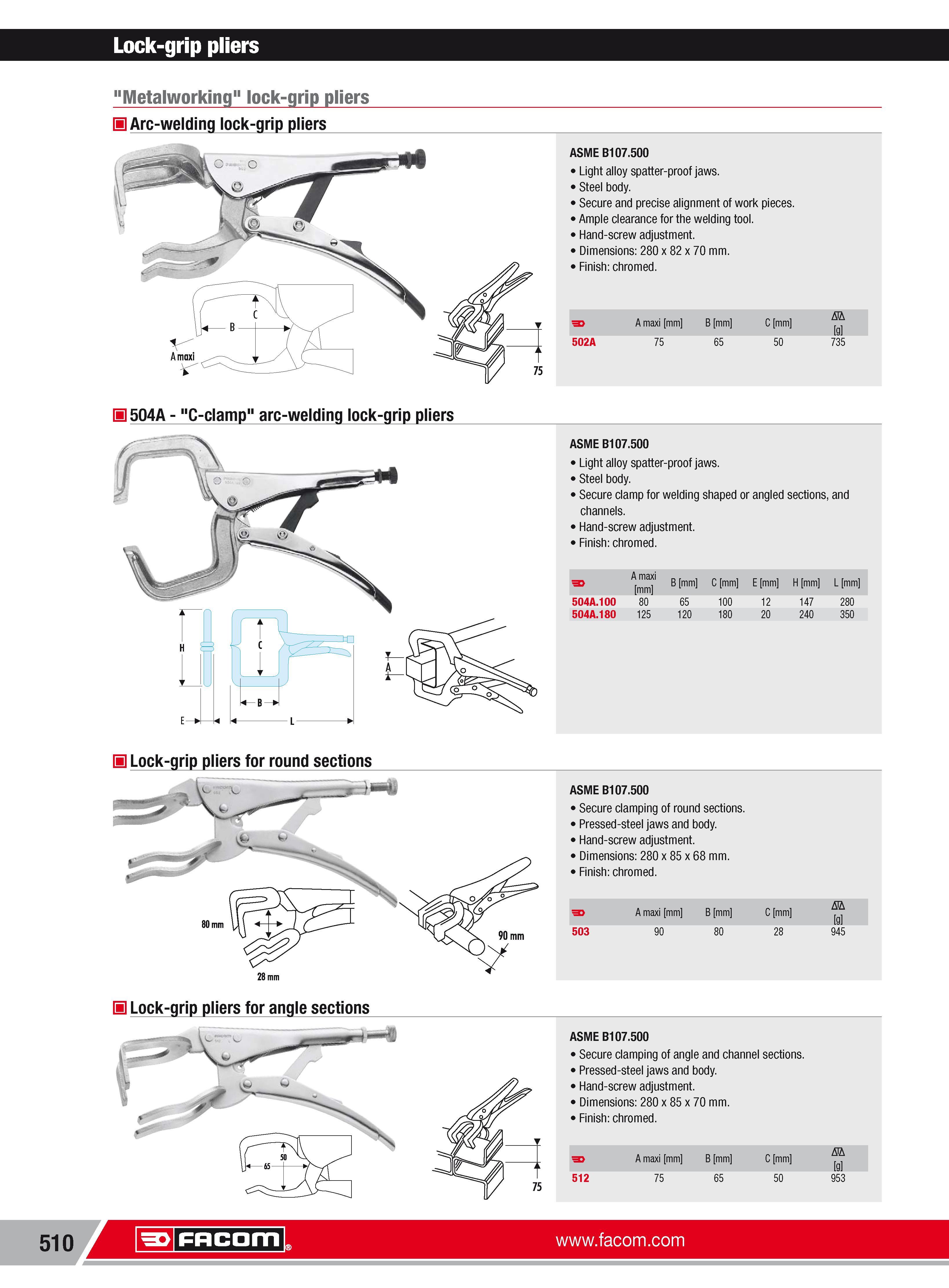

Lock-grip pliers "Metalworking" lock-grip pliers H Arc-welding lock-grip pliers ASME B107.500 Light alloy spatter-proofjaws. Steel body. Secure and precise alignment of work pieces. Ample clearance for the welding tool. Hand-screw adjustment. Dimensions 280 x82x70 mm. Finish chromed. A maxi mm B mm C mm Nh g 502A 75 65 50 735 504A "C-clamp" arc-welding lock-grip pliers ASME B107.500 Light alloy spatter-proofjaws. Steel body. Secure clamp for welding shaped or angled sections and channels. Hand-screw adjustment. Finish chromed. A maxi mm B mm C mm E mm H mm L mm 504A.100 80 65 100 12 147 280 504A.180 125 120 180 20 240 350 H Lock-grip pliers for round sections ASME B107.500 Secure clamping of round sections. Pressed-steel jaws and body. Hand-screw adjustment. Dimensions 280 x85x68 mm. Finish chromed. A maxi mm B mm C mm Nh g 503 90 80 28 945 H Lock-grip pliers for angle sections ASME B107.500 Secure clamping of angle and channel sections. Pressed-steel jaws and body. Hand-screw adjustment. Dimensions 280 x85x70 mm. Finish chromed. A maxi mm B mm C mm Nh g 512 75 65 50 953 510 Facom
