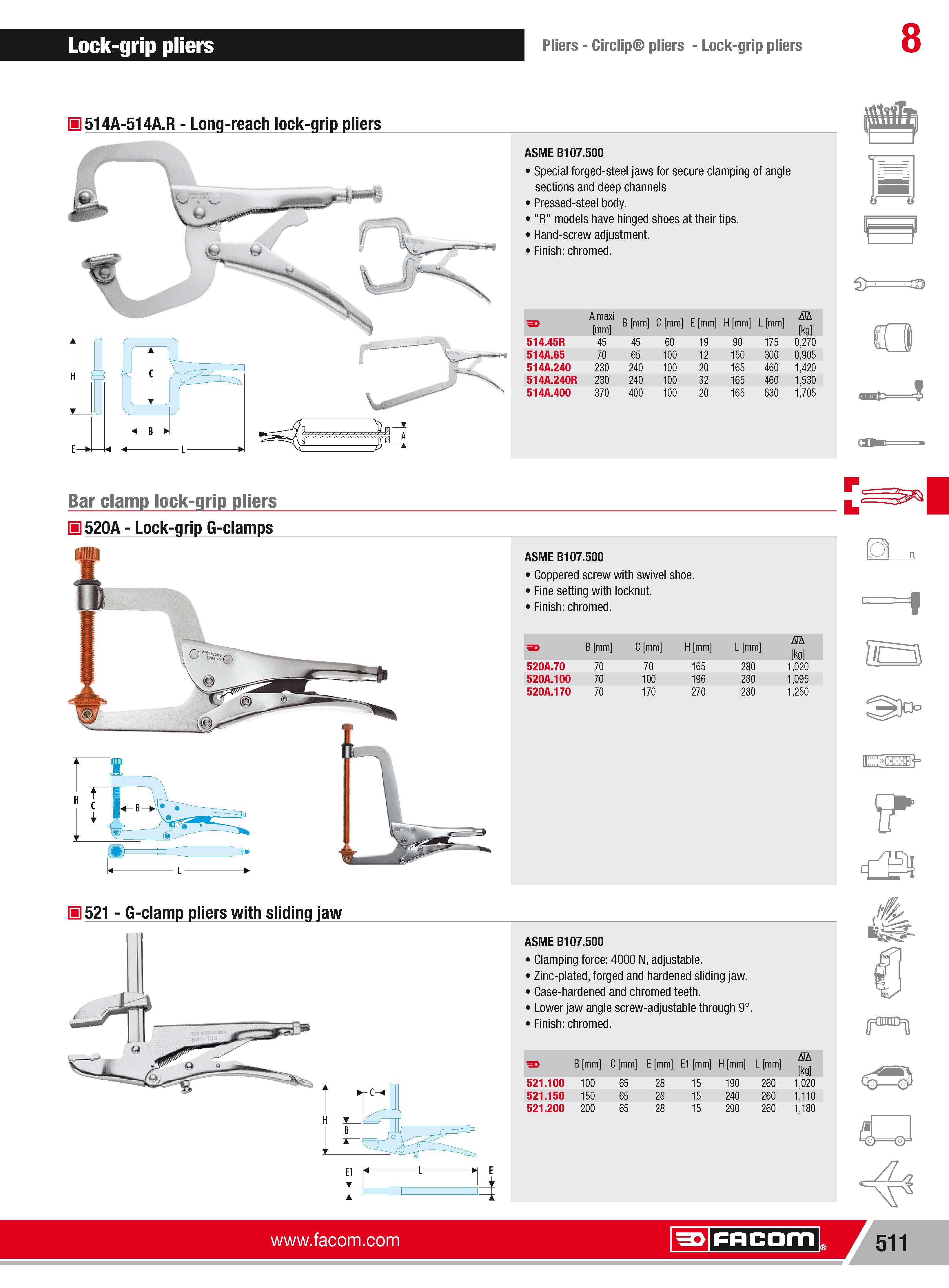

537 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.511

Каталог FACOM 2013 Инструмент Оборудование Стр. 511 0537 ENG Lab2u

Lock-grip pliers Pliers Circlip pliers Lock-grip pliers 8 514A-514A.R Long-reach lock-grip pliers ASME B107.500 Special forged-steel jaws for secure clamping of angle sections and deep channels Pressed-steel body. "R" models have hinged shoes at their tips. Hand-screw adjustment. Finish chromed. A maxi mm B mm C mm E mm H mm L mm AlA kg 514.45R 45 45 60 19 90 175 0270 514A.65 70 65 100 12 150 300 0905 514A.240 230 240 100 20 165 460 1420 514A.240R 230 240 100 32 165 460 1530 514A.400 370 400 100 20 165 630 1705 c 3 Bar clamp lock-grip pliers 520A Lock-grip G-clamps ASME B107.500 Coppered screw with swivel shoe. Fine setting with locknut. Finish chromed. 3 B mm C mm H mm L mm Nh kg 520A.70 70 70 165 280 1020 520A.100 70 100 196 280 1095 520A.170 70 170 270 280 1250 r 521 G-clamp pliers with sliding jaw B E 1 El p :i izr ASME B107.500 Clamping force 4000 N adjustable. Zinc-plated forged and hardened sliding jaw. Case-hardened and chromed teeth. Lowerjaw angle screw-adjustable through 9. Finish chromed. 3 B mm C mm E mm E1 mm H mm L mm AlA kg 521.100 100 65 28 15 190 260 1020 521.150 150 65 28 15 240 260 1110 521.200 200 65 28 15 290 260 1180 Facom 511 Facom
