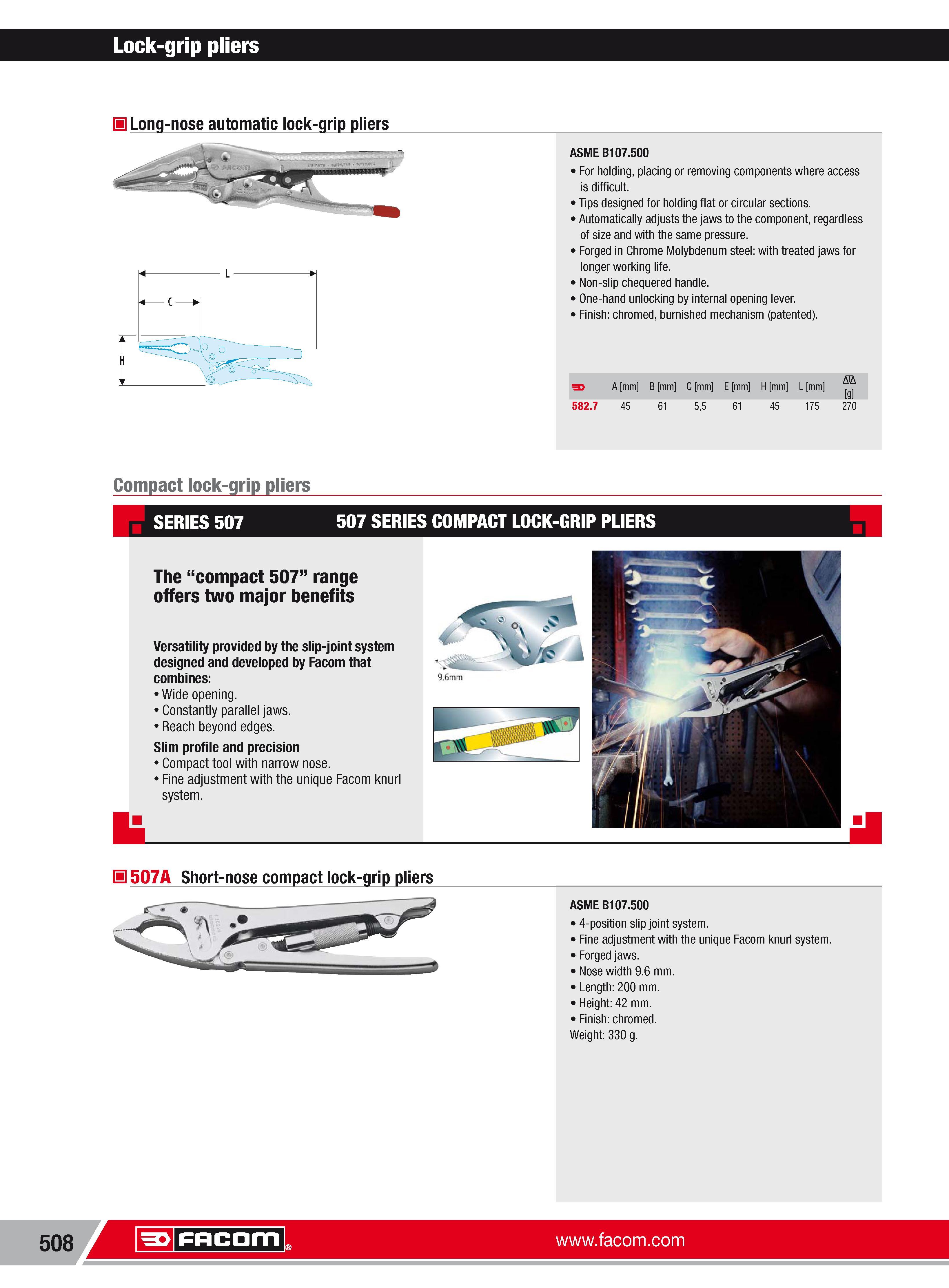

Lock-grip pliers H Long-nose automatic lock-grip pliers ASME B107.500 For holding placing or removing components where access is difficult. Tips designed for holding flat or circular sections. Automatically adjusts the jaws to the component regardless of size and with the same pressure. Forged in Chrome Molybdenum steel with treated jaws for longer working life. Non-slip chequered handle. One-hand unlocking by internal opening lever. Finish chromed burnished mechanism (patented). A mm B mm C mm E mm H mm L mm iyj 582.7 45 61 55 61 45 175 270 Compact lock-grip pliers SERIES 507 507 SERIES COMPACT LOCK-GRIP PLIERS The compact 507 range offers two major benefits Versatility provided by the slip-joint system designed and developed by Facom that combines Wide opening. Constantly parallel jaws. Reach beyond edges. Slim profile and precision Compact tool with narrow nose. Fine adjustment with the unique Facom knurl system. H 507A Short-nose compact lock-grip pliers ASME B107.500 4-position slip joint system. Fine adjustment with the unique Facom knurl system. Forged jaws. Nose width 9.6 mm. Length 200 mm. Height 42 mm. Finish chromed. Weight 330 g. 508 Facom
