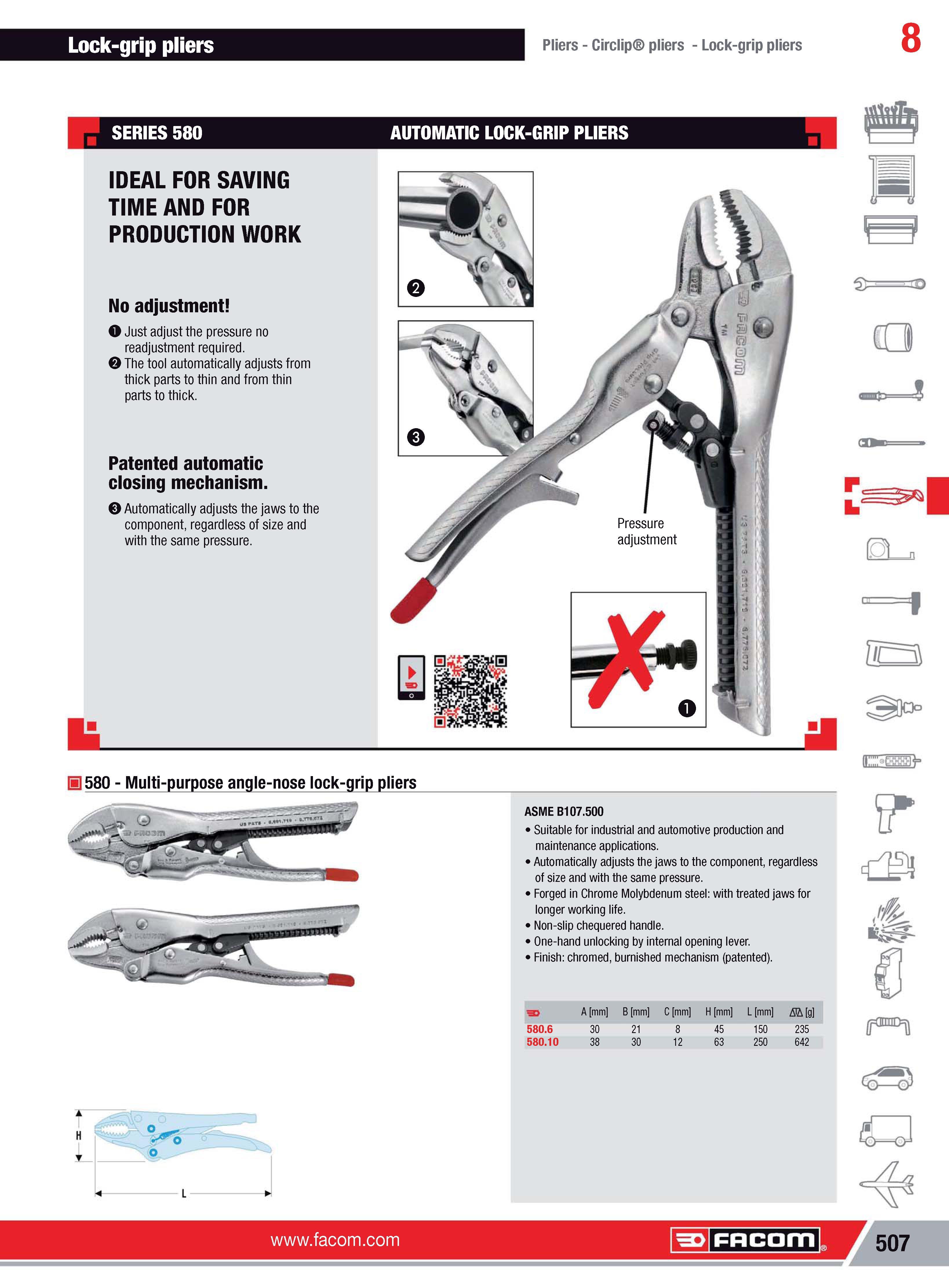

Lock-grip pliers Pliers Circlip pliers Lock-grip pliers 8 SERIES 580 AUTOMATIC LOCK-GRIP PLIERS ill IDEAL FOR SAVING TIME AND FOR PRODUCTION WORK No adjustment o Just adjust the pressure no readjustment required. 0 The tool automatically adjusts from thick parts to thin and from thin parts to thick. Patented automatic closing mechanism. Automatically adjusts the jaws to the component regardless of size and with the same pressure. 580 Multi-purpose angle-nose lock-grip pliers ASME B107.500 Suitable for industrial and automotive production and maintenance applications. Automatically adjusts the jaws to the component regardless of size and with the same pressure. Forged in Chrome Molybdenum steel with treated jaws for longer working life. Non-slip chequered handle. One-hand unlocking by internal opening lever. Finish chromed burnished mechanism (patented). 580.6 580.10 A mm 30 38 B mm 21 30 C mm 12 H mm 45 63 L mm 150 250 g 235 642 A K Y o 7 mrn 507 Facom
