535 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.509

Каталог FACOM 2013 Инструмент Оборудование Стр. 509 0535 ENG Lab2u

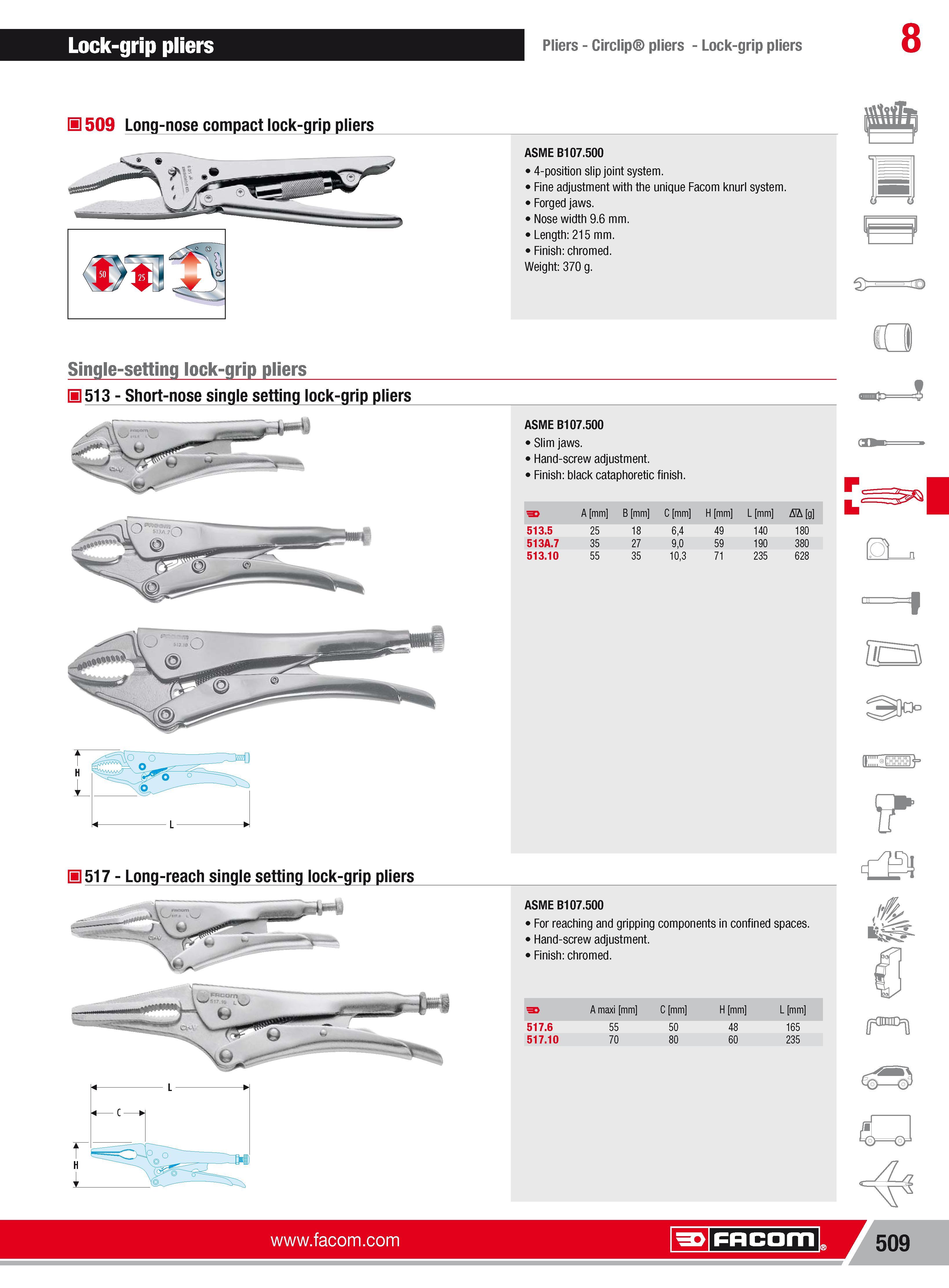

Lock-grip pliers Pliers Circlip pliers Lock-grip pliers 8 H 509 Long-nose compact lock-grip pliers Single-setting lock-grip pliers 513 Short-nose single setting lock-grip pliers 517 Long-reach single setting lock-grip pliers ASME B107.500 4-position slip joint system. Fine adjustment with the unique Facom knurl system. Forged jaws. Nose width 9.6 mm. Length 215 mm. Finish chromed. Weight 370 g. ASME B107.500 Slim jaws. Hand-screw adjustment. Finish black cataphoretic finish. A mm B mm C mm H mm L mm Nh g 513.5 25 18 64 49 140 180 513A.7 35 27 90 59 190 380 513.10 55 35 103 71 235 628 ASME B107.500 For reaching and gripping components in confined spaces. Hand-screw adjustment. Finish chromed. Facom 4 cr- -Hr. A maxi mm C mm H mm L mm 517.6 55 50 48 165 517.10 70 80 60 235 509
