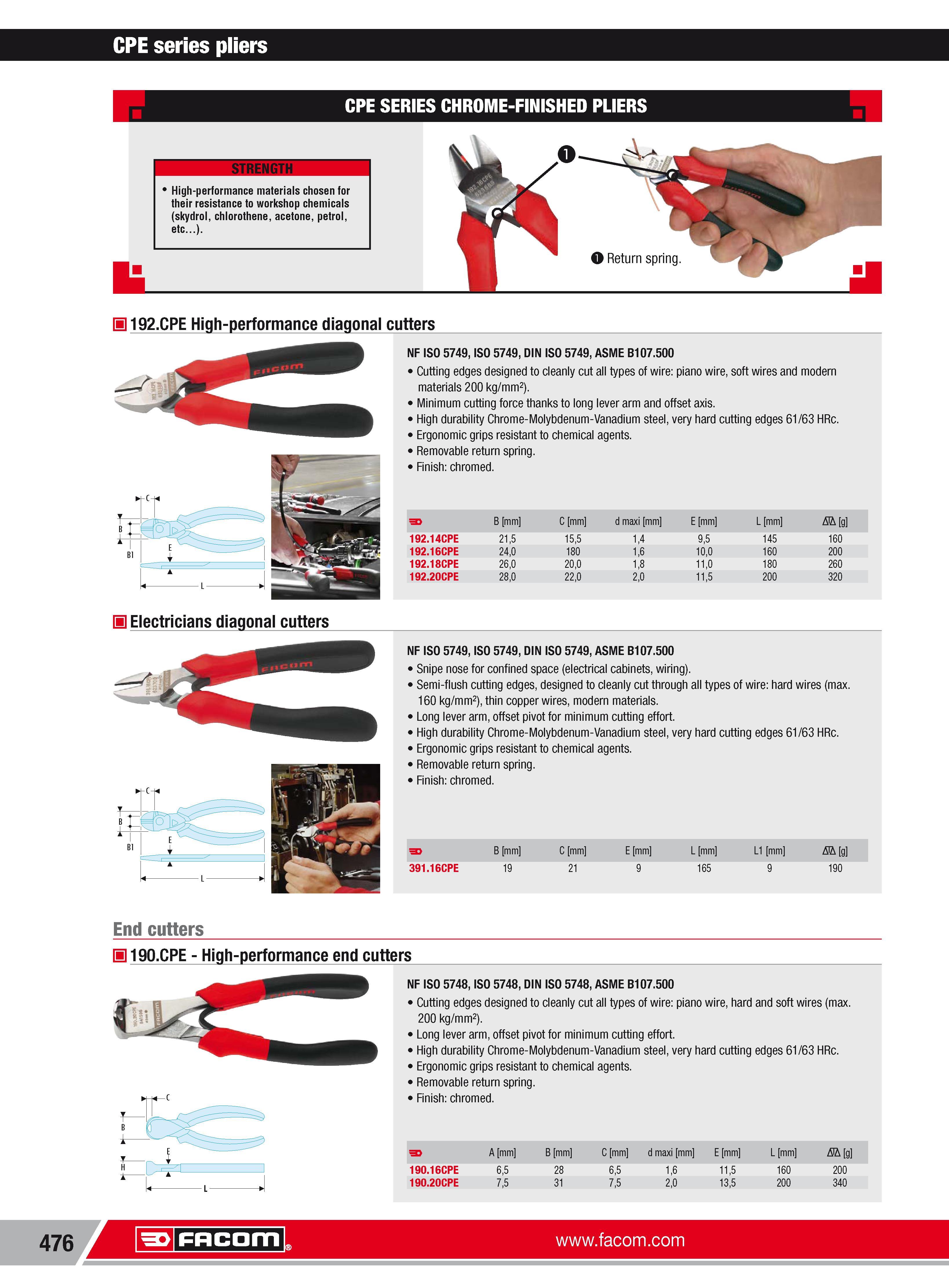

CPE series pliers CPE SERIES CHROME-FINISHED PLIERS STRENGTH High-performance materials chosen for their resistance to workshop chemicals (skydrol chlorothene acetone petrol etc...). 192.CPE High-performance diagonal cutters NF ISO 5749 ISO 5749 DIN ISO 5749 ASME B107.500 Cutting edges designed to cleanly cut all types of wire piano wire soft wires and modern materials 200 kg mm2). Minimum cutting force thanks to long lever arm and offset axis. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. H Electricians diagonal cutters NF ISO 5749 ISO 5749 DIN ISO 5749 ASME B107.500 Snipe nose for confined space (electrical cabinets wiring). Semi-flush cutting edges designed to cleanly cut through all types of wire hard wires (max. 160 kg mm2) thin copperwires modern materials. Long lever arm offset pivot for minimum cutting effort. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 391.16CPE B mm 19 C mm 21 E mm 9 L mm 165 L1 mm 9 M g 190 End cutters 190.CPE High-performance end cutters NF ISO 5748 ISO 5748 DIN ISO 5748 ASME B107.500 Cutting edges designed to cleanly cut all types of wire piano wire hard and soft wires (max. 200 kg mm2). Long lever arm offset pivot for minimum cutting effort. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 3 A mm B mm C mm d maxi mm E mm L mm M g 190.16CPE 65 28 65 16 115 160 200 190.20CPE 75 31 75 20 135 200 340 476 Facom
